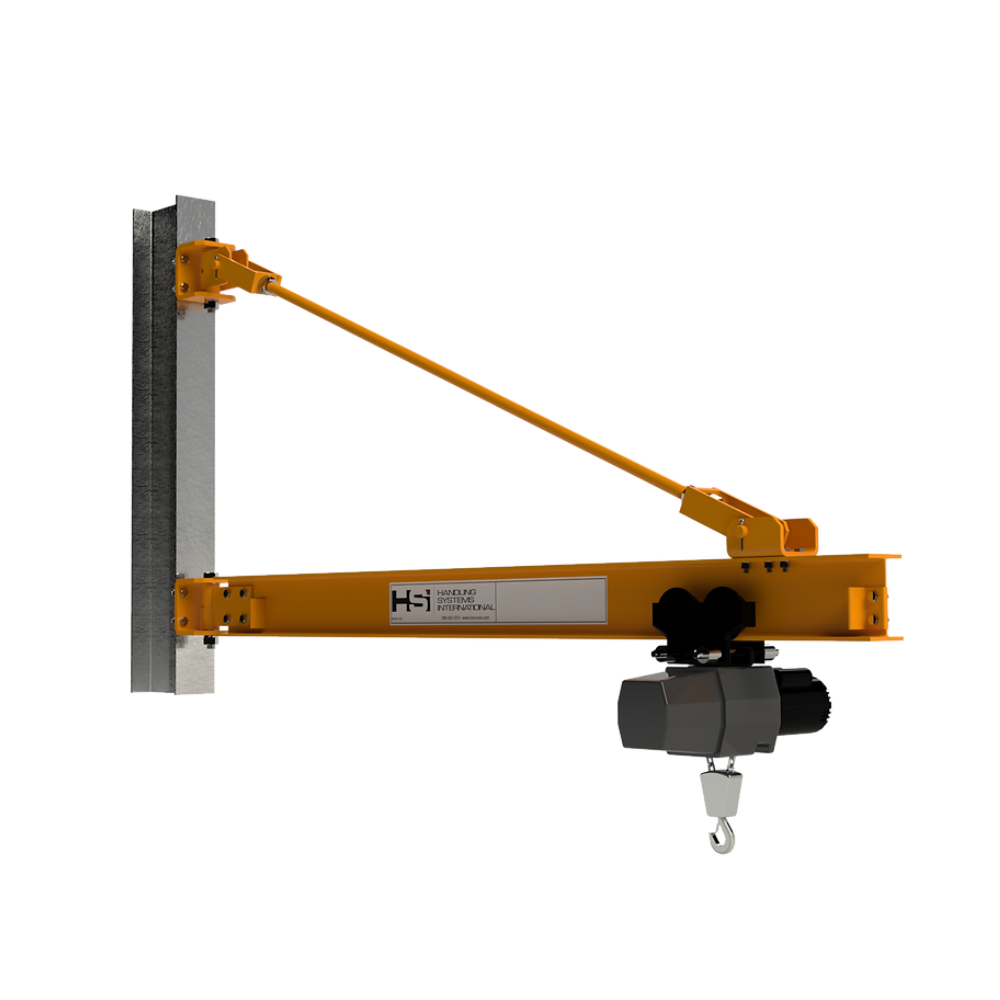

HSI 3000lbs Tie Rod Style Wall/Column Mounted Jib Crane
HSI 3000lbs Tie Rod Style Wall/Column Mounted Jib Crane
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
If you’re facility is lacking in available floor space, but you need a heavy-duty lifting solution such as a jib crane, HSI’s Tie Rod Style models can be easily mounted on walls and columns, anywhere across your workplace.
Primarily designed for use in bays, along walkways, and in work cells, the heavy-duty tie rod style jib crane is similar to the cantilever style models but is more economical for scenarios where headroom is not an issue.
This particular model has a working load limit of 3000lbs and is available in spans up to 20ft* as standard. Designed to provide 180-degree rotation as standard, courtesy of the heavy-duty cast iron fittings with smooth roller bearings, HSI’s Model 311 range has many benefits over the Cantilever Style:
- More economical
- Less beam deflection
- Smaller beam size
- Easier rotation in larger applications
- Hook travel closer to mounting column
- Easier adjustment of boom tip
All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.
For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.
NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately Pricing is for Tie Rod Style Jib Crane ONLY! Please see related products below.
Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist
*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.
Part Number |
MODEL |
Capacity (Lbs.) |
Span (Ft.) |
Beam Size |
Flange Width |
Fitting Centers |
Weight |
Thrust & Pull |
Fitting Number |
311-3000-8 |
311 |
3000 |
8 |
W8X21 |
5 1/4" |
2'-9" |
378 |
10650 |
2000 Series |
311-3000-9 |
311 |
3000 |
9 |
W8X21 |
5 1/4" |
3'-3" |
405 |
10180 |
2000 Series |
311-3000-10 |
311 |
3000 |
10 |
W8X21 |
5 1/4" |
3'-3" |
431 |
11307 |
2000 Series |
311-3000-11 |
311 |
3000 |
11 |
W10X26 |
5 3/4" |
4'-0" |
544 |
10150 |
2000 Series |
311-3000-12 |
311 |
3000 |
12 |
W10X26 |
5 3/4" |
4'-0" |
569 |
11070 |
2000 Series |
311-3000-13 |
311 |
3000 |
13 |
W10X26 |
5 3/4" |
4'-9" |
603 |
10140 |
2000 Series |
311-3000-14 |
311 |
3000 |
14 |
W10X26 |
5 3/4" |
4'-9" |
636 |
10920 |
2000 Series |
311-3000-15 |
311 |
3000 |
15 |
W10X26 |
5 3/4" |
5'-6" |
723 |
10145 |
2000 Series |
311-3000-16 |
311 |
3000 |
16 |
W10X26 |
5 3/4" |
5'-6" |
810 |
10825 |
2000 Series |
311-3000-17 |
311 |
3000 |
17 |
W12X35 |
6 1/2" |
6'-3" |
855 |
10160 |
2000 Series |
311-3000-18 |
311 |
3000 |
18 |
W12X35 |
6 1/2" |
6'-3" |
887 |
10760 |
2000 Series |
311-3000-19 |
311 |
3000 |
19 |
W12X35 |
6 1/2" |
7'-0" |
900 |
10180 |
2000 Series |
311-3000-20 |
311 |
3000 |
20 |
W12X35 |
6 1/2" |
7'-0" |
912 |
10715 |
2000 Series |
311-3000-21 |
311 |
3000 |
21 |
W10x39 |
8" |
7'-0" |
1127 |
18300 |
3000 Series |
311-3000-22 |
311 |
3000 |
22 |
W10x39 |
8" |
7'-0" |
1127 |
18300 |
3000 Series |
311-3000-23 |
311 |
3000 |
23 |
W10x39 |
8" |
7'-6" |
1220 |
18840 |
3000 Series |
311-3000-24 |
311 |
3000 |
24 |
W10x39 |
8" |
7'-6" |
1220 |
18840 |
3000 Series |
311-3000-25 |
311 |
3000 |
25 |
W10x39 |
8" |
8'-0" |
1323 |
19330 |
3000 Series |
311-3000-26 |
311 |
3000 |
26 |
W10x39 |
8" |
8'-0" |
1323 |
19330 |
3000 Series |
311-3000-27 |
311 |
3000 |
27 |
W18x46 |
6" |
9'-0" |
1424 |
18690 |
3000 Series |
311-3000-28 |
311 |
3000 |
28 |
W18x46 |
6" |
9'-0" |
1424 |
18690 |
3000 Series |
311-3000-29 |
311 |
3000 |
29 |
W18x46 |
6" |
10'-0" |
1526 |
18190 |
3000 Series |
311-3000-30 |
311 |
3000 |
30 |
W18x46 |
6" |
10'-0" |
1526 |
18190 |
3000 Series |
NOTE: The above drawing is an example drawing, and is only used for the purpose of illustrating the span. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
