Home / HSI 500lbs Heavy-Duty Foundationless Freestanding Jib Cranes (15ft - 20ft Span)

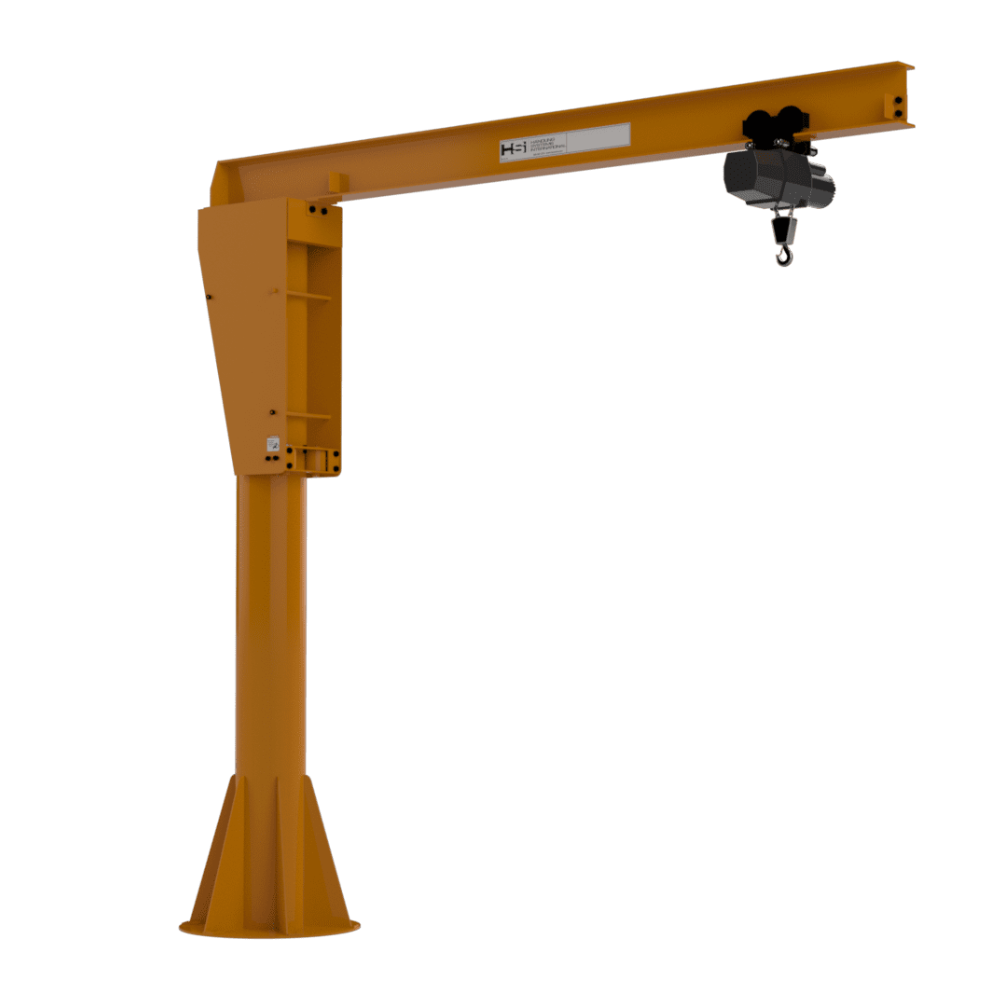

HSI 500lbs Heavy-Duty Foundationless Freestanding Jib Cranes (15ft - 20ft Span)

HSI 500lbs Heavy-Duty Foundationless Freestanding Jib Cranes (15ft - 20ft Span)

HSI 500lbs Heavy-Duty Foundationless Freestanding Jib Cranes (15ft - 20ft Span)

$5,387.14

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 500lbs
  • Span Options: 15ft - 20ft
  • Height Under Boom Options: 8ft – 20ft
  • Freestanding Design
  • 360-Degree Rotation
  • Fully Tested & Certified

Customers Also Bought

Description

Features & Specification

Some lifting operations require nothing but a heavy-duty solution to undertake them efficiently and safely. But we understand that space in your facility may often be at a premium, and a large jib Crane system can not always be installed where needed.

Well, thanks to HSI’s innovative and expert design, this Foundationless Jib Crane could be the answer to your prayers.

WHAT IS A FOUNDATIONLESS JIB CRANE?

A foundationless jib crane, often known as a slab-mounted jib crane system, can be simply bolted to reinforced concrete, meaning that no special foundation needs to be prior poured.

Foundationaless swing arm cranes can practically be installed almost anywhere on your site, and can be easily relocated if ever required – what’s better than having a choice?

IMPORTANT INFORMATION: It is recommended that foundationless jib cranes be mounted on reinforced concrete with a minimum depth of 6” avoiding any gaps, cracks, or expansion joints (within a given area, size of area should be determined by a qualified engineer). Anchor bolts must have a 4 ¾” minimum embedment.

DISClAIMER: It is not the responsibility of LES or HSI to verify the suitability of a floor or structure to which this product is mounted. Prior to mounting, it is required that the end user seek advice from a qualified engineer.



ABOUT THIS MODEL

Capable of handling loads of up to 500lbs, a wide range of specifications are available, with over all span options from 15ft – 20ft, and under boom heights from 8ft right up to 20ft – simply selection your preferred options from the dropdown menu above.

Offering the same features as the classic heavy-duty swing arm crane system from HIS, but with the added benefits of being able to bolt directly into reinforced concrete, this pillar-base model boasts smooth 360-degree rotation, and has been built-to-last, even when put through the rigors of constant and excess usage.



HSI’s heavy-duty Jib Crane includes:

  • A heavy-duty assembly with reinforcing side plates
  • Full plate style gussets for maximum load distribution
  • Heavy duty top thrust bearings with pressure fitted housing for easy rotation
  • Heavy duty roller cage; steel rollers with low friction bearings; adjustable tension bolts; keeper bar; and zerk fittings
  • Anti-slip angles to prevent head removal from accidental impact, and spacer rods to prevent head assembly plate flexing



All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist





Downloads
  • Model 351 Jib Crane Owners Manual

  • EXAMPLE - Model 351F Technical Drawing



For model specific technical drawings and specifications, please contact our sales team with the required product code

NOTEThe above drawing is an example drawing, and is only used for the purpose of illustrating the span, height under boom, and overall height. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
