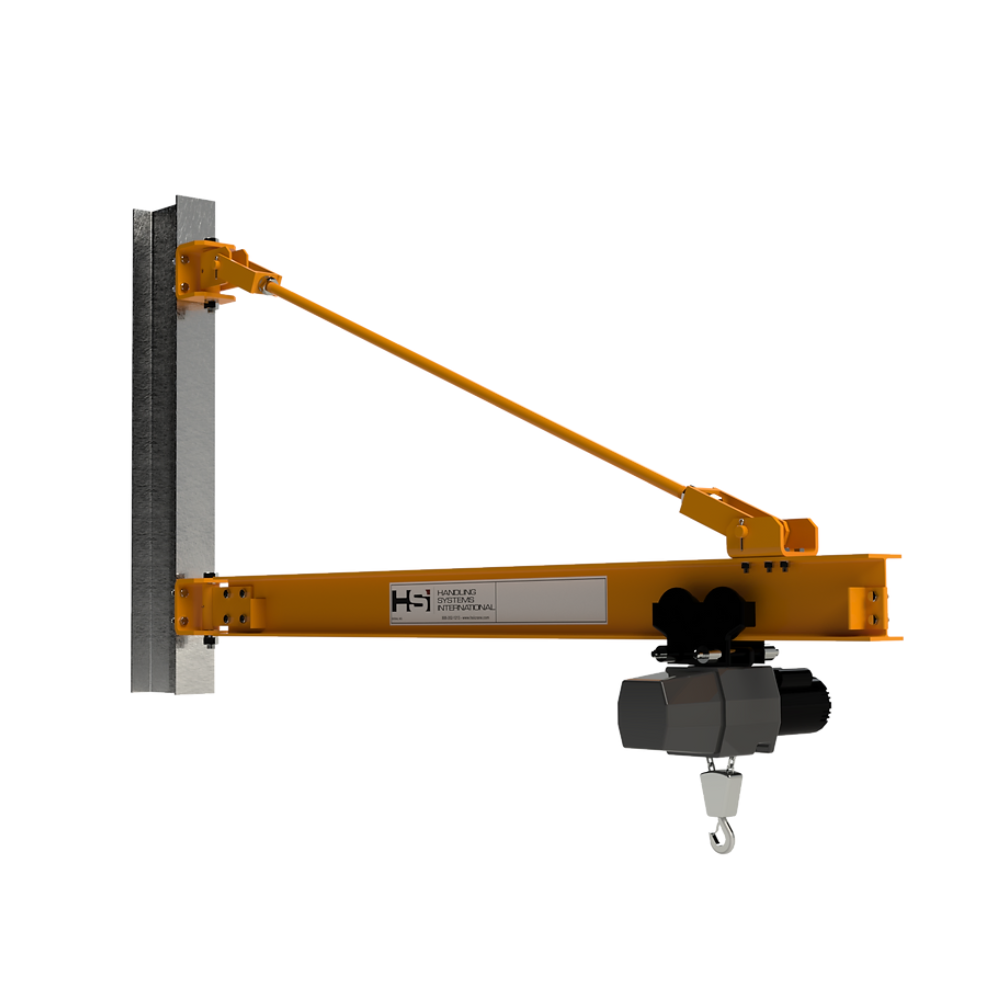

HSI 6000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 6000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 6000lbs Tie Rod Style Wall/Column Mounted Jib Crane

$2,706.57

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 6000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Beam Deflection than Cantilever Style
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If you’re facility is lacking in available floor space, but you need a heavy-duty lifting solution such as a jib crane, HSI’s Tie Rod Style models can be easily mounted on walls and columns, anywhere across your workplace.

Primarily designed for use in bays, along walkways, and in work cells, the heavy-duty tie rod style jib crane is similar to the cantilever style models but is more economical for scenarios where headroom is not an issue.

This particular model has a working load limit of 6000lbs and is available in spans up to 20ft* as standard. Designed to provide 180-degree rotation as standard, courtesy of the heavy-duty cast iron fittings with smooth roller bearings, HSI’s Model 311 range has many benefits over the Cantilever Style:

  • More economical
  • Less beam deflection
  • Smaller beam size
  • Easier rotation in larger applications
  • Hook travel closer to mounting column
  • Easier adjustment of boom tip

All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately Pricing is for Tie Rod Style Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.

Downloads
  • HSI Model 311 Tie Rod Style Wall/Column Mounted Jib Crane Owners Manual

  • HSI Jib Crane Accessories

  • EXAMPLE - Model 311 Drawing

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311-6000-8

311

6000

8

W12X35

6 1/2"

2'-9"

700

21300

3000 Series

311-6000-9

311

6000

9

W12X35

6 1/2"

3'-3"

715

20520

3000 Series

311-6000-10

311

6000

10

W12X35

6 1/2"

3'-3"

730

22800

3000 Series

311-6000-11

311

6000

11

W12X35

6 1/2"

4'-0"

745

20625

3000 Series

311-6000-12

311

6000

12

W12X35

6 1/2"

4'-0"

760

22500

3000 Series

311-6000-13

311

6000

13

W12X35

6 1/2"

4'-9"

775

20615

3000 Series

311-6000-14

311

6000

14

W12X35

6 1/2"

4'-9"

790

22200

3000 Series

311-6000-15

311

6000

15

W12X35

6 1/2"

5'-6"

805

20670

3000 Series

311-6000-16

311

6000

16

W12X35

6 1/2"

5'-6"

820

22050

3000 Series

311-6000-17

311

6000

17

W12X35

6 1/2"

6'-3"

850

20683

3000 Series

311-6000-18

311

6000

18

W12X35

6 1/2"

6'-3"

880

21900

3000 Series

311-6000-19

311

6000

19

W12X35

6 1/2"

7'-0"

1070

20710

3000 Series

311-6000-20

311

6000

20

W12X35

6 1/2"

7'-0"

1260

21800

3000 Series

311-6000-21

311

6000

21

W18x46

6"

7'-9"

1246

24120

4000 Series

311-6000-22

311

6000

22

W18x46

6"

7'-9"

1246

24120

4000 Series

311-6000-23

311

6000

23

W18x46

6"

8'-6"

1341

24200

4000 Series

311-6000-24

311

6000

24

W18x46

6"

8'-6"

1341

24200

4000 Series

311-6000-25

311

6000

25

W16x57

7 1/8"

9'-3"

1443

24290

4000 Series

311-6000-26

311

6000

26

W16x57

7 1/8"

9'-3"

1443

24290

4000 Series

311-6000-27

311

6000

27

W16x57

7 1/8"

10'-0"

1542

24380

4000 Series

311-6000-28

311

6000

28

W16x57

7 1/8"

10'-0"

1542

24380

4000 Series

311-6000-29

311

6000

29

W16x57

7 1/8"

11'-0"

1643

23920

4000 Series

311-6000-30

311

6000

30

W16x57

7 1/8"

11'-0"

1643

23920

4000 Series







NOTEThe above drawing is an example drawing, and is only used for the purpose of illustrating the span. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
