Home / HSI 8000lbs Cantilever Style Jib Crane

HSI 8000lbs Cantilever Style Jib Crane

HSI 8000lbs Cantilever Style Jib Crane

HSI 8000lbs Cantilever Style Jib Crane

$7,742.71

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 8000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Headroom Required
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

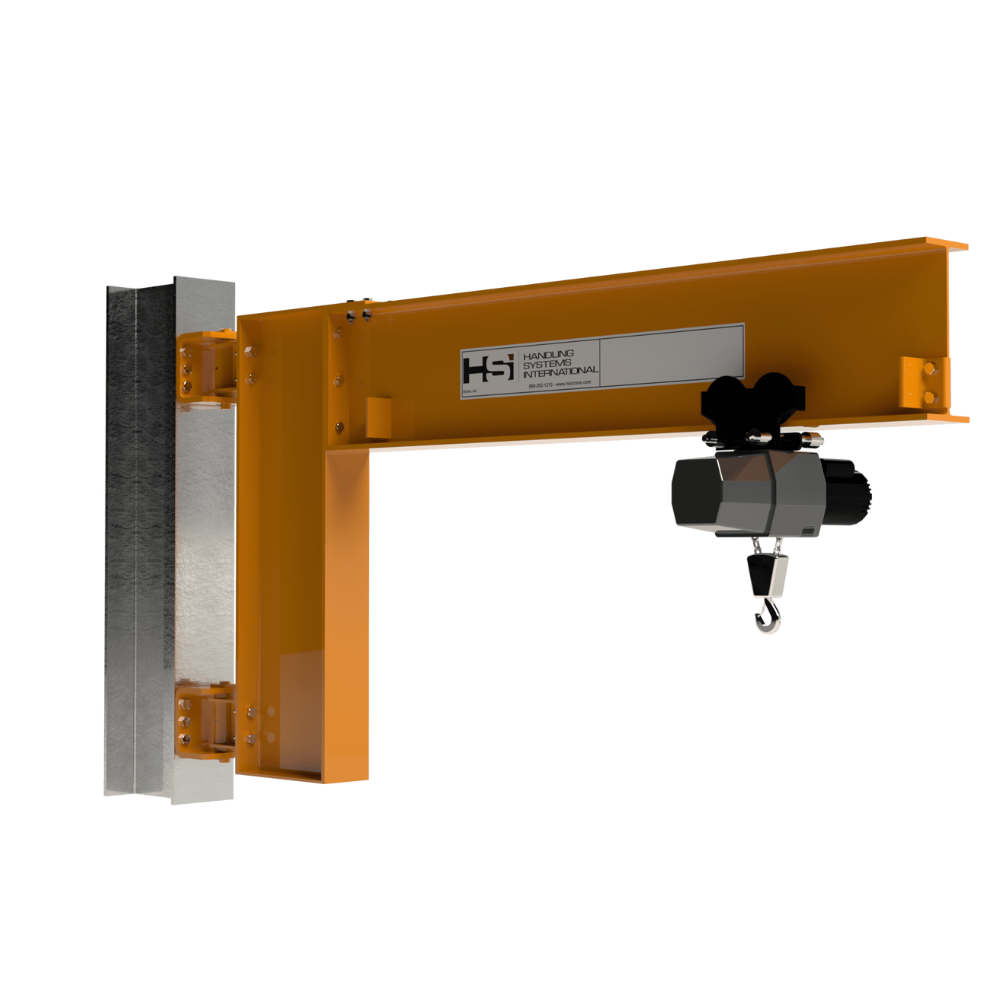

If floor space is a premium in your facility, but you still require a heavy-duty lifting tool, then this wall/column-mounted jib crane from HSI Crane could be the answer to your problems.

Highly suitable for use in bays, along a wall, or in an individual work cell, this cantilever-style jib crane has a safe working load limit of 8000lbs and is available in span lengths from 8ft up to 20ft*. Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist.

Standard rotation with a cantilever jib crane is 180-degrees (depending on how and where it’s mounted), with this particular heavy-duty model offering smooth and effortless rotation, thanks to the cast iron fittings, complete with rollers bearings and zerk fittings allowing for easy in-situ lubrication.

Designed to maximize hoist lift, this wall/column-mounted jib crane requires less headroom when mounting, making it an easy to install lifting solution, even in heavy-duty environments.

All Cranes manufactured by HIS have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the Downloads section to the right.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Cantilever Jib Crane ONLY!

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.

Downloads
  • HSI Model 313 Cantilever Type Jib Crane Owners Manual

  • HSI Jib Crane Accessories

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311/313 Wall to Fitting Centerline

313-8000-8

313

8000

8

W16x50#

7-1/8"

4'-0"

1166

20010

4000 Series

313-8000-9

313

8000

9

W18x55#

7-1/2"

6'-6"

1475

16020

4000 Series

313-8000-10

313

8000

10

W18x55#

7-1/2"

6'-6"

1475

16020

4000 Series

313-8000-11

313

8000

11

W18x55#

7-1/2"

6'-6"

1585

19650

4000 Series

313-8000-12

313

8000

12

W18x55#

7-1/2"

6'-6"

1585

19650

4000 Series

313-8000-13

313

8000

13

W18x55#

7-1/2"

6'-6"

1695

23310

4000 Series

313-8000-14

313

8000

14

W18x55#

7-1/2"

6'-6"

1695

23310

4000 Series

313-8000-15

313

8000

15

W21x68#

9"

7'-6"

2302

23640

4000 Series

313-8000-16

313

8000

16

W21x68#

9"

7'-6"

2302

23640

4000 Series

313-8000-17

313

8000

17

W24x84#

9"

9'-6"

3015

21550

4000 Series

313-8000-18

313

8000

18

W24x84#

9"

9'-6"

3015

21550

4000 Series

313-8000-19

313

8000

19

W24x84#

9"

9'-6"

3272

24230

4000 Series

313-8000-20

313

8000

20

W24x84#

9"

9'-6"

3272

24230

4000 Series

313-8000-21

313

8000

21

W24x84#

9"

7'-9"

3860

34019

4000 Series

313-8000-22

313

8000

22

W24x84#

9"

7'-9"

3860

34019

4000 Series

313-8000-23

313

8000

23

W24x84#

9"

8'-6"

4143

34227

4000 Series

313-8000-24

313

8000

24

W24x84#

9"

8'-6"

4143

34227

4000 Series

313-8000-25

313

8000

25

W24x84#

9"

9'-3"

4426

34446

4000 Series

313-8000-26

313

8000

26

W24x84#

9"

9'-3"

4426

34446

4000 Series
