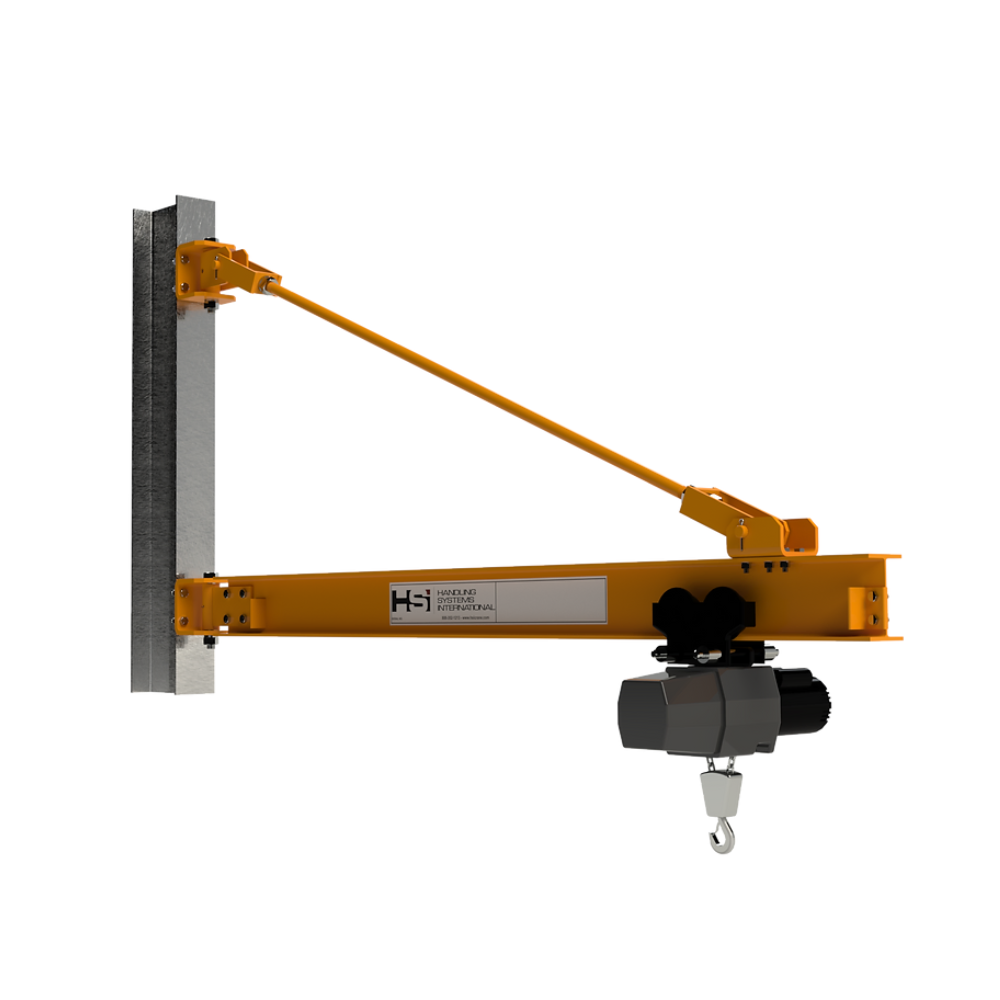

HSI 8000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 8000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 8000lbs Tie Rod Style Wall/Column Mounted Jib Crane

$4,824.40

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 8000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Beam Deflection than Cantilever Style
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If you’re facility is lacking in available floor space, but you need a heavy-duty lifting solution such as a jib crane, HSI’s Tie Rod Style models can be easily mounted on walls and columns, anywhere across your workplace.

Primarily designed for use in bays, along walkways, and in work cells, the heavy-duty tie rod style jib crane is similar to the cantilever style models but is more economical for scenarios where headroom is not an issue.

This particular model has a working load limit of 8000lbs and is available in spans up to 20ft* as standard. Designed to provide 180-degree rotation as standard, courtesy of the heavy-duty cast iron fittings with smooth roller bearings, HSI’s Model 311 range has many benefits over the Cantilever Style:

  • More economical
  • Less beam deflection
  • Smaller beam size
  • Easier rotation in larger applications
  • Hook travel closer to mounting column
  • Easier adjustment of boom tip

All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately Pricing is for Tie Rod Style Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.

Downloads
  • HSI Model 311 Tie Rod Style Wall/Column Mounted Jib Crane Owners Manual

  • HSI Jib Crane Accessories

  • EXAMPLE - Model 311 Drawing

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311-8000-8

311

8000

8

W18x46

6"

3'-0"

972

33010

4000 Series

311-8000-9

311

8000

9

W18x46

6"

3'-3"

1058

39260

4000 Series

311-8000-10

311

8000

10

W18x46

6"

3'-3"

1058

39260

4000 Series

311-8000-11

311

8000

11

W18x46

6"

4'-0"

1144

39070

4000 Series

311-8000-12

311

8000

12

W18x46

6"

4'-0"

1144

39070

4000 Series

311-8000-13

311

8000

13

W18x46

6"

4'-9"

1230

38980

4000 Series

311-8000-14

311

8000

14

W18x46

6"

4'-9"

1230

38980

4000 Series

311-8000-15

311

8000

15

W18x46

6"

5'-6"

1478

39180

4000 Series

311-8000-16

311

8000

16

W18x46

6"

5'-6"

1478

39180

4000 Series

311-8000-17

311

8000

17

W18x46

6"

6'-3"

1582

39190

4000 Series

311-8000-18

311

8000

18

W18x46

6"

6'-3"

1582

39190

4000 Series

311-8000-19

311

8000

19

W18x46

6"

7'-0"

1951

39670

4000 Series

311-8000-20

311

8000

20

W18x46

6"

7'-0"

1951

39670

4000 Series

311-8000-21

311

8000

21

W16x57

7 1/8"

7'-9"

2089

39760

4000 Series

311-8000-22

311

8000

22

W16x57

7 1/8"

7'-9"

2089

39760

4000 Series

311-8000-23

311

8000

23

W16x57

7 1/8"

8'-6"

2227

38960

4000 Series

311-8000-24

311

8000

24

W16x57

7 1/8"

8'-6"

2227

38960

4000 Series

311-8000-25

311

8000

25

W16x57

7 1/8"

9'3"

2365

39970

4000 Series

311-8000-26

311

8000

26

W16x57

7 1/8"

9'3"

2365

39970

4000 Series

311-8000-27

311

8000

27

W16x57

7 1/8"

10'-0"

2503

40080

4000 Series

311-8000-28

311

8000

28

W16x57

7 1/8"

10'-0"

2503

40080

4000 Series

311-8000-29

311

8000

29

W16x57

7 1/8"

11'-0"

2641

39290

4000 Series

311-8000-30

311

8000

30

W16x57

7 1/8"

11'-0"

2641

39290

4000 Series







NOTEThe above drawing is an example drawing, and is only used for the purpose of illustrating the span. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
