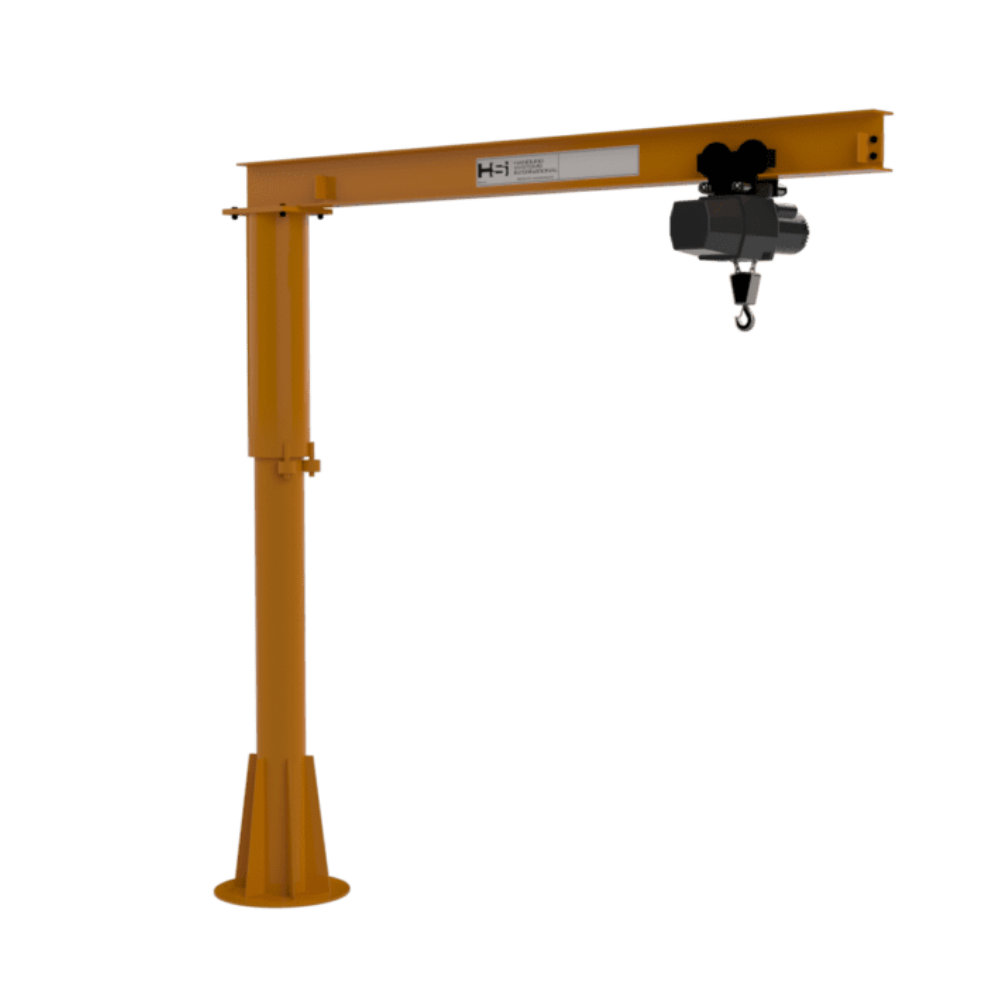

HSI Medium-Duty 2000lbs Freestanding Foundationless Jib Cranes

HSI Medium-Duty 2000lbs Freestanding Foundationless Jib Cranes

HSI Medium-Duty 2000lbs Freestanding Foundationless Jib Cranes

$4,062.39

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 2000lbs
  • Span Options: 8ft – 10ft
  • Height Under Boom Options: 8ft – 16ft
  • Freestanding Profile
  • Foundationless Design
  • Fully Tested & Certified

Customers Also Bought

Description

Features & Specification

In need of a Free-Standing Jib Crane but are limited by location options? Then HSI’s foundationless Jib Crane is the solution you’ve been searching for.

Unique in their design, a foundationless jib crane, often known as a slab-mounted system, can be simply bolted to reinforced concrete, meaning that no special foundation needs to be prior poured.

Foundationaless swing arm cranes can practically be installed almost anywhere on your site, and can be easily relocated if ever required – what’s better than having a choice?

IMPORTANT INFORMATION: It is recommended that foundationless jib cranes be mounted on reinforced concrete with a minimum depth of 6” avoiding any gaps, cracks, or expansion joints (within a given area, size of area should be determined by a qualified engineer). Anchor bolts must have a 4 ¾” minimum embedment.

This jib crane boasts a working load limit of 2000lbs, and is available in a wide range of variations, with span lengths ranging from 8ft to 10ft, and height under boom distances from 8ft to 15ft – guaranteeing that we have a solution that will meet your requirements.

Offering smooth 360-degree rotation as standard, this swing jib features an economical pipe over pipe profile, with full plate style gussets for maximum load distribution.

All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist

DISClAIMER: It is not the responsibility of LES or HSI to verify the suitability of a floor or structure to which this product is mounted. Prior to mounting, it is required that the end user seek advice from a qualified engineer.





Downloads
  • Model 350F Jib Crane Owners Manual

  • EXAMPLE - Model 350F Technical Drawing

  • HSI Jib Crane Accessories

 For model specific technical drawings and specifications, please contact our sales team with the required product code

NOTEThe above drawing is an example drawing, and is only used for the purpose of illustrating the span, height under boom, and overall height. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
