HTS ECO-Jack XR-Series 4.5 Ton Hydraulic Toe Jack

HTS ECO-Jack XR-Series 4.5 Ton Hydraulic Toe Jack

HTS ECO-Jack XR-Series 4.5 Ton Hydraulic Toe Jack

$1,495.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

  • Lifting Capacity 4.5 Ton (9,900lb)
  • Manufactured and Designed in Germany
  • Premium Quality hydraulic industrial design
  • Integrated pull back system for external pumps
  • Feet are adjustable and able to pivot
  • Side mounted handles
  • Fully adjustable toe positions
  • Compact and lightweight
  • Patented lifting claw
  • Drip free hydraulic coupling to the rear for hose pipe connection
  • Usually Ships in 1 day!

Customers Also Bought

Description

Features & Specification

Videos

The 4.5 Ton ECO-Jack XR is a high quality hydraulic toe jack which has been designed and manufactured in Germany to a very high specification. An external 10,000 psi pump is required to operate the jack which is equipped with an integrated spring return system for automatic retraction of the lifting unit to the start position.
This makes the lifting process easier and faster, particularly when using more than one jack simultaneously, or when working in a confined spaced.

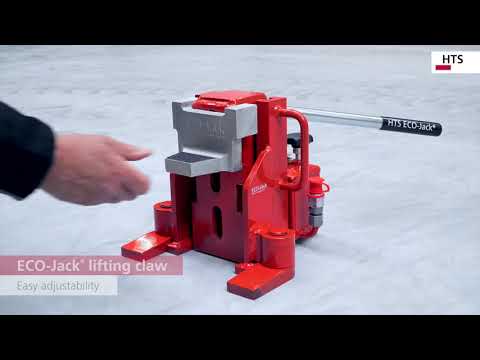

Using a patented lifting claw which can be adjusted with one hand.


Due to improved construction and high-quality material the weight has been improved by 30% compared to similar devices with a built in hydraulic pump.  Supplied with milled guides made with precision from high resistant quality material that guarantee exact lowering and lifting movement with low maintenance.

Strong swivel legs which secure the load to be lifting, preventing tilting of the machine lifter.

Downloads
  • ECO-Jack EJ45-3XR

Type EJ45-4 XR
Part number 01 045 41 01
Capacity (lbs.) 9900
Working pressure (bar/psi) 700/10,000
Claw height (inch) 0.6"
Adjustability (inch) 4 x 2.3"
Stroke (inch) 5.2"
Dimensions L x W x H (inch) 7.2" X 9.0" X 9.9"
Weight (lbs.) 35
