Home / Kinedyne 1" 90-Degree Strap End Bolt Plate

Kinedyne

Kinedyne 1" 90-Degree Strap End Bolt Plate

Kinedyne 1" 90-Degree Strap End Bolt Plate
Kinedyne 1" 90-Degree Strap End Bolt Plate
Kinedyne 1" 90-Degree Strap End Bolt Plate
Kinedyne 1" 90-Degree Strap End Bolt Plate
Kinedyne 1" 90-Degree Strap End Bolt Plate

Kinedyne 1" 90-Degree Strap End Bolt Plate

$3.51

Typically Ships In: 2 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

0 Degree Working Load Limit: 2,167 Lbs. / 985 Kgs.

45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.

90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.

Width of Webbing Slot: 1.25 Inches

Overall Height: 0.12 Inch

Overall Width: 1.40 Inches

Overall Length: 1 Inch

Customers Also Bought

Description

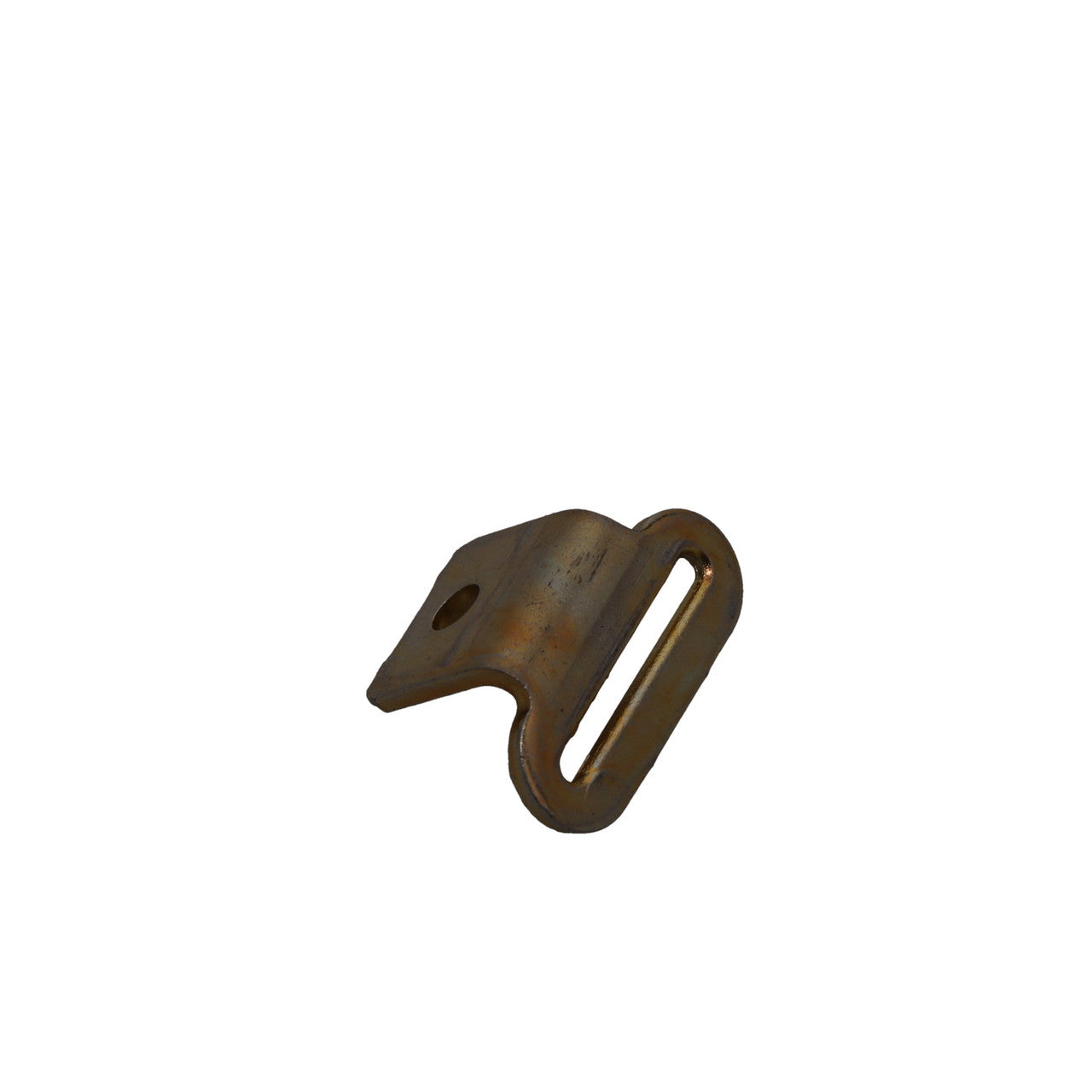

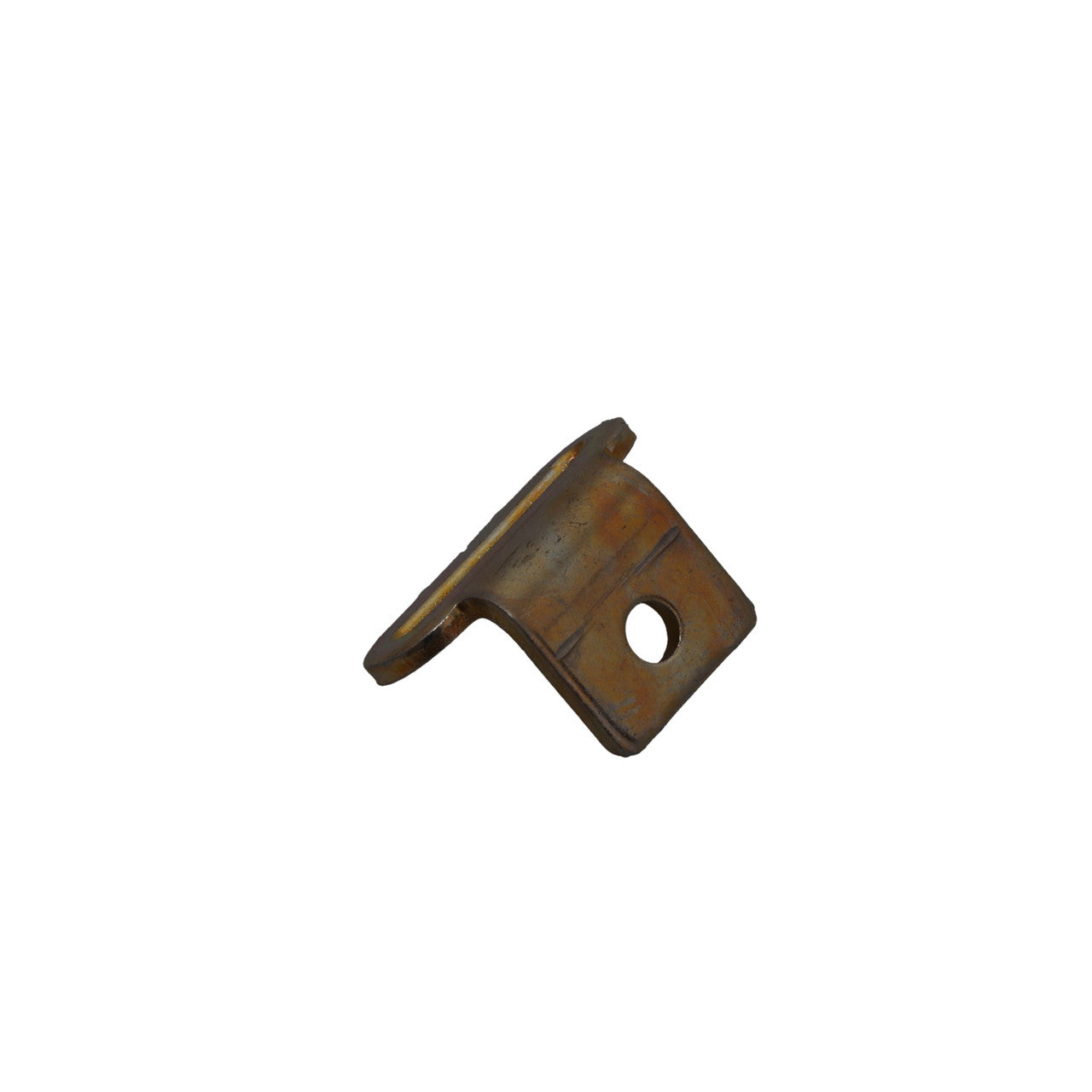

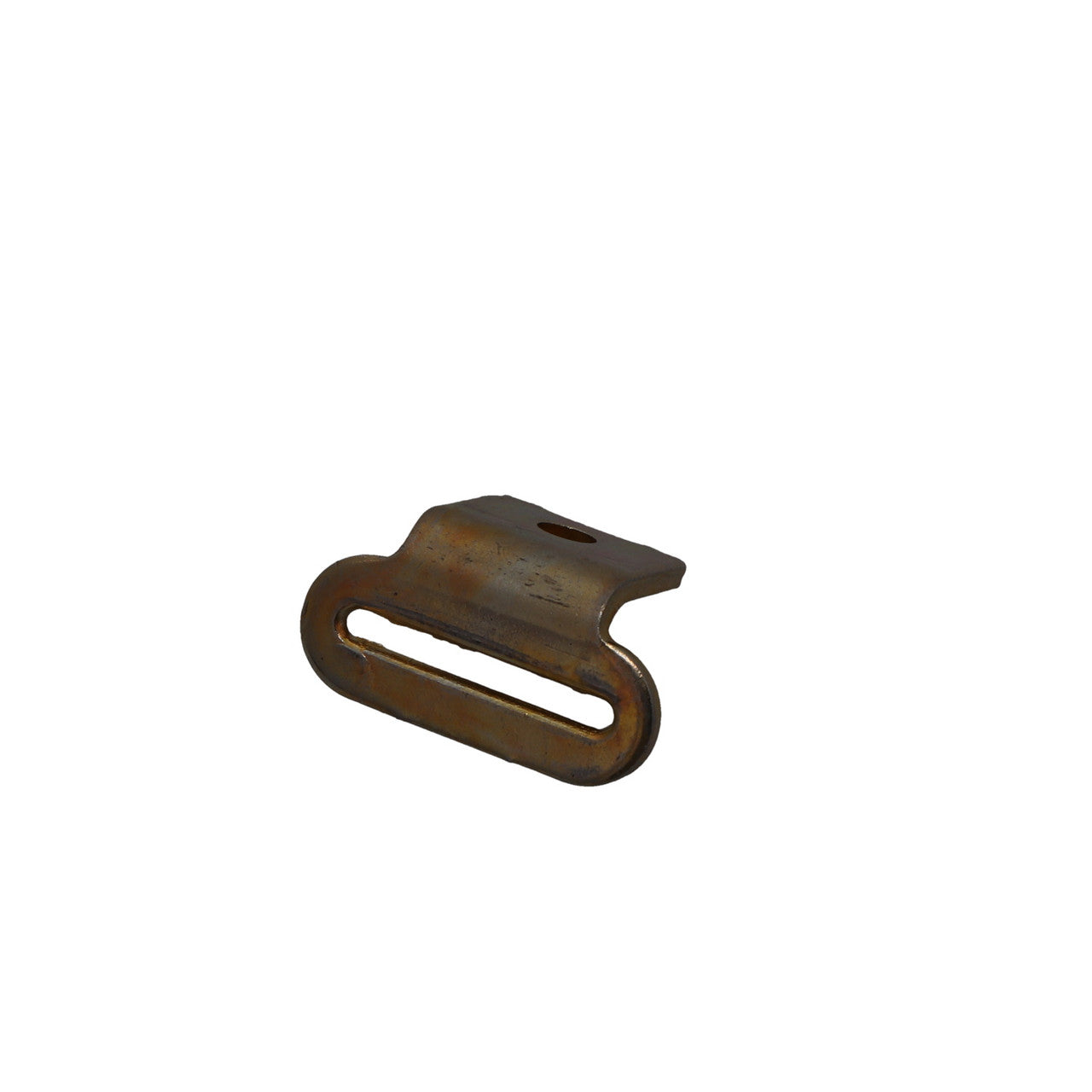

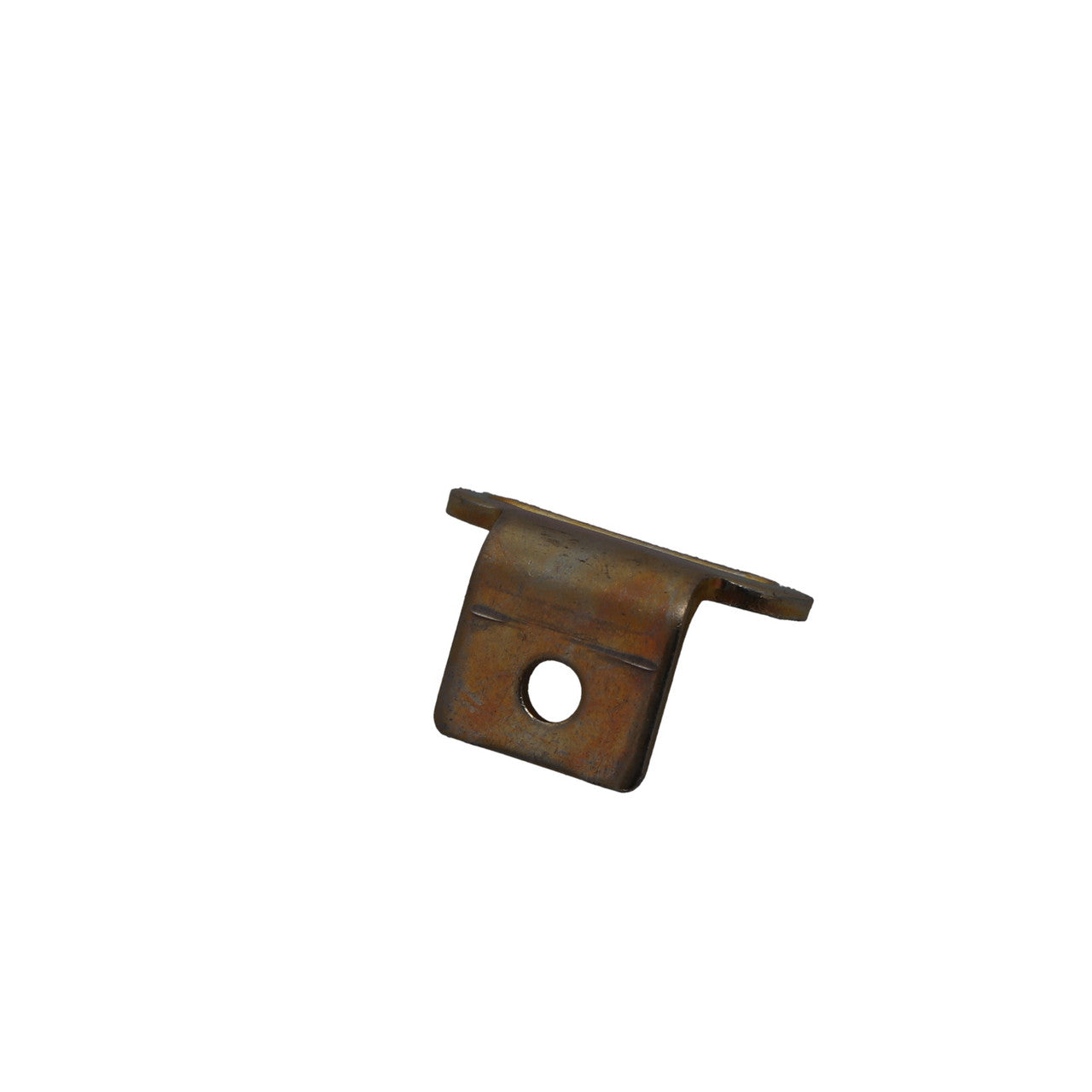

Designed for securing anchor points to corners, this 1-inch 90-degree strap end bolt plate from Kinedyne boasts industrial strength thanks to its heat-treated carbon steel construction.

Fitted with a standard 0.26-inch hole to attach the plate, this simple yet convenient unit boasts a working load limit range of 1670lbs - 2167lbs, depending on fixed angle.

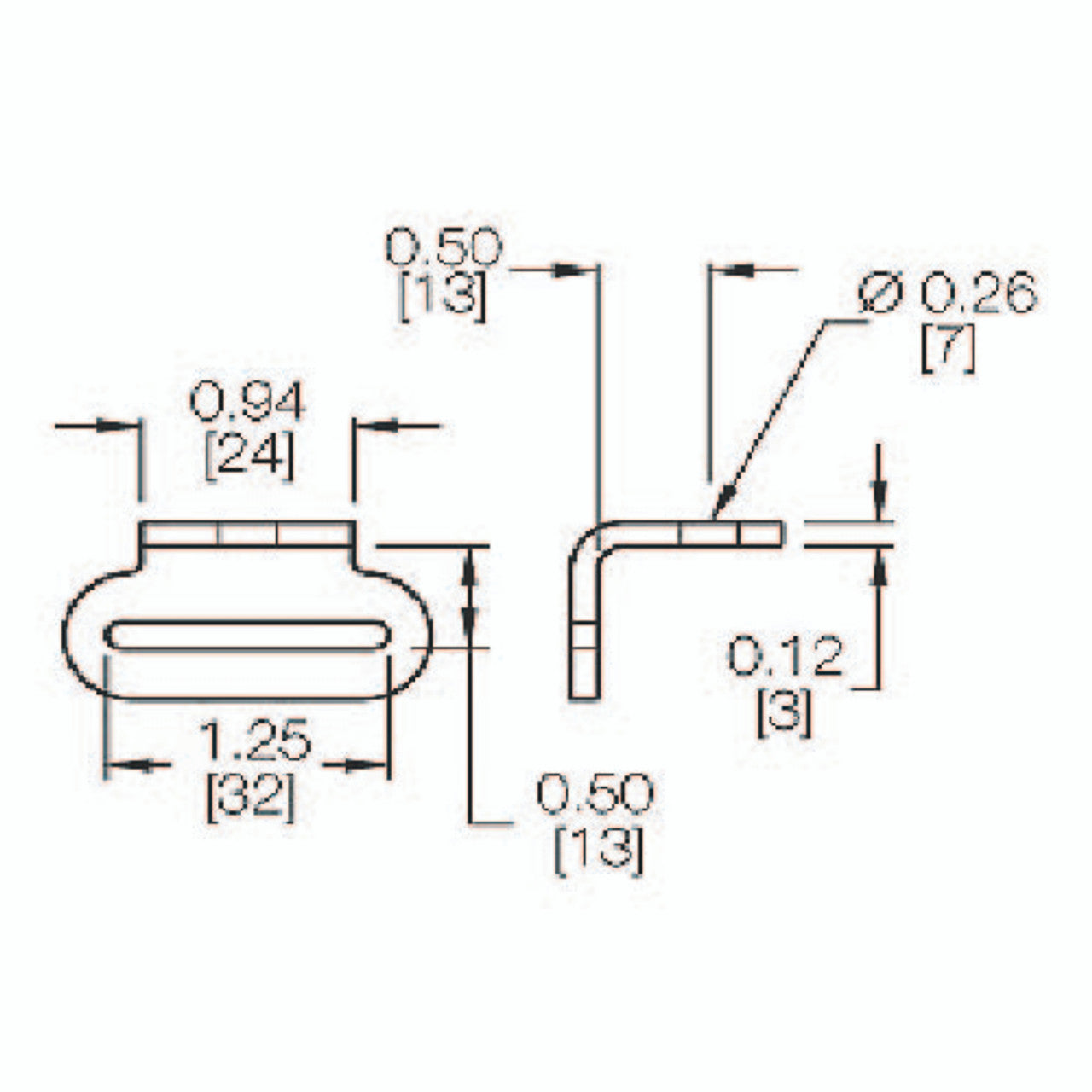

1" 90-Degree Strap End Bolt Plate – 34109-6 Quick Specs:

  • 0 Degree Working Load Limit: 2,167 Lbs. / 985 Kgs.
  • 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
  • 90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
  • Width of Webbing Slot: 1.25 Inches
  • Overall Height: 0.12 Inch
  • Overall Width: 1.40 Inches
  • Overall Length: 1 Inch
  • Type of Hole: Standard Hole to Attach Plate
  • Dimension of Hole: 0.26 Inch
