Home / Little Mule 12,000lbs Standard Parallel Jaw Wire Grip w/ Aggressive Teeth & Spring Loaded

Little Mule

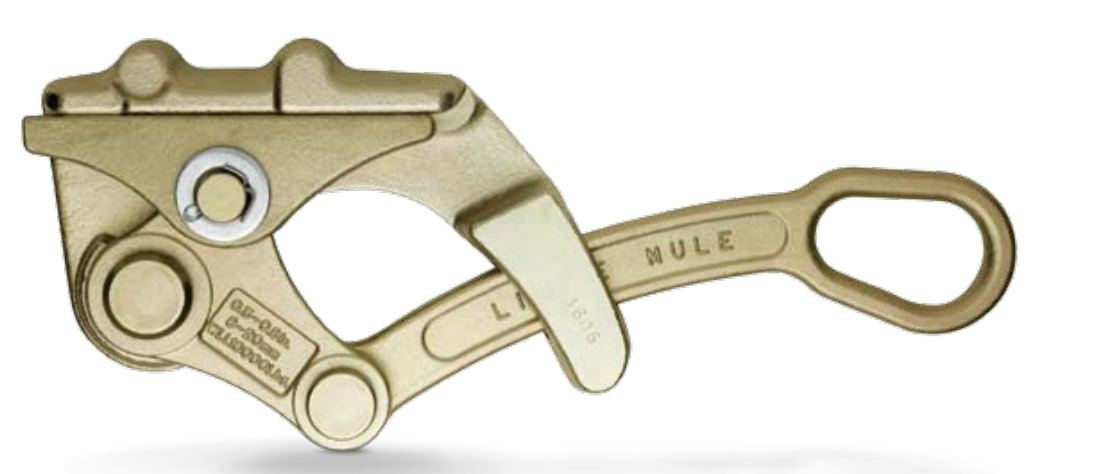

Little Mule 12,000lbs Standard Parallel Jaw Wire Grip w/ Aggressive Teeth & Spring Loaded

Little Mule 12,000lbs Standard Parallel Jaw Wire Grip w/ Aggressive Teeth & Spring Loaded

Little Mule 12,000lbs Standard Parallel Jaw Wire Grip w/ Aggressive Teeth & Spring Loaded

$846.00

Contact Us For Availability

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 12,000lbs
  • Parallel Jaw Type
  • Aggressive Teeth
  • Spring Loaded Gate
  • Un-Notched Handle
  • Standard Model
  • Wire Size Range: 17.77mm - 32mm
  • Suitable Cable Types: EHSC & Messenger Guy WIre

Customers Also Bought

Description

Features & Specification

Don’t get caught short on your next utilities job, and stay safe with a Wire Grip from Little Mule.

With an exceptional load capacity of 12,000lbs, this standard model of Wire Grip features a parallel jaw type and is finished with an aggressive tooth profile. Additionally, it comes with a spring-loaded gate and un-notched handle.

Spring-loaded gates allow a lineman to use a holding stick to open the gate and place the grip on the wire. When released, the gate closes over the wire and prevents the grip from falling off the wire.

Applicable cable types for this model are EHSC* and Messenger Guy Wire**, and it boasts a wire size range of 17.77mm (397MCM Gauge) up to 32mm (1130MCM Gauge).

*EHSC (Extra-High-Strength Cable) – This wire is tensioned to ‘guy’ or support poles and is the connecting wire that reinforces a side strain or dead end. It is the wire that is used at the top of the pole to an anchor at ground at an angle for support. The EHSC is much harder than standard guy strand wire and requires a more aggressive grip.

**Messenger Guy Wire – This is a wire that is used to support other cable or conductors and is usually made of steel. The messenger guy wire provides strength so the other cables don’t have to be as strong.



Downloads
  • Little Mule Wire Grips Cut Sheet

Code Min. Wire Size (Gauge) Max. Wire Size (Gauge) Model Gate Handle Jaw Teeth
04449W 17.77mm (397MCM) 32mm (1130MCM) Standard Spring Loaded Un-Notched Parallel Aggressive



ENTIRE LITTLE MULE WIRE GRIP RANGE
