MagMate CreativeLift Permanent Lifting Magnets

Capacity | Product Code:

$577.00

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

WLL range: 400lbs to 3000lbs
Single person operation
Made in the USA
3:1 design factor

Customers Also Bought

Description

Features & Specification

Long gone are the days where lifting thick, non-flexing steel sheets and components require 2 or more people – thanks to MagMate’s CreativeLift, proudly Made in the USA, it’s now a single-person task.

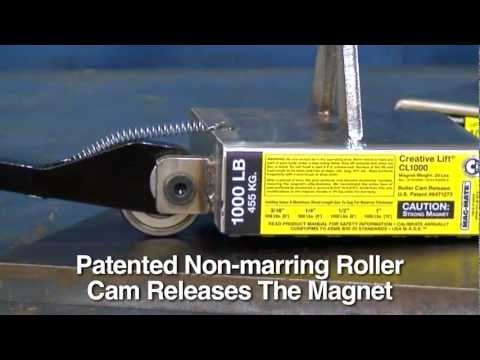

Ideal for handling steel plates, die castings and forgings, CreativeLift eliminates the need for clamping devices, slings or chains, with the original non-marring roller cam release easily releasing parts without gouging your valuable materials.

Crafted with a stainless steel casing for added durability, CreativeLift is heat resistant up to 300°F (148°C) making it useful in a wide variety of environments.

Fitted with a unique jack screw and low torque release load function, delivering higher safety and less stress on the user, while the clearly stated lifting capacities provide guidance for operators.

WLL range: 400lbs to 3000lbs
Single person operation
Made in the USA
3:1 design factor
RFID chip
Heat resistant up to 300°F (148°C)
Spring return handle
Less torque to release load
Stainless steel casing for added durability
ASME B30.20 BTH-1 Design Category B Class 3

Download Manuals

MagMate CreativeLift Lifting Magnet Data Sheet
MagMate CreativeLift 400lbs Magnet Lifter Drawing
MagMate CreativeLift 1000lbs Magnet Lifter Drawing
MagMate CreativeLift 1500lbs Magnet Lifter Drawing
MagMate CreativeLift 2200lbs Magnet Lifter Drawing
MagMate CreativeLift 3000lbs Magnet Lifter Drawing

Ceramic Creative Lift® Magnets
Part No.	Working Load Limit (lbs)	Ln. (in)	Wd. (in)	Ht. (in)	Magnet Ht. (in)	Magnet Wd. (in)	Magnet Ln. (in)	Weight (lbs)
CL0400	400	7-3/4	7-1/4	6-3/4	2-1/2	6-1/2	4	21
CL1000	1000	10-3/4	7-1/4	6-3/4	2-1/2	6-1/2	7	33
CL1500	1500	14-3/4	7-1/4	6-3/4	2-1/2	6-1/2	10-1/2	46
CL2200	2200	15	10-1/2	7	2-1/2	9-3/4	11-1/4	69
CL3000	3000	19-1/4	10-1/2	7	2-1/2	9-3/4	15-1/4	92

Working Load Limit in lbs & *Maximum Sheet Length Due To Sag For Material Thickness For Single Magnet Use
Pull (lbs.)	3/16" (6')	1/4" (6')	3/8" (8')	1/2" (8')	3/4" (8')	1" (10')
CL0400	400	400	400	400	400	400
CL1000	600	900	1000	1000	1000	1000
CL1500	800	1000	1500	1500	1500	1500
CL2200	800	1064	1725	2000	2200	2200
CL3000	800	1100	1800	2700	3000	3000
Working Load Limit (WLL) Values for the creative Lift® Magnets are stated at 33% of the actual value. We recommend when lifting sheets over 8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Round WLL Values are based on ideal conditions. Consult the factory before specifying these magnets for use on round materials. *Max. sheet lengths are selected due to sag characteristics of specified sheet. The item to be lifted must cover the entire length and width of the magnetic poles to properly engage and release the part. CF = Consult Factory, NA = Not Applicable (Magnets will not turn "ON" with stated thicknesses.)
