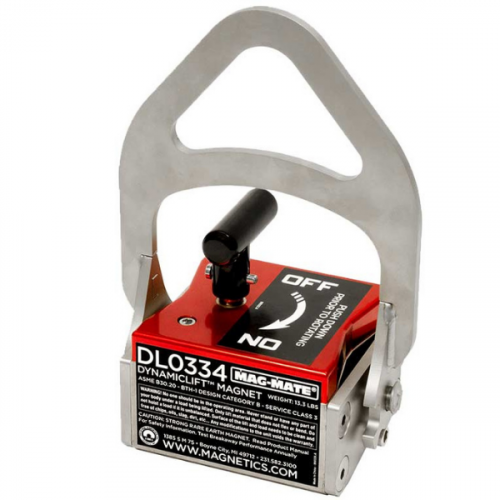

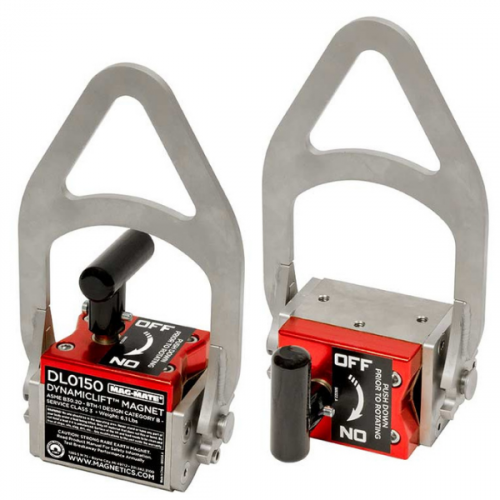

MagMate DynamicLift Rare Earth Permanent Lifting Magnet

MagMate DynamicLift Rare Earth Permanent Lifting Magnet
MagMate DynamicLift Rare Earth Permanent Lifting Magnet

MagMate DynamicLift Rare Earth Permanent Lifting Magnet

$488.35
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/" title="/">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

  • Working Load Limits: 150lbs & 334lbs
  • On/Off actuated rare earth design
  • Heat resistant up to 180°F (82°C)

Customers Also Bought

Description

Features & Specification

Videos

Does size really matter? Well, NO, in the case of MagMate’s DynamicLift. Compact in stature but packing an almighty punch with its 150lbs and 334lbs lifting capacities.

Lightweight and super powerful, the DynamicLift Rare Earth Permanent Lifting Magnet has been designed to for effortless use on flat and round surfaces, while also offering excellent holding properties on thin gauge ferrous metals compared to other rare earth lifting magnets available on the market.

Fitted with an internal released On/Off device that doesn’t contact or damage the materials surface, these units are heat resistant up to 180°F (82°C) making them ideal for a wide range of industrial environments.

Rated to 3:1 design factor, DynamicLift is designed and manufactured to ASME B30.20 BTH-1.

  • Working Load Limits: 150lbs & 334lbs
  • On/Off actuated rare earth design
  • Heat resistant up to 180°F (82°C)
  • 3:1 design factor
  • Top rotating and locking handle
  • ASME B30.20 BTH-1 Design Category B Service Class 3
Downloads
  • MagMate DynamicLift Data Sheet

  • MagMate DynamicLift 150lbs Lift Magnet Drawing

  • MagMate DynamicLift 334lbs Lift Magnet Drawing

Rare Earth DynamicLift™ Magnets
Overall Magnet Bail
Model No. WLL (lbs) Ht. (in) Ln. (in) Wt. (lbs) Ht. (in) Wd. (in) Ln. (in) Th. (in) Ht. (in) Wd. (in)
DL0150 150 9.00 4.25 6.1 2.75 2.50 3.00 0.25 2.25 3.00
DL0334 334 9.75 5.75 13.3 3.00 4.00 4.25 0.25 2.25 4.00

Working Load Limit (WLL) in lbs & *Maximum Sheet Length For Single Magnet Use
Horizontal Flat Part / Sheet Lifting Applications
Model No. WLL at 1/4" (6' Lg) WLL at 3/8" (8' Lg) WLL at 1/2" + (8' Lg)
DL0150 150 150 150
DL0334 275 320 334
Vertical Flat Part / Sheet Lifting Applications
Model No. WLL (lbs) Minimum Thickness (in)
DL0150 37.5 1.00
DL0334 83.5 1.00
Horizontal Round Part Lifting Applications
Model No. WLL (lbs) Minimum Diameter (in) Minimum Wall Thickness (in) Max. WLL (lbs) at Min. Diameter and Thickness
DL0150 75 2.00 0.125 65
DL0334 167 4.00 0.125 100
