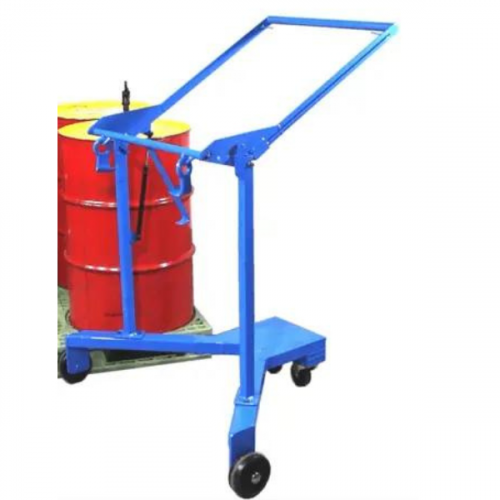

Morse 55-Gallon Drum Spotter
Morse 55-Gallon Drum Spotter

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help
Quick Overview:
- Suitable for rimmed 55-Gallon drums
- Capacity: 800lbs
- Two 6" polyolefin load wheels
- Two 4" rear steering swivel castors
- Built-in counterweight stability
- Made in the USA
Customers Also Bought
Made in the USA, this Drum Spotter from Morse is suitable for use with the following rimmed drums:
- 22" - 23.5" diameter
- 34" - 36" tall
- Closed 55-Gallon steel tight-head or removable top
- Popular 55-gallon poly drums
- Many fiber drums with clamp-on lids
With an outstanding lifting capacity of 800lbs, each unit is fitted with two 6" polyolefin load wheels with roller bearings and two 4" rear swivel castors for easy steering, while the built-in counterbalance provides perfect stability when loading, transporting, and lowering loads.
* Spark-Resistant version available by contacting our Sales Team (Product ID 81M)
Effective operation in 4 easy steps:

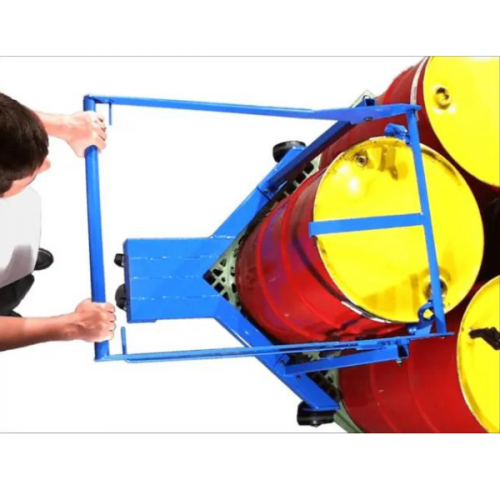

1: To Lift a Drum - Roll the Drum Spotter to the corner of a pallet. Position handle so hooks are positioned below the drum rim. Pull down handle to lift the drum clear of the pallet. Dual ratchets hold up the drum when handle is pulled down. The operator then holds zero weight and does not need to balance the drum spotter. Drum stays upright ready to be wheeled away.
2: To lower drum - The operator pushes down and uses the two-hand operated release which allows the handle to rise. The length of the handle provides leverage to manage the descent of the drum gently.
3: Steel Hooks - release their hold after the drum settles on the floor or pallet.
4: Lifting Handle - The handle of the Drum Spotter is conveniently held up yu a gas spring. The ratchets stop the handle in position for the operator to take hold and use it. These ratchets also hold the weight of the drum when lifted.
- Suitable for rimmed 55-Gallon drums
- Capacity: 800lbs
- Hooks hold drum below rim
- Ratchets maintain handle position
- Two 6" polyolefin load wheels
- Two 4" rear steering swivel castors
- Maximum pallet height: 6"
- Built-in counterweight stability
