Home / Morse Heavy-Duty Hydra-Lift Karrier with AC Power Lift & Tilt

Morse

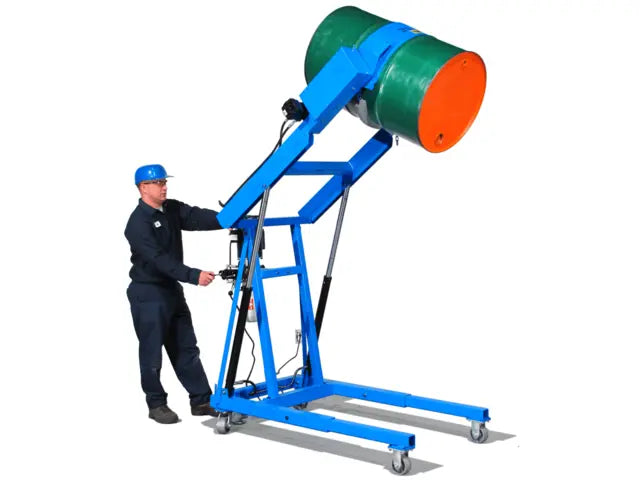

Morse Heavy-Duty Hydra-Lift Karrier with AC Power Lift & Tilt

Morse Heavy-Duty Hydra-Lift Karrier with AC Power Lift & Tilt

Morse Heavy-Duty Hydra-Lift Karrier with AC Power Lift & Tilt

$7,610.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Customers Also Bought

Description

Reviews

Specific to Model 410-117

  • Model 410-117 has a single-phase 50Hz AC motor for power lift and tilt
  • ONLY for use in country with 50Hz power supply
  • Ships without switch, cord and plug. Electrician to install according to local codes.
  • Momentary switch and lift valve raises drum. Second valve controls hydraulically-driven drum tilt. Manual release valve lowers drum.
  • Lift, move, and pour a 55-gallon (210 liter) steel drum from up to 72" (183 cm) high
  • MORcinch drum holder adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
  • To handle other varieties of drums, install the correct MORCINCHTM options for your particular size and type of drum
  • 360-degree tilt control in either direction
  • Dual heavy-duty hydraulic cylinders with built-in flow control for uniform, controlled speed of descent
  • Raise and control dispensing as necessary: increase pouring angle for full discharge; reduce to control pour rate; reverse to stop pouring and deliver partial drum contents
  • Material is discharged straight forward directly from drum
  • Faucets, pipe, or valve extensions may be attached to drum
  • Hydra-Lift Karriers can also be used to lift drums onto or off scales, platforms, conveyors or trucks; move drums to or from storage; charge high tanks; or position drums of parts for hand access at work stations

All Heavy-Duty Hydra-Lift Drum Karriers

  • Heavy-Duty Hydra-Lift Karriers Lift, Move and Dispense a drum
  • Reinforced frame and heavy-duty cylinders for safe drum handling up to 1200 Lb. (544 kg)
  • Rotate drum 360 degrees forward and back to dispense into vat, hopper, mixer, etc.
  • Dispense at up to 72" (183 cm) high
  • Dual hydraulic cylinders have built-in flow control for uniform, controlled speed of descent
  • MORCINCHTM Drum Handling System
    • Automatically adjusts for 22" to 23.5" (56 to 59.7 cm) diameter drum
    • Install correct MORCINCHTM Kit to handle plastic or fiber drum
    • Insert correct size Diameter Adapter for each smaller drum
Downloads
  • Morse Heavy-Duty Hydra-Lift Karriers Data Sheet
