Morse Steel, Plastic and Fiber Drum Lifter

Main Prod Options:

$451.00

Typically Ships In: 1-2 Business Days

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Model 86
Capacity 1,000Lb
Lift steel, plastic or fiber drums
Under drum support
Lift drums with a crane or hoist
Secures with ratchet strap as standard
Made in the USA

Customers Also Bought

Description

Features & Specification

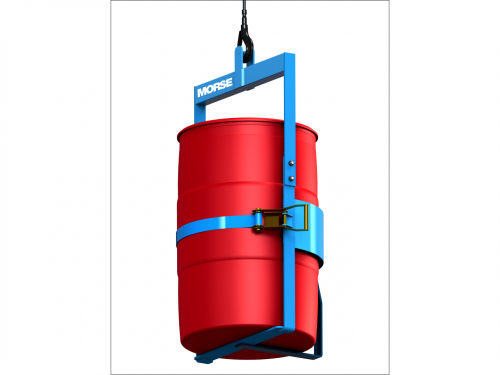

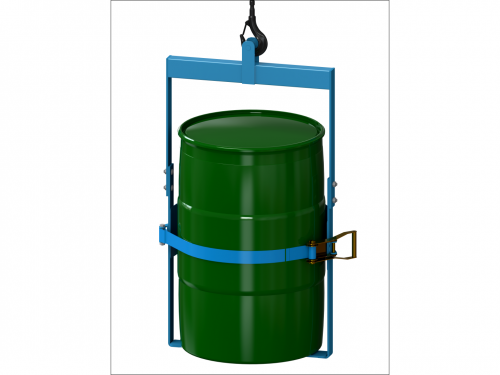

Morse Model #86 Below-Hook Drum Lifter

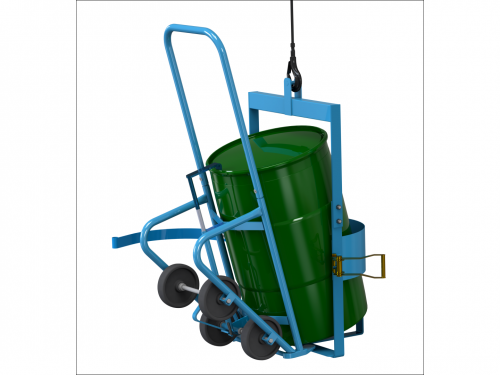

Morse Steel, Plastic and Fiber Drum Lifters are the ultimate solution for the safety conscious operator thanks to their under-drum support and simple operation. Lift and transport 22-23.5" diameter with a weight of up to 1,000Lb (454kg)Place the drum in to the lifter via a drum truck and secure the ratchet strap (Cinch chain and ratchet available as an optional extra) your cradle is then ready to lift with a hoist or crane via the top lug.

1,000Lb Capacity
Individually load tested to 125% rated capacity, includes Load Test Certificate
Conforms to ANSI/ASME B30.20
Transports drums in the upright position
Drums secured via a web-strap (Cinch chain and ratchet available upon request)

Model #	Description	Capacity	Domestic Ship Weight	Domestic Ship Dimensions
86 ( THIS PRODUCT)	Drum Lifter with web strap around drum	1,000 Lb. (454 kg)	56 Lb. (25.4 kg)	L28" x W19" x H30" (71 x 48 x 76 cm)
86-SS (Call for this model)	Stainless Steel Drum Lifter with web strap around drum	1,000 Lb. (454 kg)	56 Lb. (25.4 kg)	L28" x W19" x H30" (71 x 48 x 76 cm)

Options and Accessories
Option #	Description		Domestic Ship Weight	Domestic Ship Dimensions
6314i-P	Factory installed Cinch Chain on new model 86		- -	- -
6314SSi-P	Factory installed Stainless Steel Cinch Chain on new model 86-SS. Note: Ratchet handle is powder coat FDA grey.		- -	- -
6314-P	Kit for customer to install cinch chain on model 86		12 Lb. (5.4 kg)	L9.5" x W9.5" x H17" (24 x 24 x 43 cm)
6314SS-P	Kit for customer to install stainless steel cinch chain on model 86-SS. Note: Ratchet handle is powder coat FDA grey.		12 Lb. (5.4 kg)	L9.5" x W9.5" x H17" (24 x 24 x 43 cm)

Custom Drum Lifters with Under-Drum Support
Model #	Description	Capacity	Domestic Ship Weight	Domestic Ship Dimensions
86S-2D	Drum Lifter for 2 drums	1,000 Lb. (454 kg) per drum	180 Lb. (81.6 kg)	L48" x W40" x H57" (122 x 102 x 145 cm)
86S-2LP	Drum Lifter with 2 lifting points	1,000 Lb. (454 kg)	65 Lb. (29.5 kg)	L28" x W19" x H30" (71 x 48 x 76 cm)
86S-3LP	Drum Lifter with 3 lifting points	1,000 Lb. (454 kg)	72 Lb. (34 kg)	L28" x W19" x H30" (71 x 48 x 76 cm)
86S-FP	Drum Lifter with added fork pockets	1,000 Lb. (454 kg)	118 Lb. (53.5 kg)	L37"x W33" x H37" (94 x 84 x 94 cm)
86S-FPHD	Heavy-Duty Drum Lifter with added fork pockets	2,000 Lb. (907 kg)	241 Lb. (109 kg)	L37" x W33" x H58" (94 x 84 x 147 cm)
