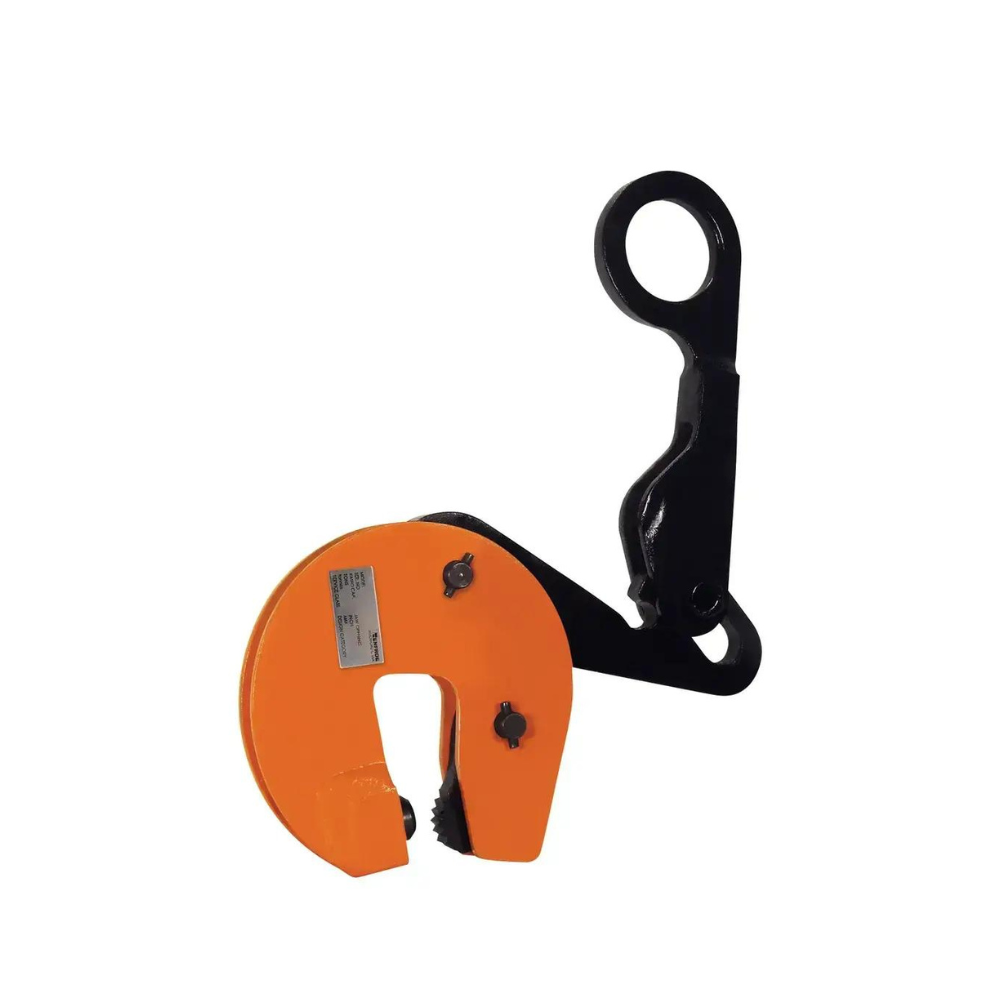

Renfroe ASTL Non-Locking Type Lifting Clamps
Renfroe ASTL Non-Locking Type Lifting Clamps
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
Very similar to the model AST, Renfroe's ASTL Non-Locking Type Lifting Clamp has been specifically developed for lifting, turning, and stacking lightweight beams and other structural shapes while a constant tension is applied to the lifting shackle.
The horizontal shackle allows the beam to be lifting with the web in a near sideways position by attaching the clamp to the load with the shackle positioned over the web, and between the flanges.
With a beam laying in a horizontal position, the clamp placed with the shackle overhanging the flange, users can lift, turn through 90-degrees, and raise the beam in a vertical position.
The ASTL Lifting Clamp boasts all the same exceptional feature as the AST model, but also includes a linkage which permits the tool to be removed remotely by setting the load down with the sling slack, then lifting the crane hook.
|

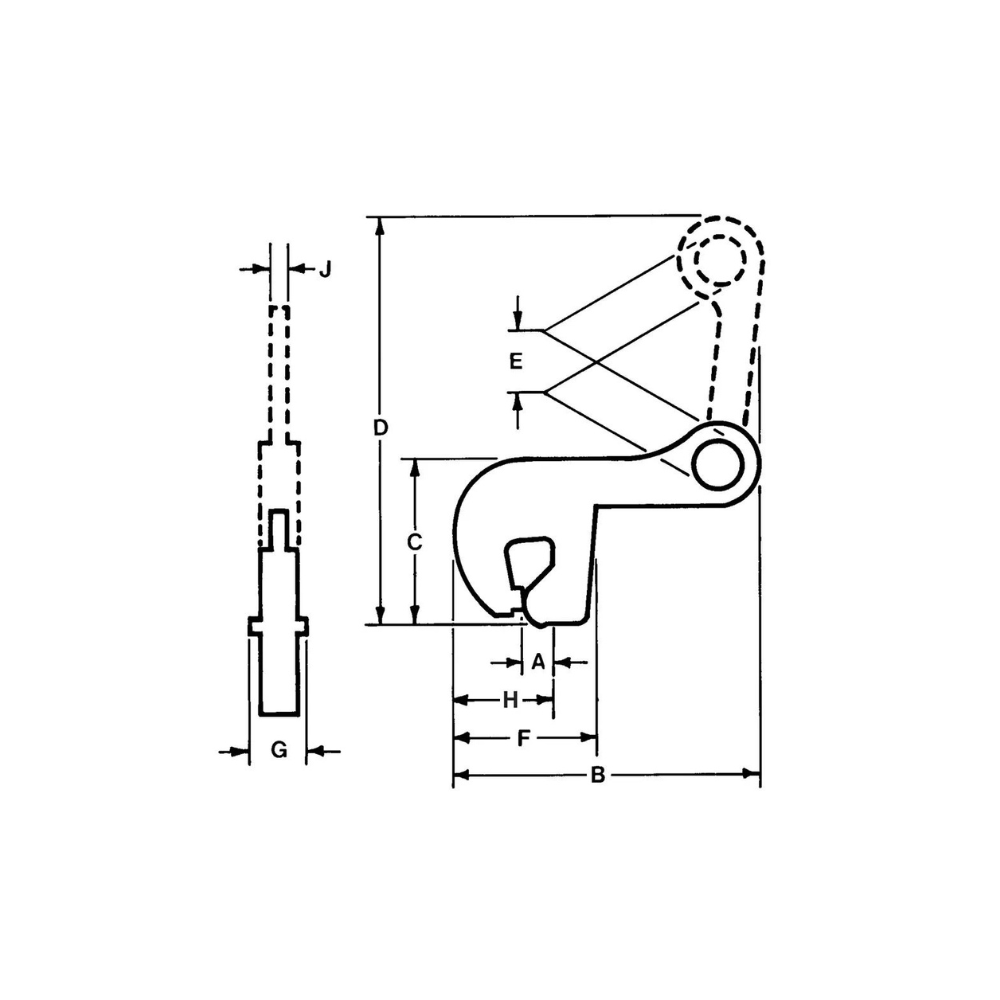

SKU |
Capacity (tons) |
Weight (lbs) |
Clamp Height (in.) |
Clamp Length (in.) |
Clamp to Cam Length (in.) |
Clamp Width (in.) |
Overall Clamp Length (in.) |
Pivot Length (in.) |
Max Plate Thickness (in.) |
Shackle Thickness (in.) |
|
ASTL-00.50-A |
0.5 |
10 |
6.6875 |
6.1875 |
2.5 |
1.625 |
10.75 |
1.75 |
0.75 |
0.5 |
|
ASTL-01.50-A |
1.5 |
24 |
8.5 |
7 |
3 |
2.5625 |
13 |
2.5 |
0.75 |
0.625 |
|
ASTL-03.00-A |
3 |
63 |
12.5 |
11.19 |
4.62 |
3 |
19.25 |
3.38 |
1.5 |
0.75 |
