Home / Renfroe NMRSC Locking Screw Type Non-Marring Lifting Clamps

Renfroe

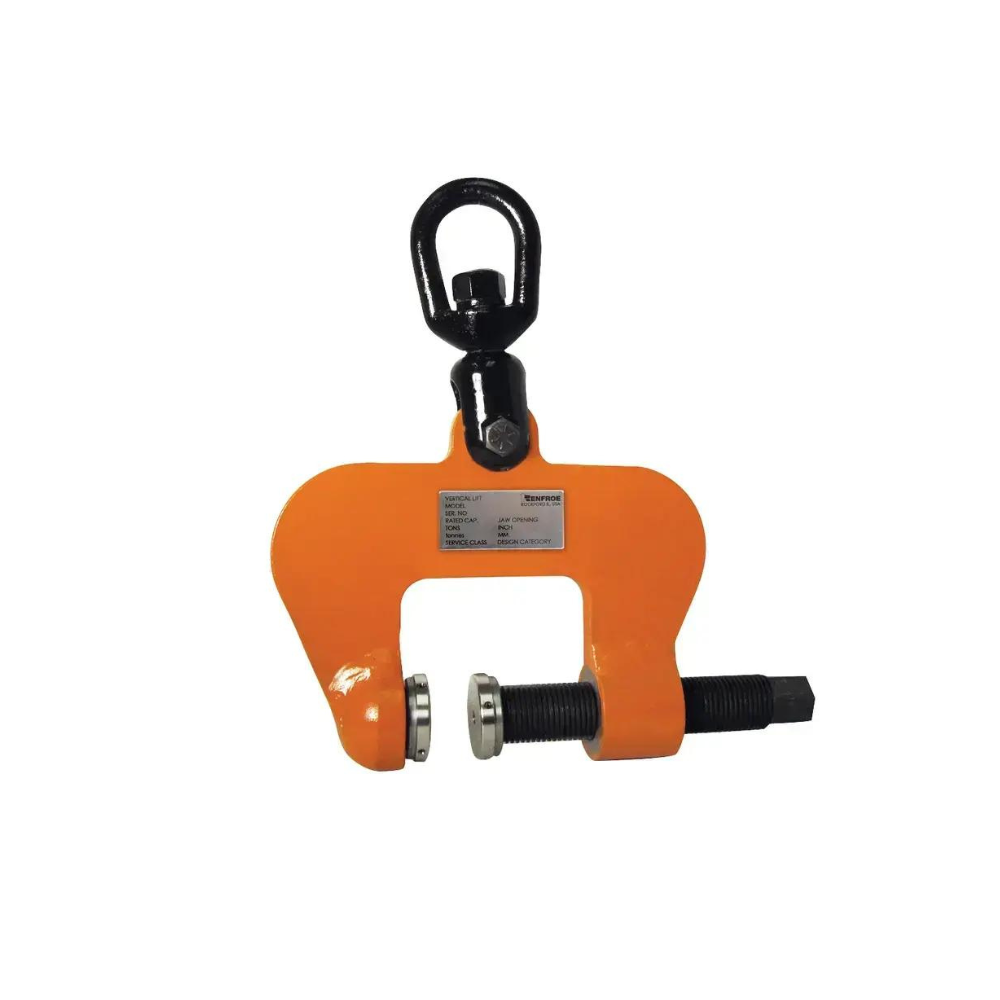

Renfroe NMRSC Locking Screw Type Non-Marring Lifting Clamps

Renfroe NMRSC Locking Screw Type Non-Marring Lifting Clamps
Renfroe NMRSC Locking Screw Type Non-Marring Lifting Clamps
Renfroe NMRSC Locking Screw Type Non-Marring Lifting Clamps

Renfroe NMRSC Locking Screw Type Non-Marring Lifting Clamps

$2,800.00

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 0.5t
  • Ergonomic Design
  • Lightweight
  • Suitable for Copper, Stainless Steel, Aluminum, and Polished Metal Plates
  • Recommended for Use in Pairs

Customers Also Bought

Description

Features & Specification

Designed specifically for use on thick steel plates that are less than 1000lbs (0.5t) in weight, Renfroe's NMRSC Non-Marring Lifting Clamps is a truly ergonomic, lightweight screw-type solution.

Working seamlessly with stainless steel, copper, aluminum, and other polished metal plates, without any risk of marring, the NMRSC Lifting Clamp is fitted with smooth gripping surfaces.

NOTE: Recommended for use in pairs

Downloads
  • Renfroe NMRSC Lifting Clamp Cut Sheet

  • Renfroe NMRSC Lifting Clamp Operators Manual

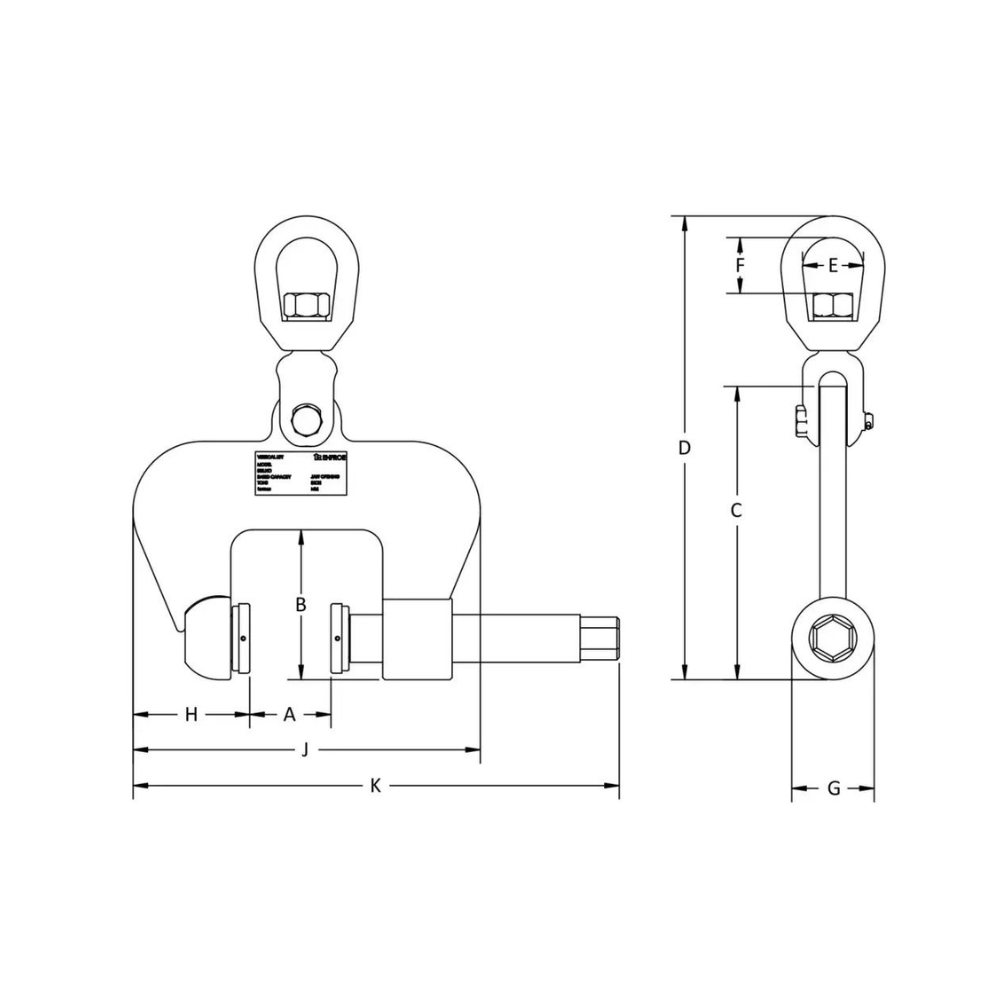

SKU

Capacity

(tons)

A - Min

Plate

Thickness

(in.)

A - Max

Plate

Thickness

(in.)

B - Jaw

Opening

Length

(in.)

C - Clamp

Body

Height

(in.)

D - Overall

Height

(in.)

E - Bail

Opening

Wdith

(in.)

F - bail

Opening

Height

(in.)

G - Overall

Width

(in.)

H - Jaw To

Clamp

Height

(in.)

J - Clamp

Body

Length

(in.)

K - Overall

Length

(in.)

Weight

(lbs)

NMRSC-00.50-A

0.5

0

3

4.31

8.06

13.38

1.75

1.56

2.38

3.38

10

14

16.3

NMRSC-00.50-B

0.5

1.38

4.25

4.31

8.06

13.38

1.75

1.56

2.38

3.38

11.19

15.94

17
