Home / RUD VLBS Load Ring for Welding

RUD

RUD VLBS Load Ring for Welding

RUD VLBS Load Ring for Welding
RUD VLBS Load Ring for Welding
RUD VLBS Load Ring for Welding
RUD VLBS Load Ring for Welding
RUD VLBS Load Ring for Welding
RUD VLBS Load Ring for Welding

RUD VLBS Load Ring for Welding

$59.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Large WLL range 1.5 t – 16 t
  • Functionally optimised shape of the suspension ring for better support at side loading

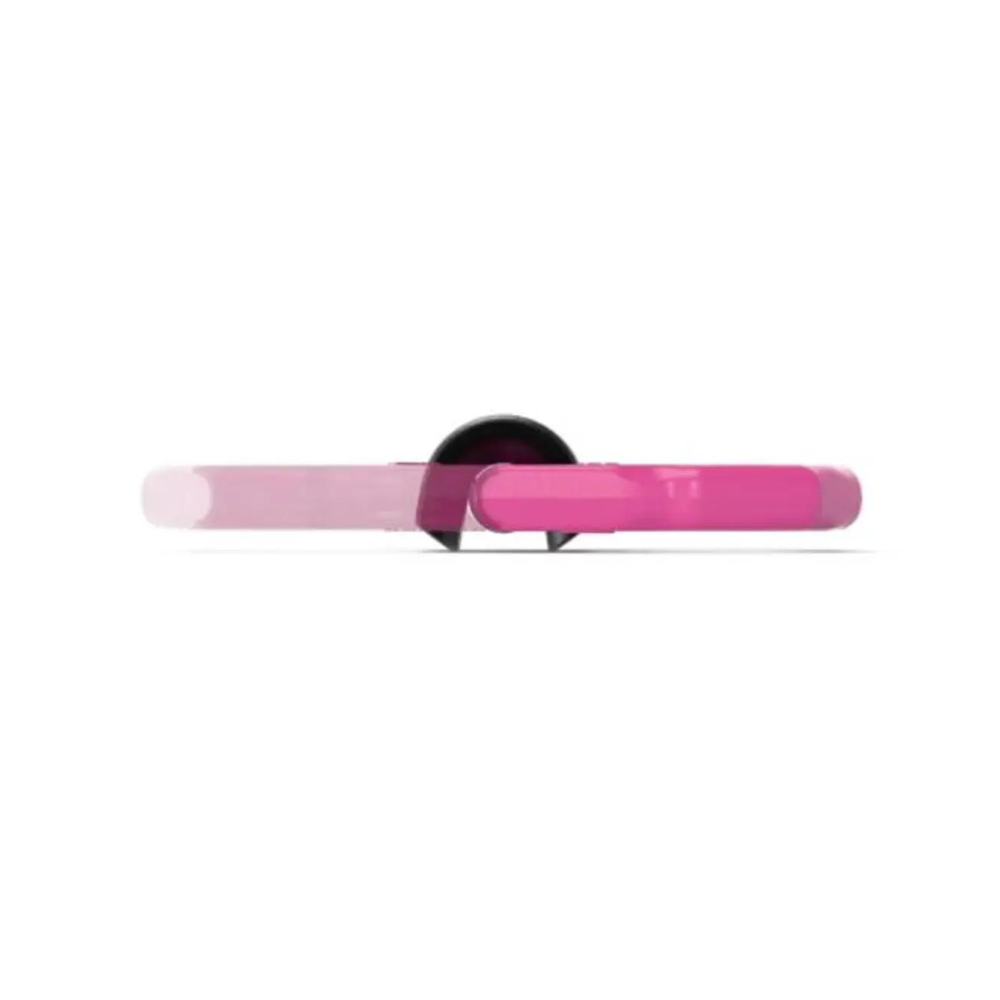

  • Suspension ring can be pivoted through 180°
  • WLL possible up to 90° in load ring plane
  • Distance knobs on the weld-on block for the necessary distance for root welding

Customers Also Bought

Description

Features & Specification

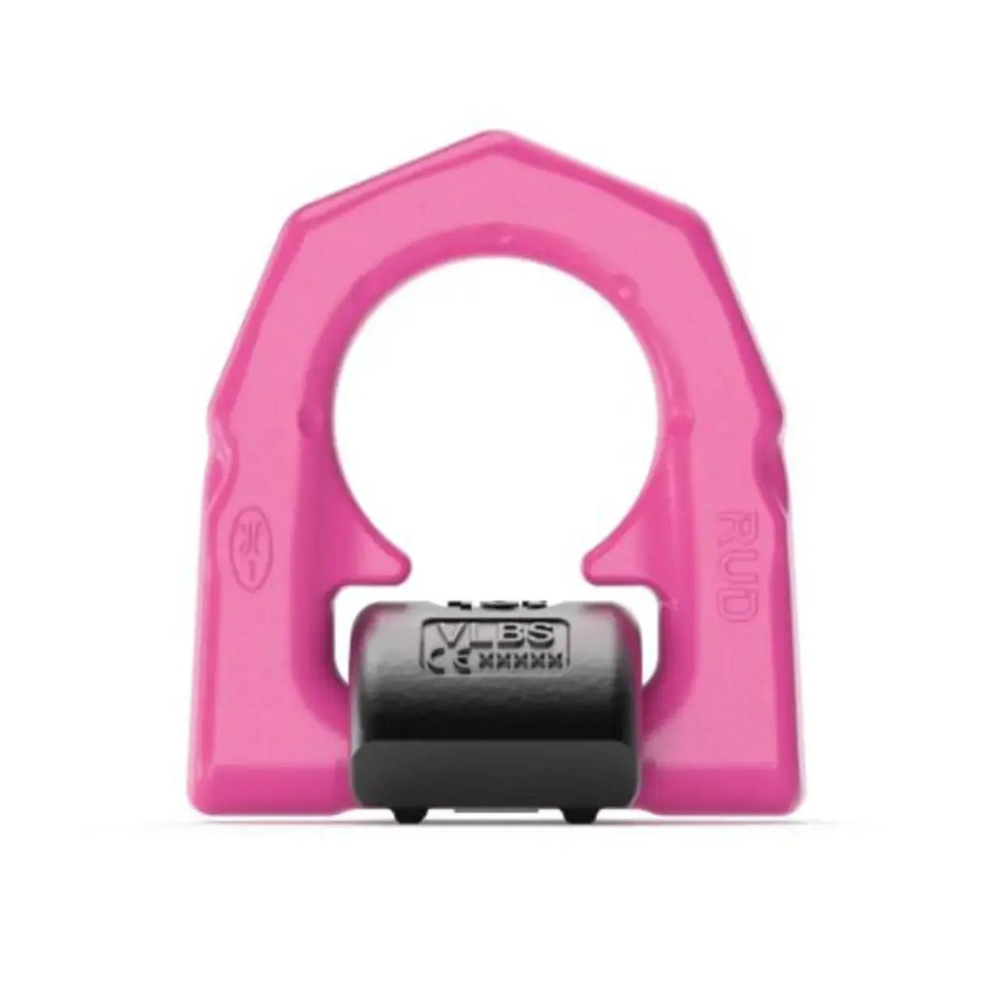

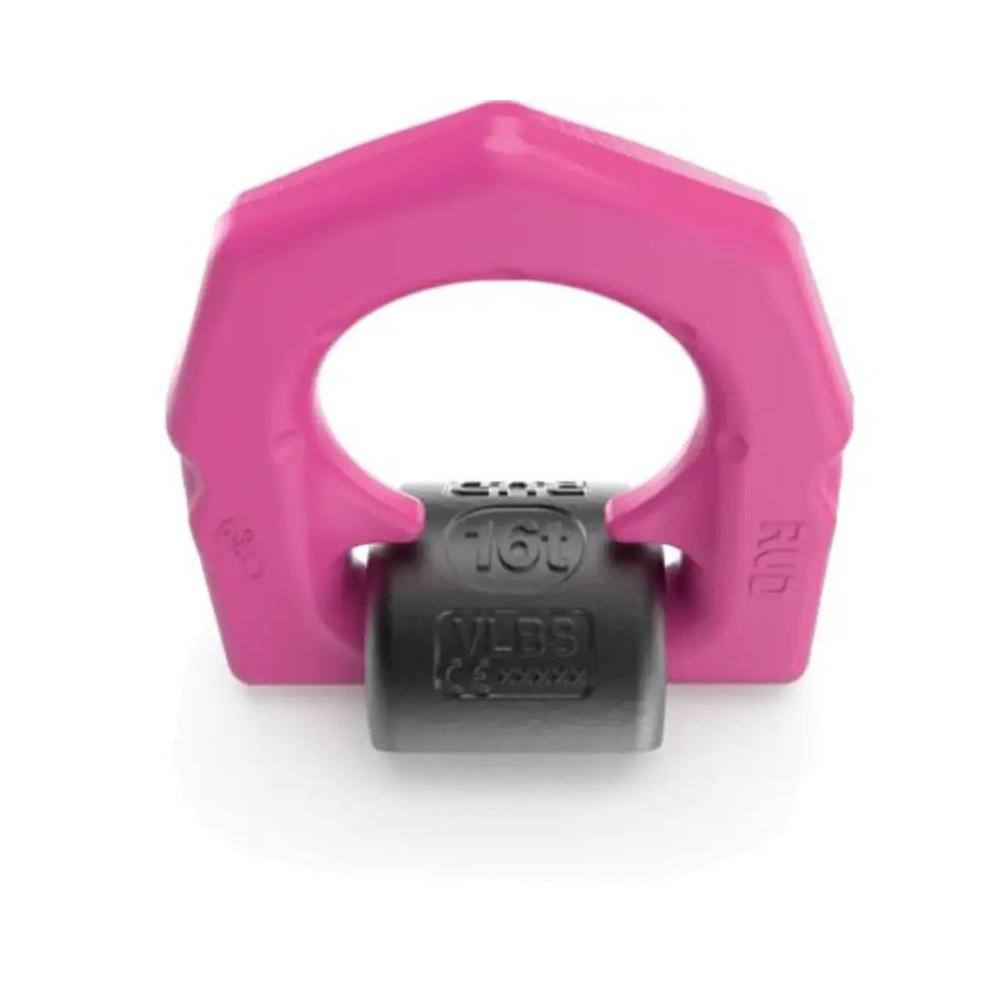

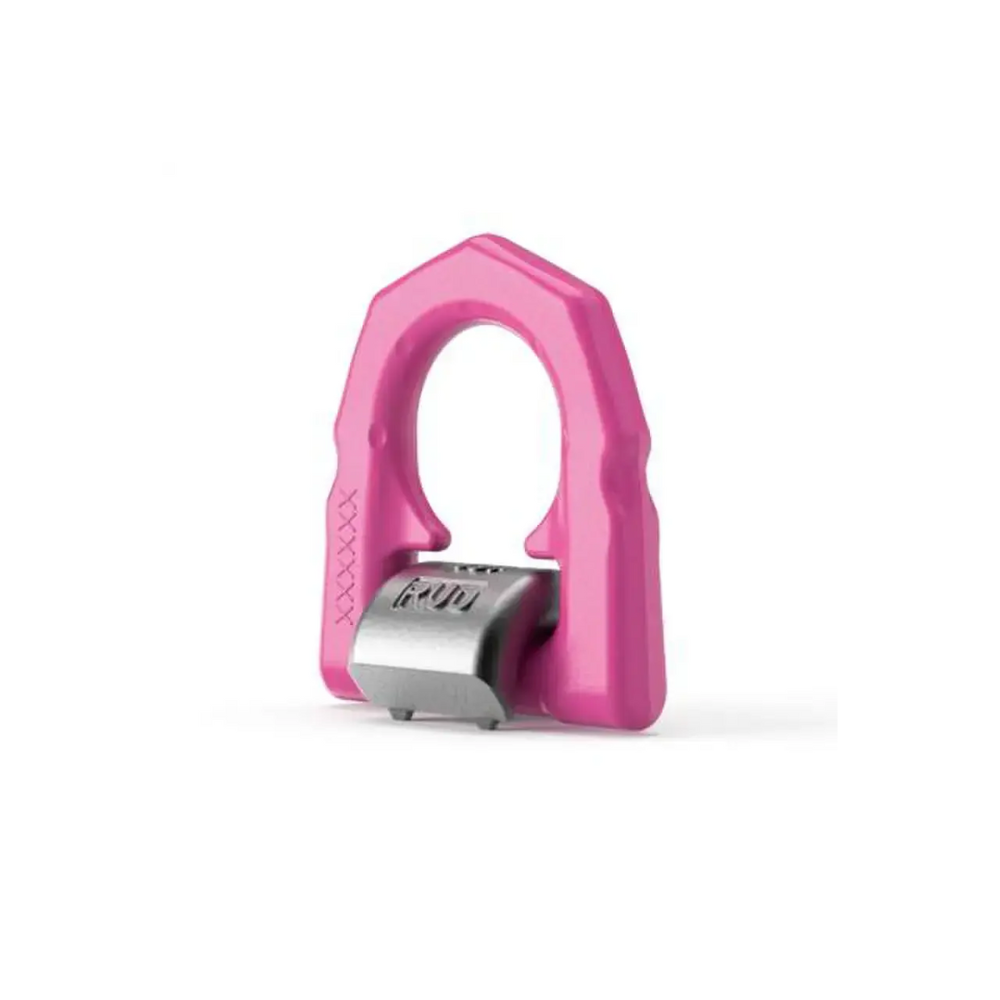

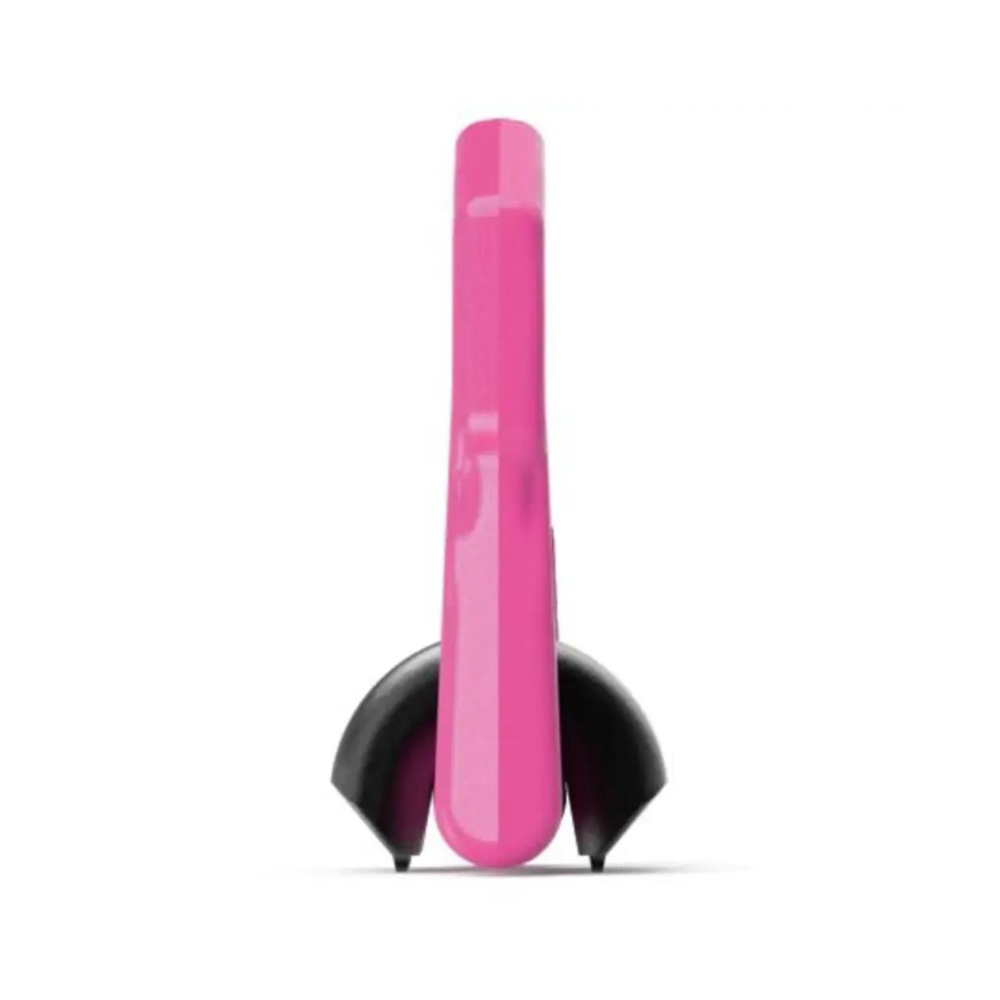

If you're looking for a compact lifting solution that's easy to weld and install, then RUD's VLBS Load Ring is the answer.

Available in working load limits from 1.5t to 16t, and models both with or without spring, the VLBS Load Ring fir Welding features a functionally optimised suspension ring profile to side support side loaded weight.

Designed so that the suspension ring can be pivoted through 180-degrees, working load limit is possible up to 90-degrees in load ring plane. The distance knobs on the weld-on block is designed specifically for the necessary distance for root welding.



Downloads
  • RUD VLBS Load Ring for Welding Data Sheet

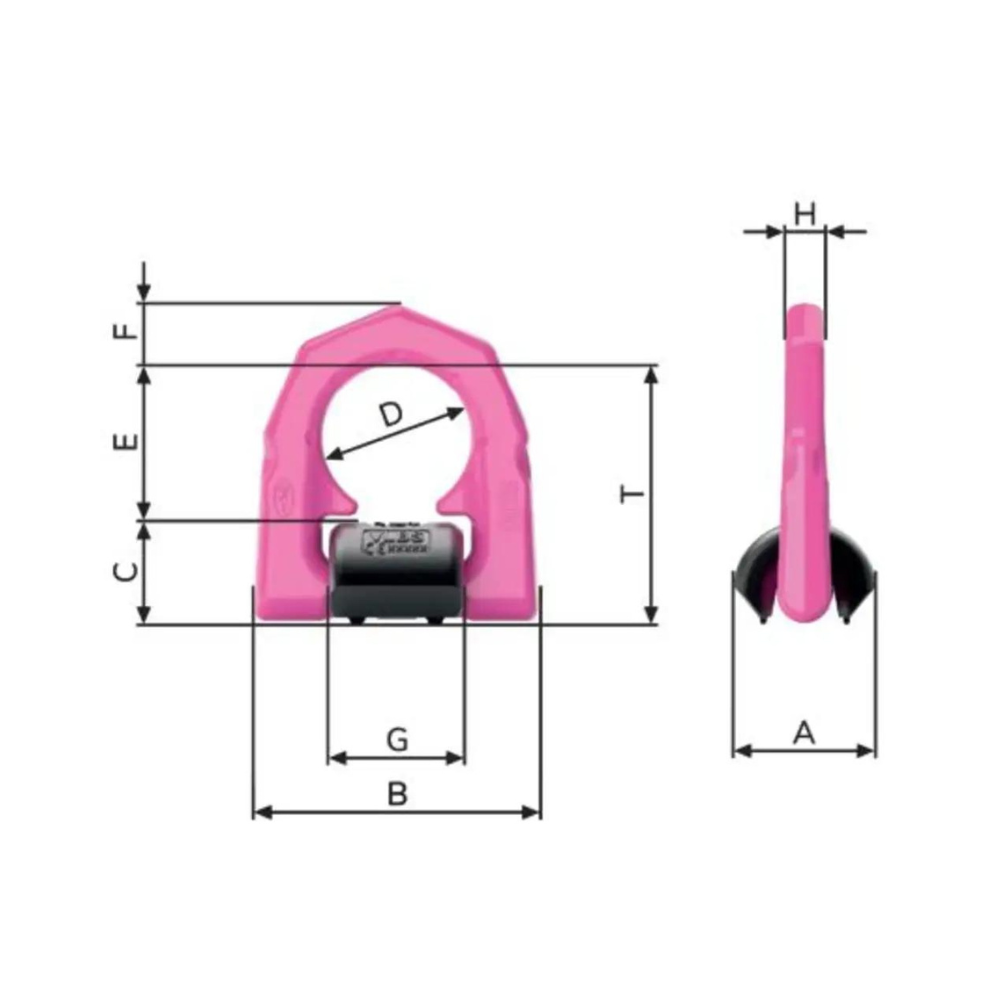

SKU

WLL

(tons)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

Pitch T

(mm)

7993115

1.5

33

66

25

38

40

14

33

14

65

7993118

10

75

129

55

67

71

26.5

60

26.5

126

7993041

16

96

192

70

100

106

40

90

26

176

7995346

2.5

38

77

28

45

47

16

40

16

75

7993116

4

42

87

31

51

52

18

46

16

83

7993117

6.7

61

115

44

67

73

24

60

22.5

117

7993035

1.5

33

66

25

38

40

14

33

14

65

7993040

10

75

129

55

67

71

26.5

60

26.5

126

7906640

16

96

192

70

100

106

40

90

26

176

7994830

2.5

38

77

28

45

47

16

40

16

75

7993036

4

42

87

31

51

52

18

46

16

83

7993037

6.7

61

115

44

67

73

24

60

22.5

117
