Home / RUD VRS-F/VRS Starpoint, Metric Fine-Thread

RUD

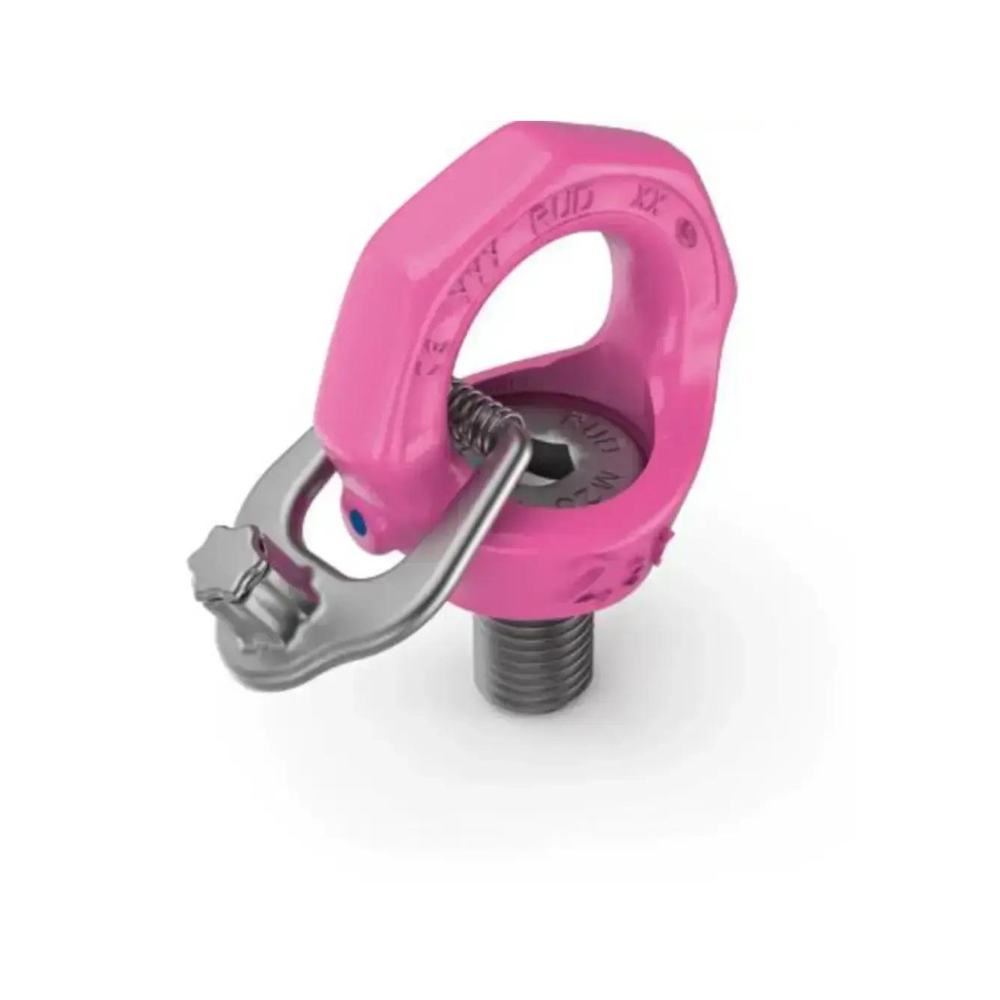

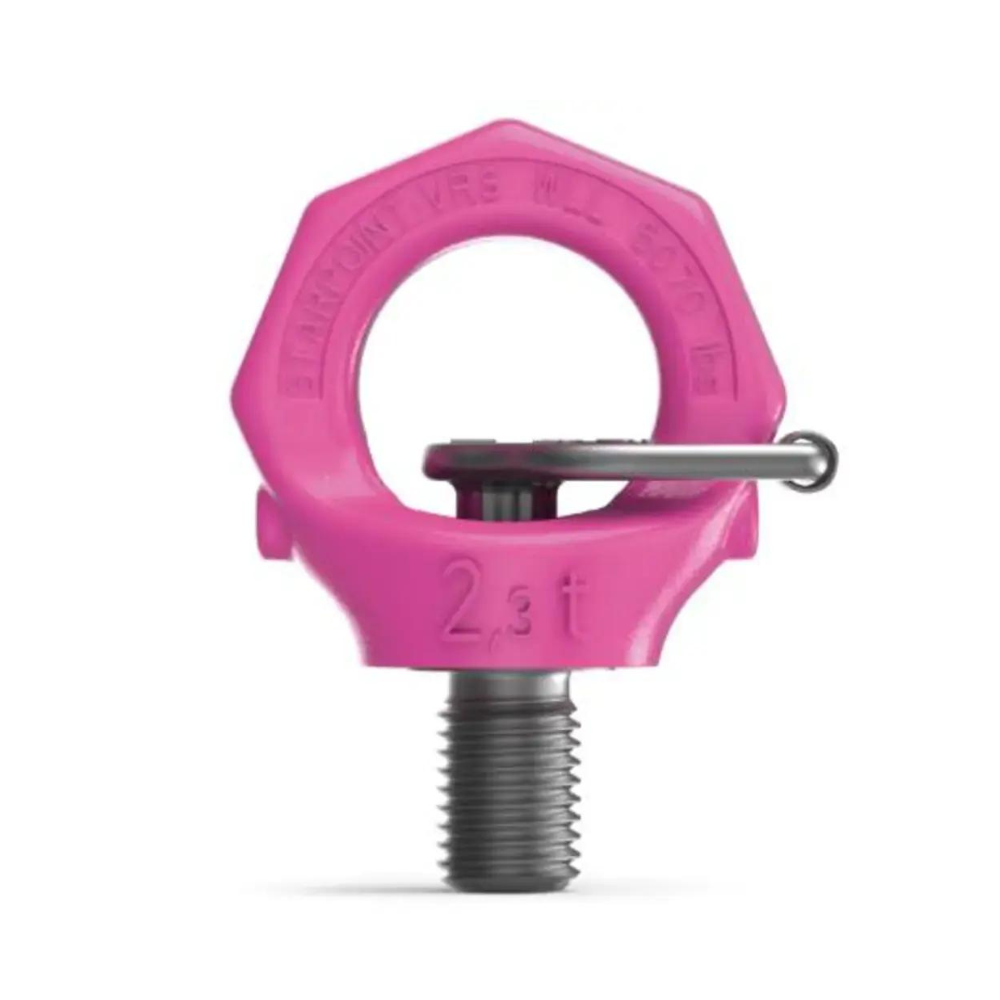

RUD VRS-F/VRS Starpoint, Metric Fine-Thread

RUD VRS-F/VRS Starpoint, Metric Fine-Thread
RUD VRS-F/VRS Starpoint, Metric Fine-Thread
RUD VRS-F/VRS Starpoint, Metric Fine-Thread

RUD VRS-F/VRS Starpoint, Metric Fine-Thread

$301.00

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 1.5t - 7t
  • Metric Fine Thread (M16 - M36)
  • Non Exchangeable RUD-Bolt
  • Minimum WLL markings for all directions
  • 360° adjustable in force direction
  • several times higher WLL than the DIN 580 eye bolt
  • Easy-Fit-Key for easy assembly and disassembly

Customers Also Bought

Description

Features & Specification

Available in working load limits from 0.3 to 12t, RUD's VRS-F Starpoint Metric Fine Thread Eyebolt is the solution to many lifting problems.

With ingenious installation, and super simple alignment, the VRS-F is comes in a wide range of thread sizes, and features a non-exchangeable RUD-bolt, eliminating the risks of improper standard bolt usage.

Minimum working load limits for all directions are marked on each unit for easy identification, giving total peace of mind that you are using the correct lifting point for the job.

Downloads
  • RUD VRS Starpoint Data Sheet

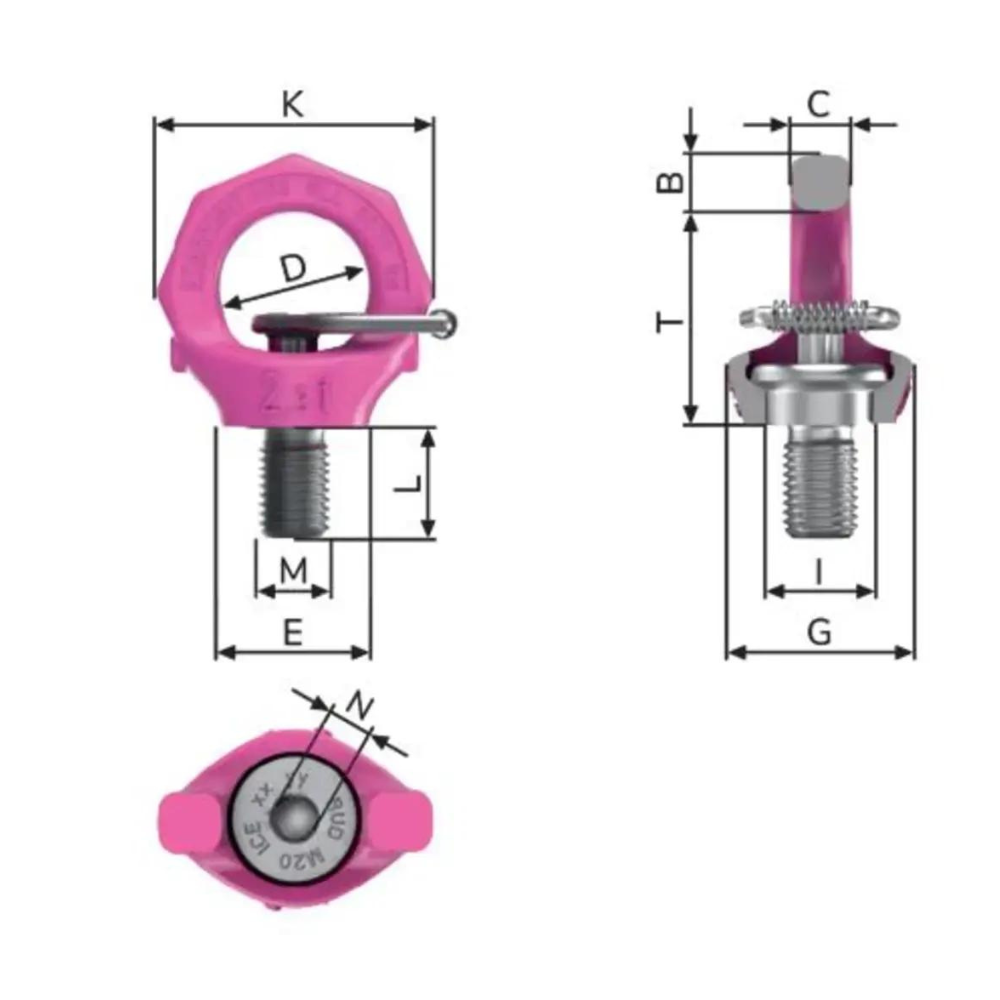

SKU

WLL

(lbs)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

G

(mm)

I

(mm)

K

(mm)

L

(mm)

M

N

(mm)

T

(mm)

7902676

3300

15

13

35

36

40

23.5

65

24

M16x1,5

10

49

7992634

5070

17

16

40

41

50

29.3

76

30

M20x2

12

58

7992566

7050

20

19

49

51

60

35

92

36

M24x2

14

70

7991856

9920

26

24

60

66

75

44

115

45

M30x2

17

87

7992728

15430

32

29

73

76

98

53

135

54

M36x3

22

104
