Home / RUD W-ABA Lifting Point

RUD

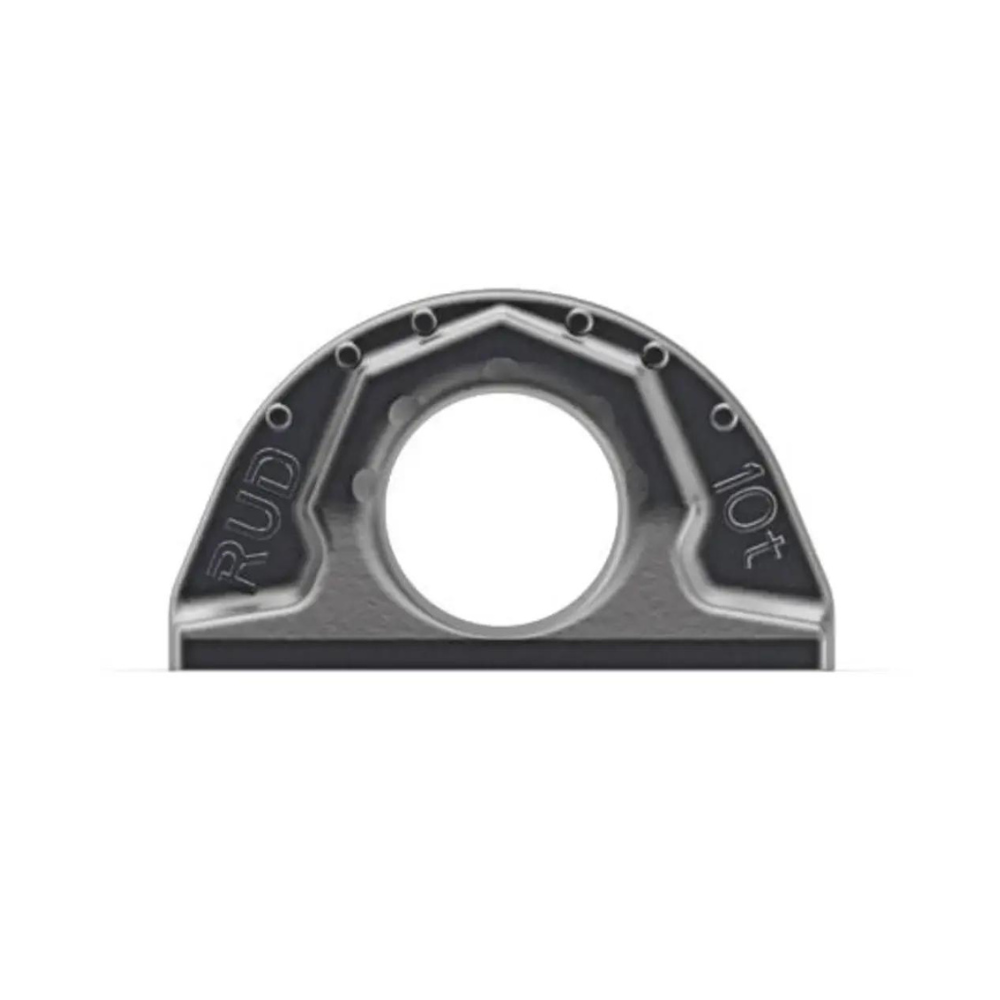

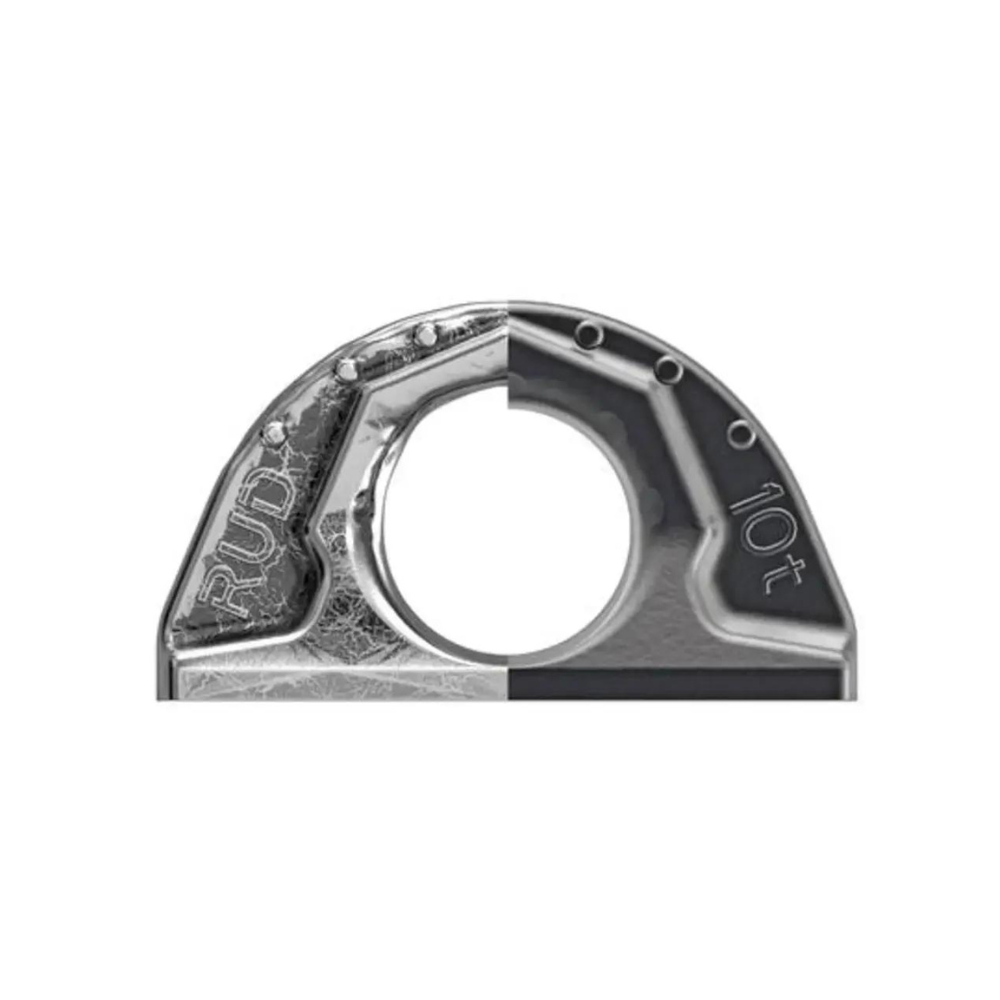

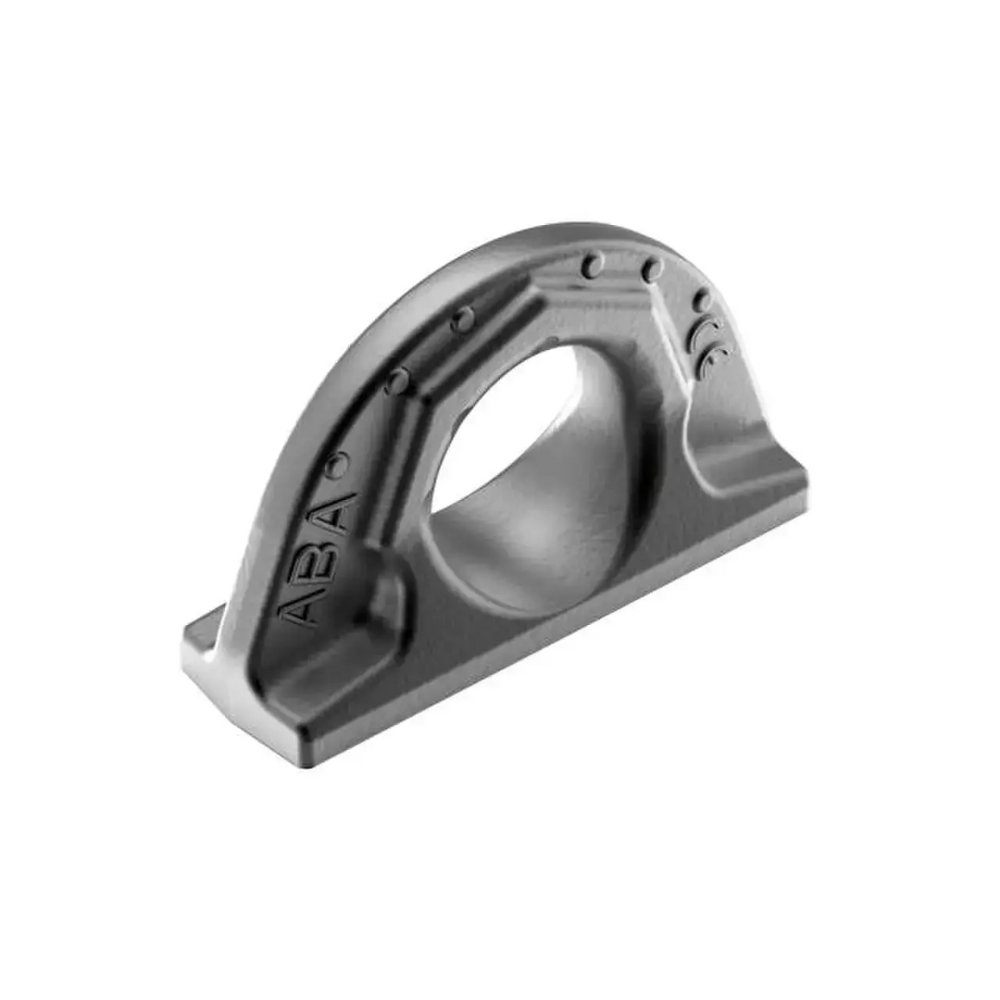

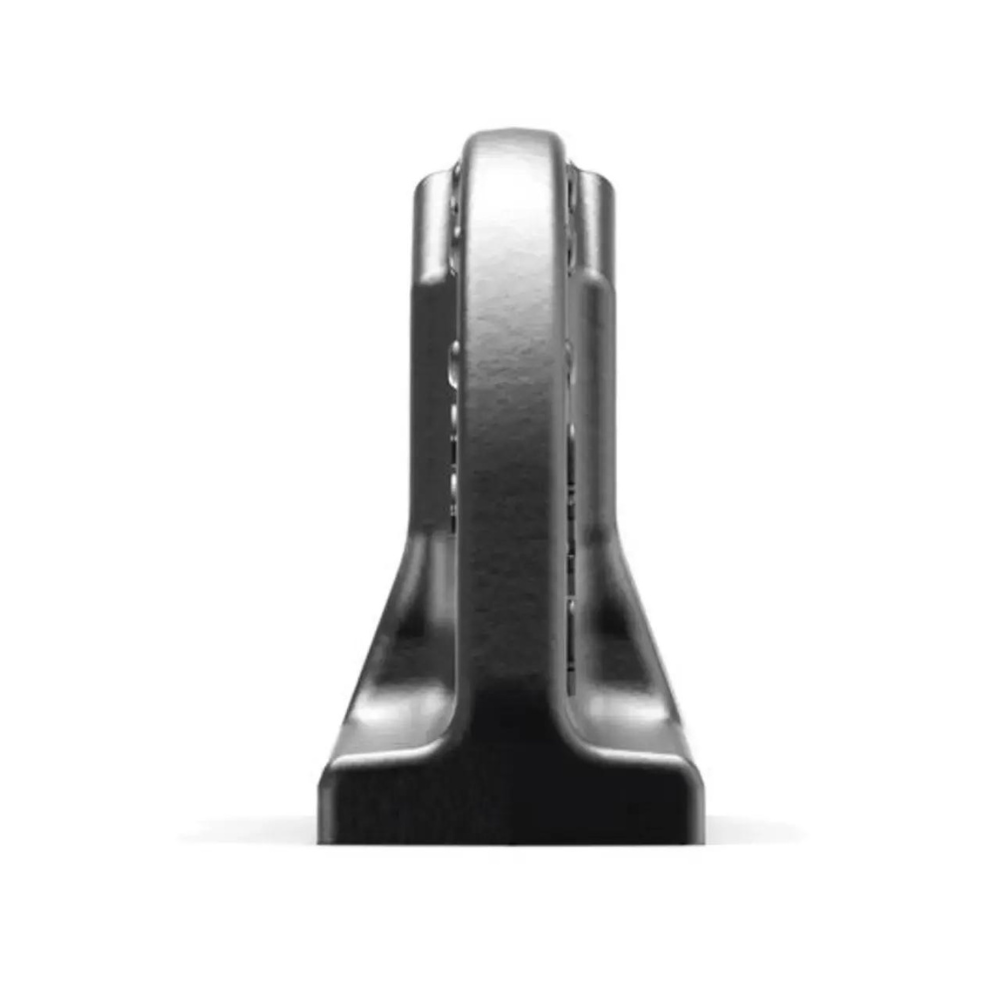

RUD W-ABA Lifting Point

RUD W-ABA Lifting Point
RUD W-ABA Lifting Point
RUD W-ABA Lifting Point
RUD W-ABA Lifting Point
RUD W-ABA Lifting Point

RUD W-ABA Lifting Point

$35.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 0.8t - 31.5t
  • Forged From Single Piece
  • DIN EN 1090
  • Suitable for Outdoors
  • Wear Marking for Easy Wear Identification

Customers Also Bought

Description

Features & Specification

Forged from a single piece, RUD's W-ABA Lifting Point for Welding is pretty much indestructible and ready to out the packet - from all directions.

Boasting a 4:1 safety ratio against breaking, the circular fillet weld arrangement fulfils the requirements of DIN EN 1090, with the endless single seam preventing the formation of contact corrosion, making the ABA Lifting Point ideal for outdoor applications.

Additionally, the single piece design eliminates rattling noises and strong even under strong vibrations and shock loads.

Available in safe working load limits from 0.8t right up to 31.5t, each unit features patented wear markings for easy identification of wear, significantly improving safety.

Downloads
  • RUD W-ABA Lifting Point Data Sheet

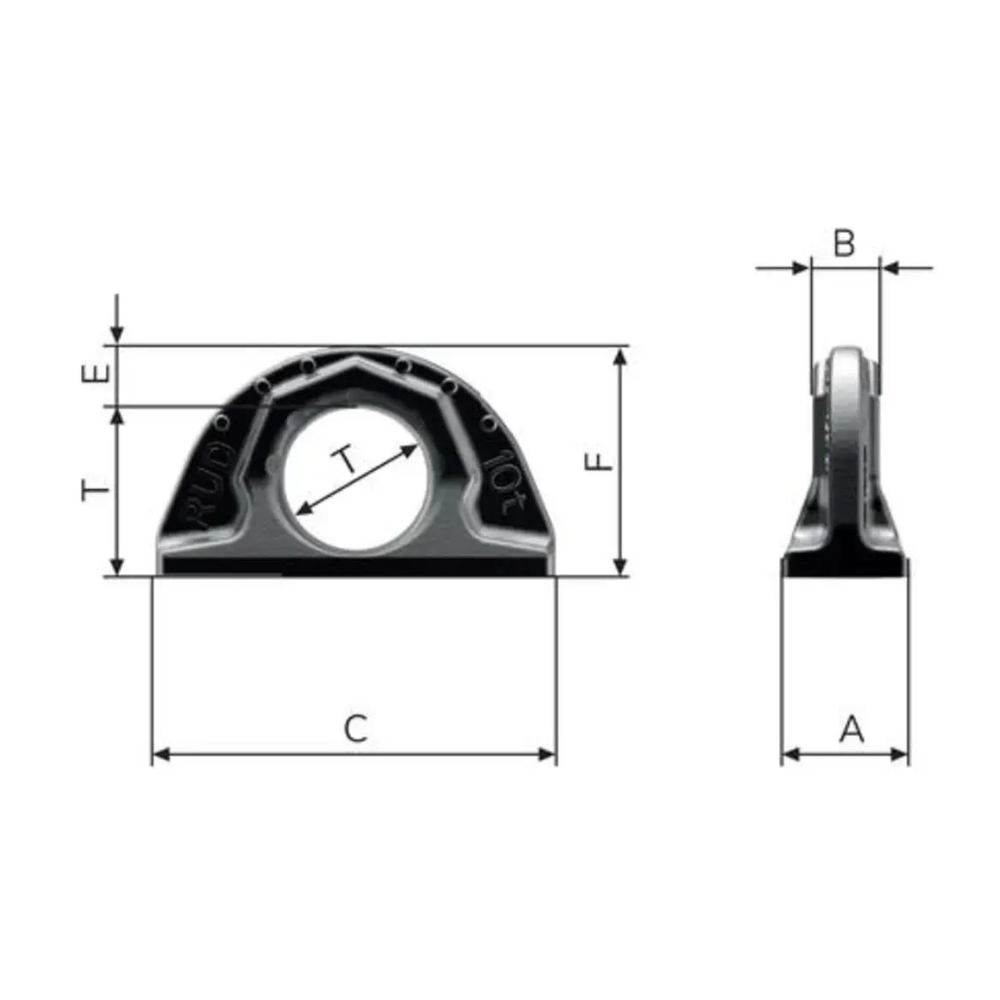

SKU

WLL

(tons)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

Pitch T

(mm)

7907698

0.8

22

12

70

32

12

50

38

7900352

1.6

30

16

100

35

16

57

42

7900355

10

70

38

228

80

35

130

95

7902174

20

90

52

272

115

40

175

135

7900353

3.2

41

23

137

50

21

80

59

7902175

31.5

108

64

320

130

50

204

154

7900354

5

51

27

172

60

28

99

72
