Straightpoint 5000kg Clamp On Line Tensionmeter (COLT)
Straightpoint 5000kg Clamp On Line Tensionmeter (COLT)
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Accurately measures tensions up to 11,000lbs/5000kg and 1”/25mm diameters
- 3m/10ft drop tested
- Wireless Bluetooth 4.1 to Android and iOS app
- 100 hours battery life
- Waterproof – IP67 and NEMA6 rated
- 2 year warranty
Customers Also Bought
COLT, also known as Clamp On Line Tensionmeter , from Straightpoint is an innovative W ire Rope Tensionmeter (shunt tension meter) designed specifically to deliver accurate measurement tensions on wire ropes up to 11,000lbs (5000kg / 5 Tonnes), up to 1"/25mm diameters.
Lightweight, thus easy to handle, it operates utilising an integral, high-accuracy, Bluetooth module that allows the COLT to transmit wirelessly to any smart device (tablet/phone etc.) that runs the Android of iOS app.
Making use of a built-in magnetic smart device holder allows the COLT to be used as a conventional tensionmeter with on-board display. The smartphone can also be handheld or mounted in a suitable location. Once in place, the operator can effortlessly tension cables and wire ropes at any angle.

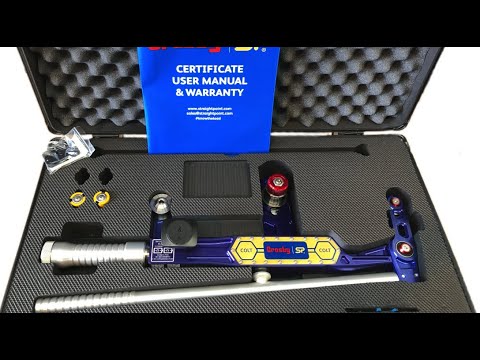

Sufficiently drop tested from 3m/10ft to ensure optimal durability when working at height, it comes with a purpose-built carry case making the COLT portable, while the use of traditional alkaline batteries means that you can keep your device powered up wherever you are.

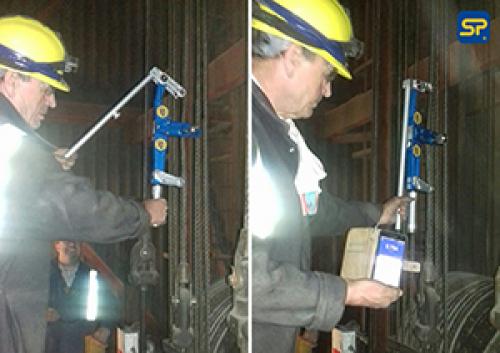

A truly versatile piece of technology, the COLT tensionmeter is perfect for the following applications: Wire maintenance on cell towers, bridges, flare stacks, antennas, and masts; wire tower plumb and tension; turnbuckle tensioning; wire rope installations, comparing, equalising, and measuring; zip line and assault course testing; fall arrest systems; ski lifts; metro, tram, and electric wire testing; plus much much more.

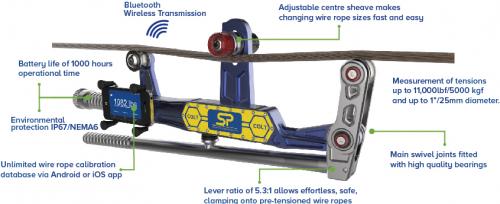

- Cable gauge included
- No easily broken antennae Lever ratio of 5:3:1
- Stand at safe distance of 100m
- Intuitive adjustable sheave
- Man swivel joints with quality bearings
| Part Number | COLT5T |
| Max load | 5000kg |
| 11,000lbs | |
| Resolution | 10kg |
| 20lb | |
| Units | kg, lbs, tonne & kN |
| Min wire rope ∅ | ∅5mm |
| ∅3/16" | |
| Max wire rope ∅ | ∅25mm |
| ∅1" | |
| Max line reduction | 5mm with ∅10mm wire rope |
| 7/32" with ∅3/8" wire rope | |
| Wire rope database | Infinite via Android or iOS app |
| Weight | 3.5kg |
| 7.7lbs | |
| Battery Type | 2 x 'C' cell batteries |
| Battery life | 1000 hours Bluetooth transmission time |
| Operating temperature | -25c to +70c |
| -13F to 158F | |
| Protection | IP67 |
| NEMA 6 | |
| Accuracy | ±3% full scale if wire rope ∅ & construction known |
| Communication | Bluetooth 4.2 |
| Supported OS version | Android 4.4 onwards & iOS 8 onwards |
| Dimension A | 589 mm |
| 23.2" | |
| Dimension B | 254mm |
| 10" | |
| Dimension C | 200mm |
| 7.9" | |
| Dimension D | 200mm |
| 7.9" | |
| Specifications assume COLT used on a wire rope with a fixed and flexible end | |
