Straightpoint Arborist Load Cell Impact Block
Straightpoint Arborist Load Cell Impact Block
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- The safest choice for the working arborist
- Best performance in alignment, resistance and appeal
- Strong and durable
Customers Also Bought

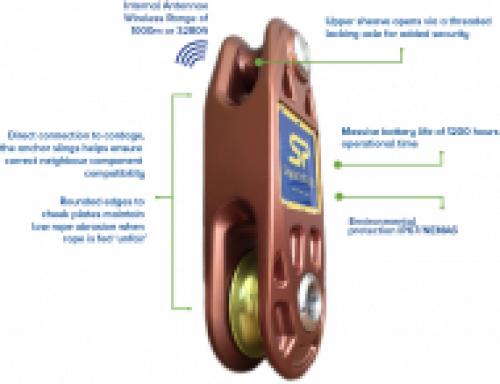

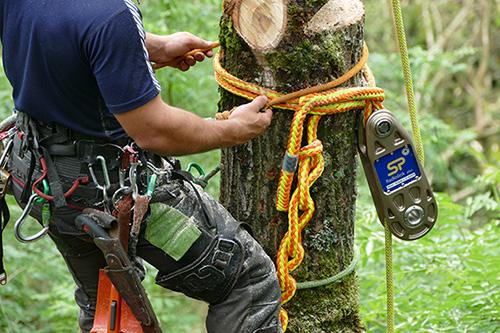

The safest choice for the professional arborist, Straightpoint's load cell impact block has been designed to deliver best-in-class performance, alignment, and resistance, as well as aesthetic appeal, the latter courtesy of its neatly curved profile, expertly combining looks, strength and durability, ensuring a rope-friendly surface for the duration of its shelf-life.
Undergoing rigorous dynamic and static validation testing during its development, this impact block load cell from the SP range is super functional with a truly impressive strength-to-weight ratio.
Teamed up with other wireless dynamic load monitoring equipment and strain gauge technology from SP, real-time data can be recorded by either a handheld controller or via the INSIGHT software available on any tablet or laptop.
- The safest choice for the working arborist
- Best performance in alignment, resistance and appeal
- Strong and durable
- Thorough dynamic and static validation testing
- Impressive strength to weight ratio
| Part Number | WIB6T |
| Capacity | 60kN |
| Resolution | 0.1kN |
| Weight | 6kg |
| 13lbs | |
| Safety factor | 5:1 |
| Battery Type | 4x AA Alkaline |
| Battery Life | 1200Hrs continuous |
| Operating Temp | -10 to 50 deg C |
| 14 to 122˚F | |
| Accuracy | ±0.1% full scale |
| Frequency | 2.4GHz |
| Range | 1000 metres (100m if Bluetooth) |
| 3280 feet (328ft if Bluetooth) | |
| Data Rate | 50Hz upto 200Hz |
| Protection | IP67 |
| Max Rope Ø | 20 |
| 0.75 | |
| Dimension A | 348 |
| 13.70" | |
| Dimension B | 89 |
| 3.5" | |
| Dimension C | 131 |
| 5.16" | |
| Dimension D | 242 |
| 9.53" | |
| Dimension ØE | 27 |
| 1.06" |
