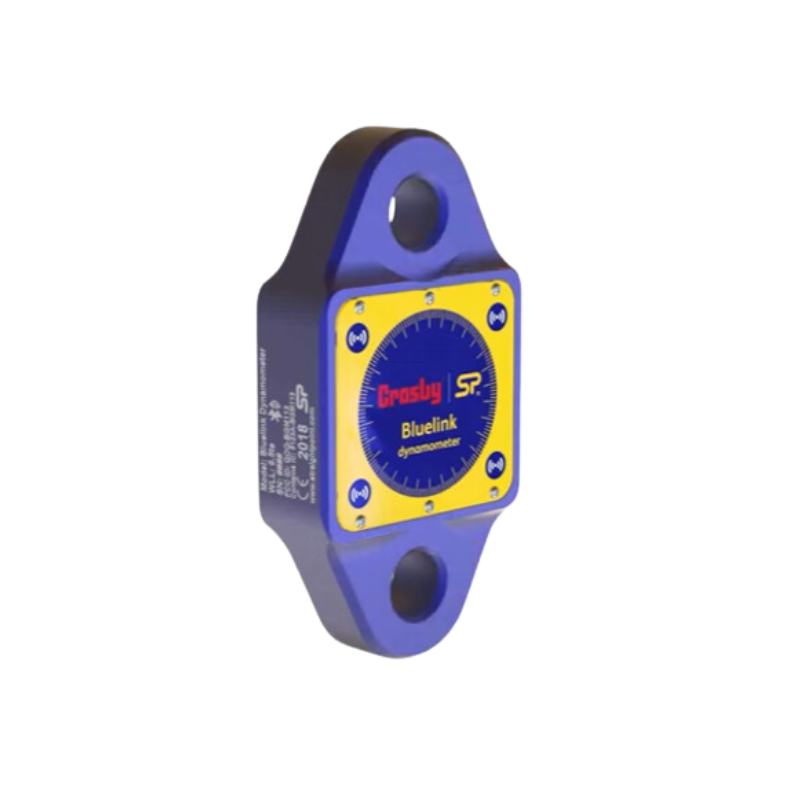

Straightpoint Bluelink Bluetooth Digital Dynamometer
Straightpoint Bluelink Bluetooth Digital Dynamometer
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Bluetooth connection to any iOS and Android smartphone
- 500hr battery life
- IP67 and NEMA6 certified
- 2-year warranty
Customers Also Bought
Designed to replace many of the currently outdated mechanical field products, Straightpoint's Bluelink Digital Dynamometer is the latest in the innovative SP range that features proprietary Bluetooth wireless technology.

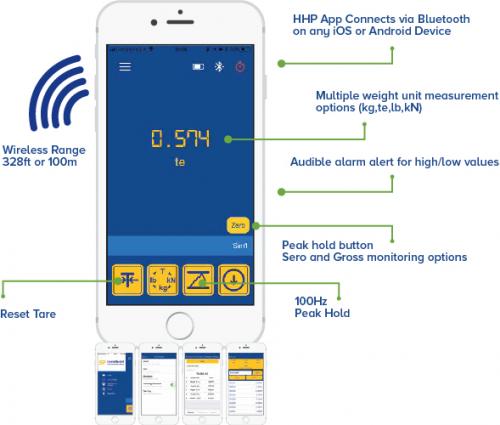

With the capacity to measure loads up to 6.5 tonnes (13,000lbs), users simply connect Bluelink to any iOS or Android device that has access to the free HHP app from Straightpoint. The app allows operators to log data versus time, whilst also adjusting alarm settings that will directly inform users of any overload occurrences.
Manufactured from unmatched aerospace-grade aluminum, the Bluelink features an advanced internal structure that provides an unrivaled strength-to-weight ratio, while the use of individually sealed enclosures means that this loadcell's electronics are IP67 and NEMA6 environmentally protected - making it highly suited to even the harshest and most rugged environments.
Furthermore, boasting a wireless range of up to 100m (328ft), safety is enhanced as there is no requirement to read the load on the loadcell itself.

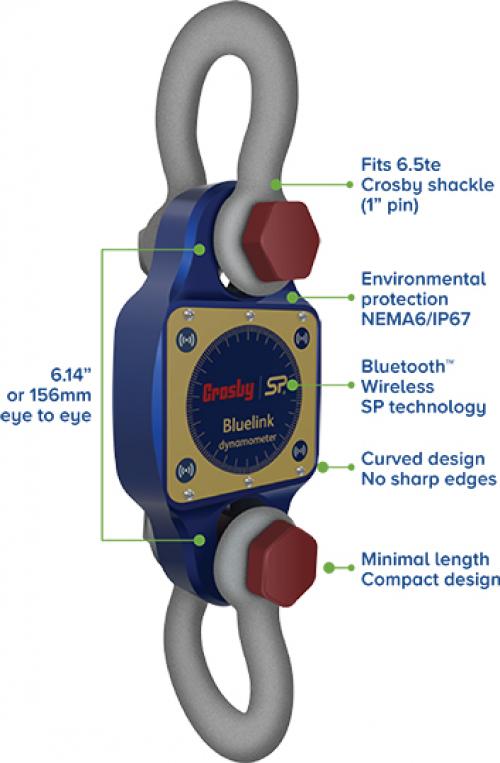

SP's BLuelink has been designed to minimize headroom - only 6" from eye-to-eye - but don't let its compact stature fool you, this lightweight module simply does not sacrifice on strength with an exceptional safety factor of more than 500%.
Simply powered by 4x traditional AA alkaline batteries, Bluelink has an operating time of 500 hours, while the internal antennae ensures loads to an accuracy of 0.1% FS are safely transmitted.
- Bluetooth connection to any iOS and Android smartphone
- 500hr battery life
- IP67 and NEMA6 certified
- 2-year warranty
- 90db audible alarm alerts
- Wireless range 100m/328ft
- 100Hz peak hold
- Internal antennae
- Fatigue rated
- F.E.A validated design
- Complies with ASME B30.26
- RFID tagged
- Carry case
- 4 x AA batteries
- Calibration and proof test certificate
BLUELINK SPECIFICATIONS |
|
Part Number: | BLD6.5t |
Capacity | 6.5te |
14,300lbs | |
Resolution | 0.001te |
2lb | |
Weight | 1.5kg |
3.3lbs | |
Safety Factor | 5:1 |
Battery Type | 4 x AA alkaline batteries |
Battery Life | 500hrs |
Operating Temp | -10°c to +50°c / 14˚ to 122˚F |
Accuracy | +/- 0.2% of full scale |
Range | 100 metres / 328 feet |
Data Rate | 3Hz |
Protection | IP67 / NEMA6 |

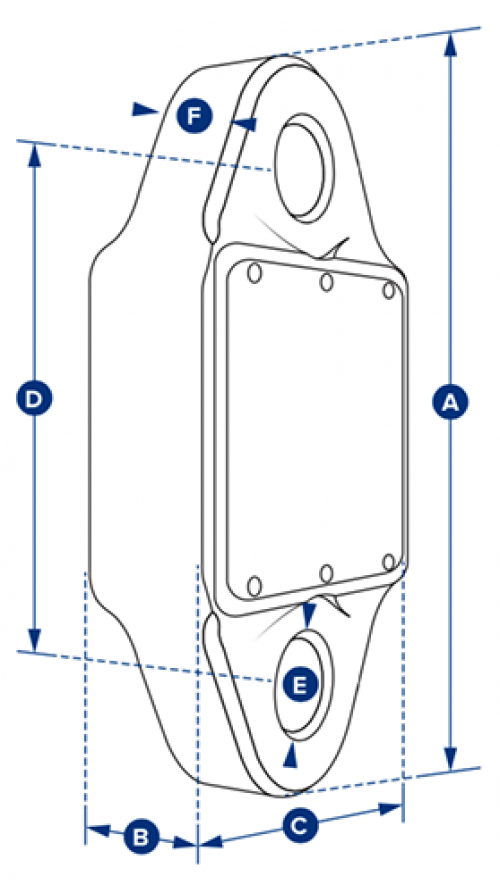

Dimension A | 224 |
8.82 | |
Dimension B | 44 |
1.73 | |
Dimension C | 113.6 |
4.47 | |
Dimension D | 156 |
6.14 | |
Dimension ØE | 27.5 |
1.08 | |
Dimension F | 26 |
1.02 |
