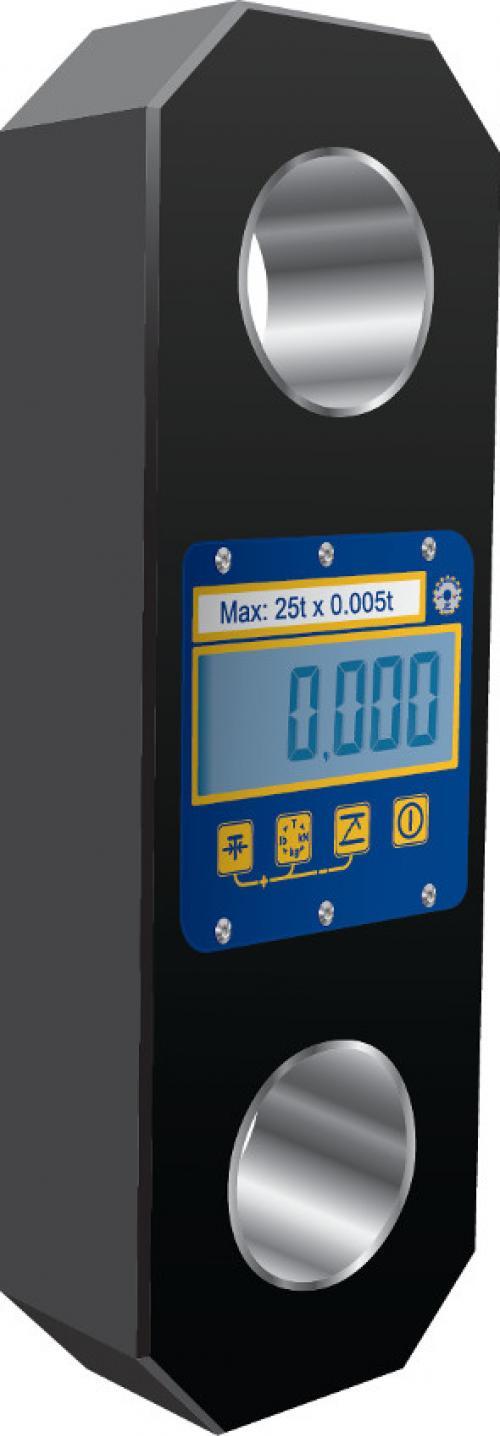

Straightpoint LoadLink Plus Load Cell
Straightpoint LoadLink Plus Load Cell
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Up to 300,000kg capacity
- Large LCD display
- High accuracy
Customers Also Bought
Always at the forefront of load measuring technology, Straightpoint's LoadLink Plus is renowned for being the first and original electronic force measurement device that features an integrated integral digital display.

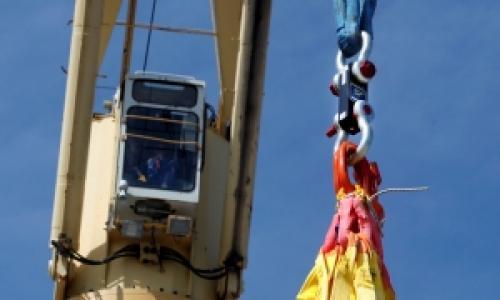

Used on a frequency for heavy lifts and monitoring of tension and loads ranging from 1 tonne right up to 300 tones, the LoadLink Plus Load Cell is regularly used by a variety of commercial and industrial industries such as transportation, manufacturing, agriculture, oil & gas, utilities, aerospace, and clean energy.
High-speed read rates of 500/seconds are achieve courtesy of a high-precision advanced microprocessor electronic system that can be found in the majority of Straightpoint's portfolio. Combining extreme resistance to industrial-level noise with remarkable stability, the LoadLink Plus rightly stands out from the crowd and you can see why it's the first choice for many of our customers.
Manufactured from high-grade aircraft quality aluminum, the premium quality LoadLink Plus has an unmatched weight-to-strength ratio, as a result of Straightpoint's unrivalled innovation and internal design structure.

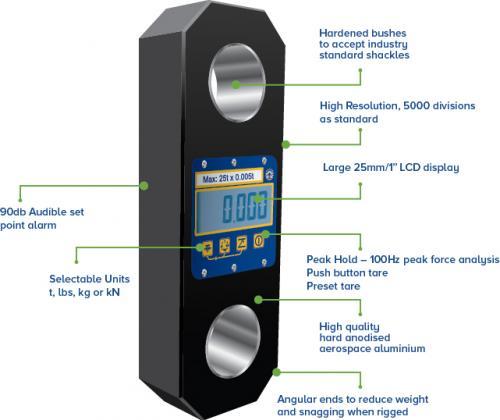

- Large LCD display
- High accuracy
- Selectable units
- High resolution
- Peak hold
- Tare
- Lightweight
- Preset tare
- Overload counter
- Audible set pint alarm
- Choice of units lbs, kg, kN and tonnes
- RS-485 serial output
- Design validated by F.E.A
- Due to this high stability gives the loadlink plus over 5000 divisions and the highest standard resolution of any digital dynamometer on the market today.

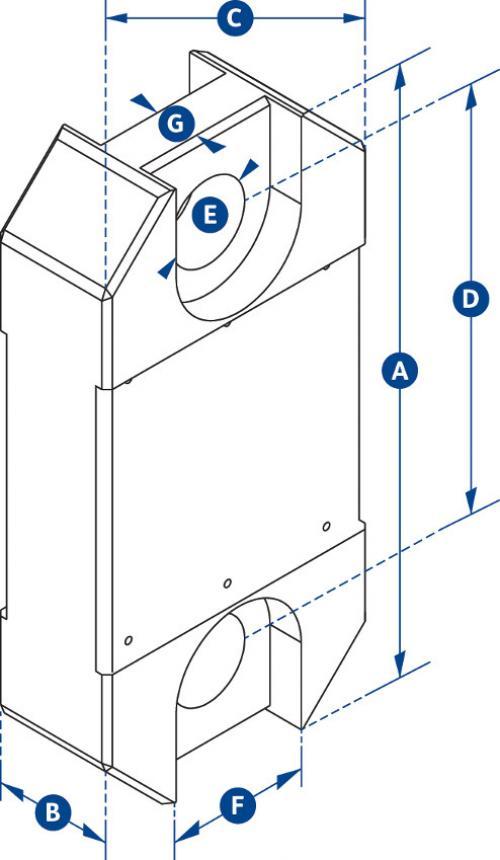

| Model | Capacity (kg) | Weight (kg) | Safety factor | Battery Type | Battery life | Display Type | Operating Temperature | Protection | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Crosby Shackle Size | Loading Pin Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LLP1T | 1000 | 1.4 | 12:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 204 | 43 | 101 | 146 | 24.5 | 48 | 19 | G2130 | 19 |
| LLP2T5 | 2500 | 1.4 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 204 | 43 | 101 | 146 | 24.5 | 48 | 19 | G2130 | 19 |
| LLP5T | 5000 | 2 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 249 | 43 | 101 | 165 | 38 | 66 | 32 | G2130 | 25 |
| LLP12T | 12,000 | 3.2 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 305 | 47 | 101 | 193 | 47.5 | G2130 | 35 | ||
| LLP25T | 25,000 | 5 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 340 | 60 | 115 | 215 | 55 | G2130 | 51 | ||
| LLP35T | 35,000 | 8.6 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 393 | 60 | 115 | 215 | 55 | G2130 | 57 | ||
| LLP50T | 50,000 | 11.5 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 424 | 75 | 163 | 230 | 76 | G2140 | 57 | ||
| LLP75T | 75,000 | 16 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 470 | 75 | 202 | 260 | 76 | G2140 | 70 | ||
| LLP100T | 100,000 | 34 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 608 | 99 | 303 | 360 | 109 | G2140 | 83 | ||
| LLP150T | 150,000 | 46 | 4:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 670 | 99 | 303 | 360 | 109 | G2140 | 95 | ||
| LLP200T | 200,000 | 72 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 700 | 144 | 320 | 350 | 132 | G2140 | 121 | ||
| LLP250T | 250,000 | 72 | 4:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 700 | 144 | 320 | 350 | 132 | G2140 | 127 | ||
| LLP300T | 300,000 | 118 | 5:1 | 9v PP3 | 80 Hours Continuous | 6 Digit 25mm LCD | -10˚C Up to 50˚C | IP65 | 806 | 150 | 426 | 350 | 160 | G2140 |
152
|
