Straightpoint Loadpins

Capacity | Product Code:

$4,065.00

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Up to 1500t capacity
Manufactured from high tensile stainless steel
10 Meter long cable as standard, can be upgraded up to 1500 meters depending on output format
Design Validated by F.E.A

Customers Also Bought

Description

Features & Specification

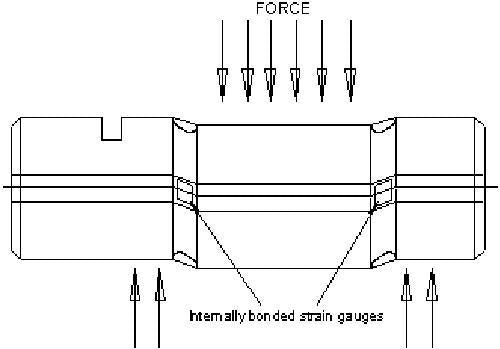

Straightpoint Load Measuring Pins are specifically designed for applications (see list below) where an end of line load cell cannot be utilised and an integrated solution is necessary.

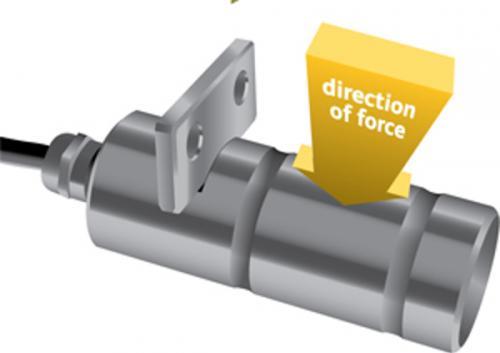

These Load Pins are manufactured from high-grade tensile stainless steel and are usually supplied complete with an anti-rotation plate as a cabled or wireless solution. Straightpoint's Load Measuring Pins are designed and built to withstand even the harshest operating environments, such as offshore, oil & gas, and marine - making them highly suited in exposed situations and even withstand being submerged in seawater at extreme depths.

Typically connected to the handheld Plus device or supplied in an array of output formats to include mV/V, RS-422, RS-485, utilizing ASCII, MODBUS TRU and CAN-BUS protocols, or an analog output such as 4-20mA for PLC integration, these Load Pins come supplied with a 10m cable as standard, however, it is possible to get lengths of up to 1500m depending on output format. *Please advise cable configuration at time of order (radial or axial pin exit). If you require a load pin to a particular size, please contact our Sales Team.

Applications include: Marine tanks, Offshore Platform; Elevator and Floor Conveyor Testing & Certification; Bearing Block, Pivots & Shackles; Cable Laying Equipment; Rope, Chain & Brake Anchors; Bridge SUpprt Cables; Mooring Lines; Pulleys & Sheaves; Crane Cables; Hoisting Gear; Winches.

Up to 1500t capacity
Manufactured from high tensile stainless steel
10 Meter long cable as standard, can be upgraded up to 1500 meters depending on output format
Operating temperature: -20˚C Up to 70˚C
IP67 rated
Safety Factor: 300% of WLL

Download Manuals

Straightpoint Loadpins Data Sheet

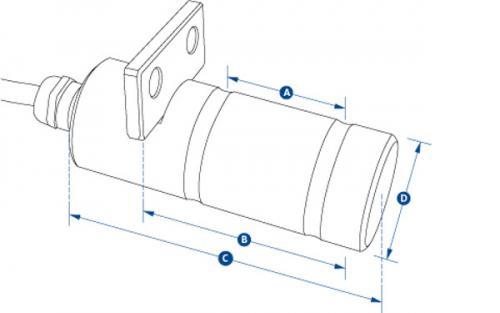

Model	Capacity (kg)	Weight (kg)	Safety Factor	Operating Temperature	Protection	A (mm)	B (mm)	C (mm)	D (mm)
LP500kg	500	0.9	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	24	36	70	20
LP1T	1000	1	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	35	49	80	20
LP2.5T	2500	1.2	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	45	70	100	25
LP3.5T	3500	1.4	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	50	75	105	30
LP6.5T	6500	2	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	63	95	125	40
LP15T	15,000	3.1	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	75	114	150	50
LP25T	25,000	5.6	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	89	152	195	63
LP50T	50,000	8.6	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	102	178	225	75
LP100T	100,000	11.8	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	110	190	230	88
LP250T	250,000	29.8	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	130	220	300	125
LP500T	500,000	79.2	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	225	370	440	170
LP750T	750,000	146	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	295	500	590	200
LP1000T	1,000,000	275	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	360	612	712	250
LP1500T	1,500,000	389	300% Of WLL	-20˚C Up to 70˚C	IP67 (IP68 available as an option)	430	731	832	275
