Straightpoint Miniweigher Plus Compact Crane Scale

Straightpoint Miniweigher Plus Compact Crane Scale
Straightpoint Miniweigher Plus Compact Crane Scale

Straightpoint Miniweigher Plus Compact Crane Scale

$3,368.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

  • Capacity: 100kg to 5 tonnes
  • Full function push button control
  • Large LCD display
  • Overload counter
  • Battery Life: 80 hours continuous
  • Operating Temperature: -10 ° C to +50 ° C

Customers Also Bought

Description

Features & Specification

Available in 100kg, 250kg, 500kg, 1 tonne, 2 tonne and 5 tonnes, Straightpoint's Miniweigher Plus is a small and compact mini crane weighed scale suited to the most common lifting applications. In fact, across the globe, this is Straightpoint's most popular product thanks to its large capacities, robust construction, high accuracy, compact stature, and extreme portability.

Featuring SP's advanced microprocessor-based electronics that provide the Miniweigher Plus with high-speed read rates (500/sec) extreme resistance to industrial noise levels and unrivaled stability. In fact, the high stability characteristic allows the highest standard resolution of any compact digital crane scale on the market.

Designed with full push-button controls for tare, and has a full choice of units (lbs, kg, kN, and tonnes), peak hold, preest tare, an audible setpoint alarm, and an overload counter, the Miniweigher Plus also, features an RS-485 serial output adding to its vast functionality and versatility.

Speaking with our loyal customer base, the Miniweigher Plus is often mounted between a winch and tripod, allowing for load monitoring and safe lowering and raising of equipment and personnel, proving itself to be the MUST-HAVE tool for underground sewer, water, gas, and utility vault access.

  • Large LCD display
  • High Accuracy
  • Selectable Units
  • High Resolution
  • Compact Size
  • Tare
  • Preset Tare
  • Lightweight
  • Overload Counter
  • Audible Set Point Alarm
  • RS-485 Serial Output
  • Corrosion Resistant Finish
Downloads
  • Straightpoint Miniweigher Plus Crane Scale Data Sheet

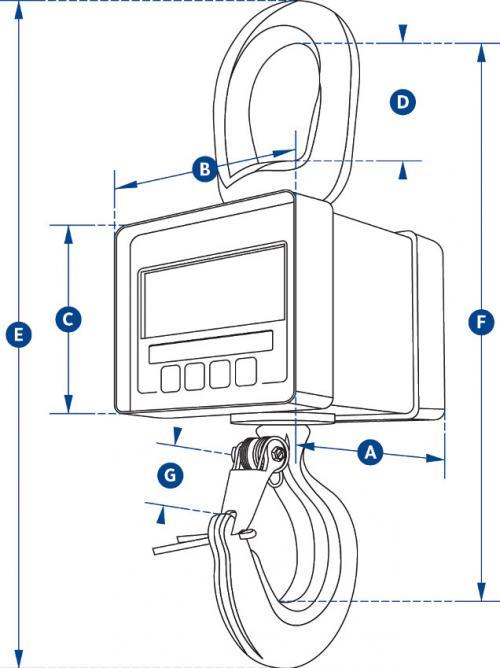

Model Capacity (kg) Weight (kg) Safety Factor Battery Type Battery Life Operating Temperature Protection A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
MWP100KG 100 1.5 10:1 9V PP3 80 Hours Continuous -10˚C Up to 50˚C IP65 82 113 81 50 240 208 22
MWP250KG 250 1.5 5:1 9v PP3 80 Hours Continuous -10˚C Up to 50˚C IP65 82 113 82 50 240 208 22
MWP500KG 500 1.5 5:1 9v PP3 80 Hours Continuous -10˚C Up to 50˚C IP65 82 113 82 50 240 208 22
MWP1T 1000kg 1.5 5:1 9v PP3 80  Hours Continuous -10˚C UP to 50˚C IP65 82 113 82 50 240 208 22
MWP2T 2000kg 3.1 5:1 9v PP3 80 Hours Continuous -10˚C Up to 50˚C IP65 117 112 92 64 320 271 28
MWP5T 5000kg 8.7 5:1 9v PP3 80 Hours Continuous -10˚C Up to 50˚C IP65 136 112 92 98 444 365 42
