Straightpoint Towcell Towbar Load Cell
Straightpoint Towcell Towbar Load Cell
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- 500hr battery life
- Bluetooth connection range 100m (328ft)
- IP67 and NEMA6 certified
- Fits any standard 2” tow-hitch
- 2 year warranty
Customers Also Bought

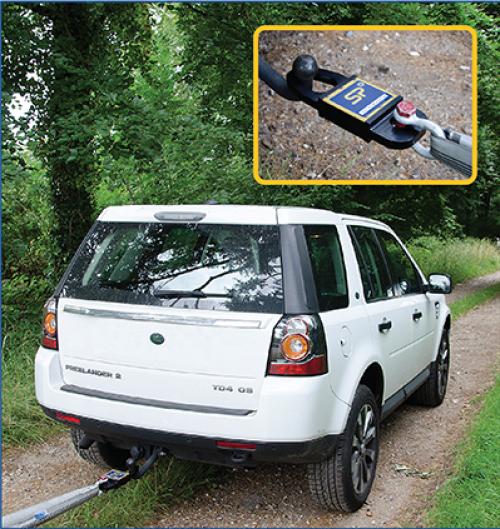

Designed and manufactured for precise vehicle load monitoring, as well as emergency services and rescue & salvage operations, Straightpoint's 25kN wireless tension Towbar Load Cell - TOWCELL - has been engineered to provide increased safety through the avoidance of costly overloads by delivering real-time monitoring of tensile towing forces during recovery, clearance, and salvage situations.
Modeled on Straightpoint's popular 'RadioLink Plus, ' Towcell boasts a compact and lightweight profile, but remains a truly rugged piece of equipment courtesy of its aircraft-grade aluminum structure that offers an excellent strength-to-weight ratio. The separate internal structure means that all internal electronic components are IP67 and NEMA6 protected, adding to its robustness, providing peace of mind that you won't short circuit.
Operated via 2 conventional AA alkaline batteries, Towcell can be installed in a matter of seconds and offers an exceptional 500 hours service life (Battery Life).
- 500hr battery life
- Bluetooth connection range 100m (328ft)
- IP67 and NEMA6 certified
- Fits any standard 2” tow-hitch
- 2 year warranty
- F.E.A. validated design
- RFID tagged
TOWCELL SPECIFICATIONS |
|
Part Number: | Towcell-Bluetooth |
Capacity | 25kN |
Resolution | 0.01kN |
Weight | 1.4kg |
3lbs | |
Safety Factor | 5:1 |
Battery Type | 4 x AA alkaline batteries |
Battery Life | 500Hrs continuous |
Operating Temp | -10°c to +50°c / 14˚ to 122˚F |
Accuracy | +/- 0.1% FS |
Range | 100 metres / 328 feet |
Data Rate | 50Hz |
Protection | IP67 / NEMA6 |

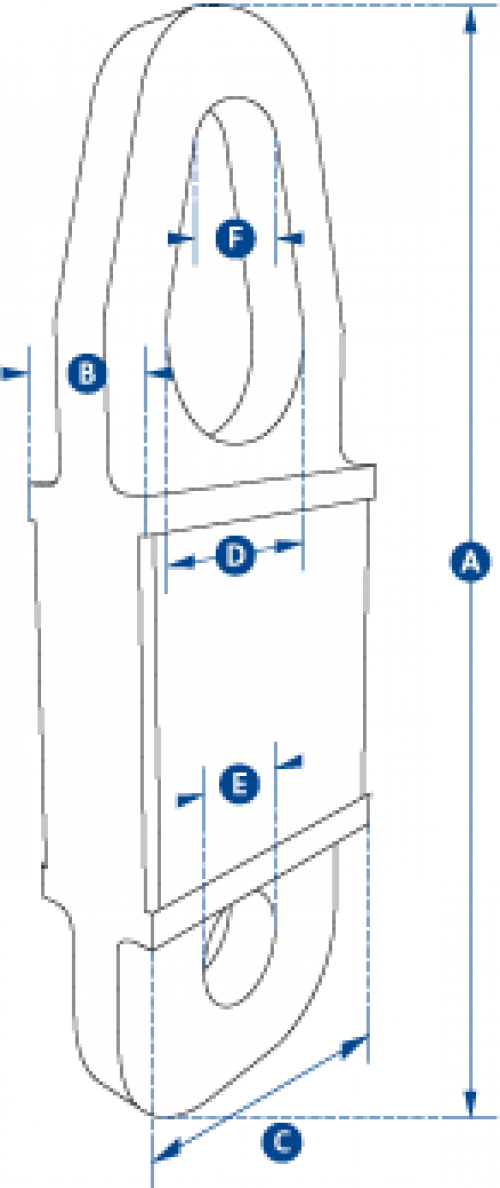

Dimension A | 300mm |
11.81" | |
Dimension B | 43mm |
1.70" | |
Dimension C | 104mm |
4.09" | |
Dimension ØD | 51mm |
2.00" | |
Dimension ØE | 27mm |
1.06" | |
Dimension ØF | 31mm |
1.22" |
