Straightpoint Wireless Loadshackles

Capacity | Product Code:

Bluetooth Version

$3,761.00

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Up to 400,000kg capacity
IP67/NEMA6 Environmental protection
Proprietory 2.4GHz wireless
Bluetooth version available via dropdown

Customers Also Bought

Description

Features & Specification

Designed for applications that require low headroom, or for extremely heavy lifts, Straightpoint's Wireless Loadshackles are manufactured with capacities of up to 400 tonnes.

Boasting a long-range 2.4GHz with a 700m range, for use with the Straightpoint HHP Handheld Display or load monitoring software.

Each SP wireless loadshackle has been fully proof tested and fitted with a hard-anodized aluminum enclosure that houses all electronics. The internal chassis housed within the aluminum enclosure is IP76/NEMA6 environmentally certified, rendering the SP wireless loadshackle as weatherproof, even when the battery cover is absent.

As standard, this wireless loadshackle is equipped with an internal antennae that transmits an update rate of 3Hz, which can be configured to easily run at speeds of 200Hz when dynamic load measurement is required.

Bluetooth version available via dropdown

Proprietary 2.4GHz wireless
Error Free data transmission
Environmentally sealed
Internal antenna
Remote on/off
Industry-leading wireless range up to 700m
Unmatched Battery life
Low headroom
Lightweight
Each WLS is supplied with a load centring bobbin
Designed and validated by F.E.A

Download Manuals

Straightpoint Wireless Loadshackles Data Sheet

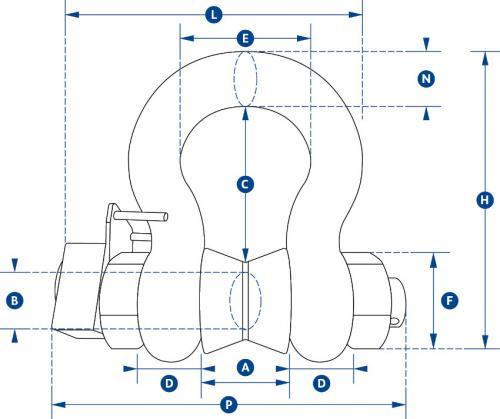

Model	Capacity	Weight (kg)	Saftey factor	Battery Type	Battery Life	Operating Temp	Frequency	System Range	Data Range	Protection	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	H (mm)	L (mm)	N (mm)	P (mm)
WLS3.25T	3250kg	2.8	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	26.9	19.10	60.50	16	42.90	38.10	106	132	17.50	148
WLS6.5T	6500kg	3.2	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	36.60	25.40	84	22.40	58	53	148	158	24.60	180
WLS12T	12,000kg	8	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	51.50	35.10	119	31.80	82.50	76	210	196	35.1	218
WLS25T	25,000kg	18	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	73	51	178	44.5	127	106	313	281	57	293
WLS55T	55,000kg	25	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	82.5	57	197	51	164	122	348	306	61	317
WLS85T	85,000kg	45	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	105	70	267	66.50	184	145	453	368	79	394
WLS120T	120,000kg	85	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	127	82.50	330	76	200	165	546	408	92	441
WLS200T	200,000kg	215	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	184	121	397	95.5	279	267	743	578	152	537
WLS300T	300,000kg	346	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	231	152	495	121	330	305	895	680	172	634
WLS400T	400,000kg	520	5:1 When Used With Bobbin	Load Cell 4xAA Alkaline	Load Cell 1,200 Hours Continuous	-10˚C Upto +50˚C	2.4GHz	700 Meters	3 Updates Per Second	IP67	210	178	572	165	330	356	1022	705	184	726
