Home / Tandemloc AT14 Series Telescopic Spreader Beams (Without Top Sling)

Tandemloc

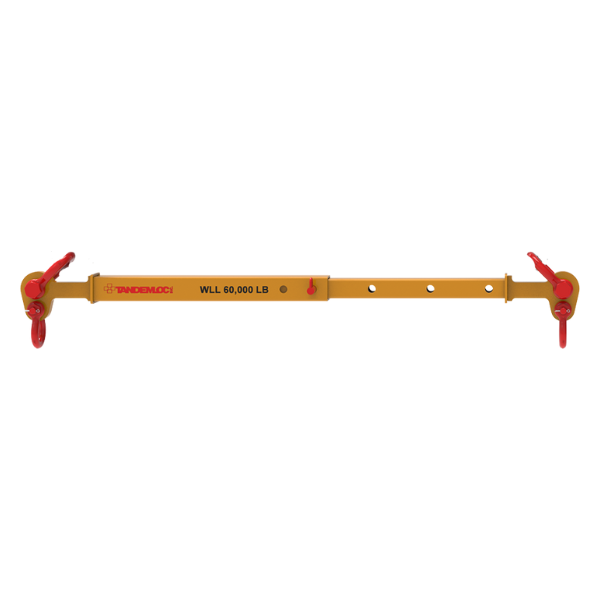

Tandemloc AT14 Series Telescopic Spreader Beams (Without Top Sling)

Tandemloc AT14 Series Telescopic Spreader Beams (Without Top Sling)

Tandemloc AT14 Series Telescopic Spreader Beams (Without Top Sling)

$2,758.96

Typically Ships In: Contact Us For Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL range: 2,000 up to 100,000lbs
  • Fully Adjustable Spreader Beam
  • Made in the USA
  • Proof tested to 125% of WLL
  • Fully certified
  • Finish: sandblast, primed, & painted
  • Safety Yellow paint
  • Designed & manufactured to ASME B30.20 and BTH-1, Design Category B, Service Class 0
  • Includes shackles

Customers Also Bought

Description

Features & Specification

The AT14 Series Adjustable Telescopic Spreader Beams continue to showcase the quality American manufacturing associated with Tandemloc.

Offering an extensive range of minimum and maximum spread widths in convenient increments of only a few inches, in fact, there are 146 options available, therefore we're positive that we'll have a solution to suit most, if not all, requirements.

Available in safe working load limits from 2,000lbs right up to 100,00lbs, these versatile spreader beams are designed and manufactured to meet/exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0, and are all proof tested to 125% of the stated WLL.

Sandblasted, primed, and painted in a signature safety yellow for high visibility, these fully certified adjustable spreader bars include top and bottom shackles, with optional wire rope rigging available ensuring that you're ready to hook and lift.



Downloads

  • Tandemloc AT14A002-072-PA Sales Drawing

  • Tandemloc AT14A002-084-PA Sales Drawing

  • Tandemloc AT14A002-096-PA Sales Drawing

  • Tandemloc AT14A002-120-PA Sales Drawing

  • Tandemloc AT14A002-144-PA Sales Drawing

  • Tandemloc AT14A002-168-PA Sales Drawing

  • Tandemloc AT14A002-180-PA Sales Drawing

  • Tandemloc AT14A002-240-PA Sales Drawing

  • Tandemloc AT14A004-072-PA Sales Drawing

  • Tandemloc AT14A004-096-PA Sales Drawing

  • Tandemloc AT14A004-120-PA Sales Drawing

  • Tandemloc AT14A004-144-PA Sales Drawing

  • Tandemloc AT14A004-180-PA Sales Drawing

  • Tandemloc AT14A004-240-PA Sales Drawing

  • Tandemloc AT14A008-048-PA Sales Drawing

  • Tandemloc AT14A008-072-PA Sales Drawing

  • Tandemloc AT14A008-096-PA Sales Drawing

  • Tandemloc AT14A008-144-PA Sales Drawing

  • Tandemloc AT14A008-180-PA Sales Drawing

  • Tandemloc AT14A008-240-PA Sales Drawing

  • Tandemloc AT14A013-072-PA Sales Drawing

  • Tandemloc AT14A013-084-PA Sales Drawing

  • Tandemloc AT14A013-096-PA Sales Drawing

  • Tandemloc AT14A013-120-PA Sales Drawing

  • Tandemloc AT14A013-144-PA Sales Drawing

  • Tandemloc AT14A013-180-PA Sales Drawing

  • Tandemloc AT14A013-240-PA Sales Drawing

  • Tandemloc AT14A013-318-PA Sales Drawing

  • Tandemloc AT14A018-072-PA Sales Drawing

  • Tandemloc AT14A018-084-PA Sales Drawing

  • Tandemloc AT14A018-096-PA Sales Drawing

  • Tandemloc AT14A018-120-PA Sales Drawing

  • Tandemloc AT14A018-144-PA Sales Drawing

  • Tandemloc AT14A018-168-PA Sales Drawing

  • Tandemloc AT14A018-180-PA Sales Drawing

  • Tandemloc AT14A018-240-PA Sales Drawing

  • Tandemloc AT14A018-360-PA Sales Drawing

  • Tandemloc AT14A020-072-PA Sales Drawing

  • Tandemloc AT14A020-084-PA Sales Drawing

  • Tandemloc AT14A020-096-PA Sales Drawing

  • Tandemloc AT14A020-120-PA Sales Drawing

  • Tandemloc AT14A020-144-PA Sales Drawing

  • Tandemloc AT14A020-168-PA Sales Drawing

  • Tandemloc AT14A020-180-PA Sales Drawing

  • Tandemloc AT14A020-240-PA Sales Drawing

  • Tandemloc AT14A020-360-PA Sales Drawing

  • Tandemloc AT14A023-072-PA Sales Drawing

  • Tandemloc AT14A023-084-PA Sales Drawing

  • Tandemloc AT14A023-096-PA Sales Drawing

  • Tandemloc AT14A023-120-PA Sales Drawing

  • Tandemloc AT14A023-144-PA Sales Drawing

  • Tandemloc AT14A023-168-PA Sales Drawing

  • Tandemloc AT14A023-180-PA Sales Drawing

  • Tandemloc AT14A023-240-PA Sales Drawing

  • Tandemloc AT14A023-360-PA Sales Drawing

  • Tandemloc AT14A025-072-PA Sales Drawing

  • Tandemloc AT14A025-096-PA Sales Drawing

  • Tandemloc AT14A025-120-PA Sales Drawing

  • Tandemloc AT14A025-144-PA Sales Drawing

  • Tandemloc AT14A025-168-PA Sales Drawing

  • Tandemloc AT14A025-180-PA Sales Drawing

  • Tandemloc AT14A025-216-PA Sales Drawing

  • Tandemloc AT14A025-240-PA Sales Drawing

  • Tandemloc AT14A025-360-PA Sales Drawing

  • Tandemloc AT14A030-072-PA Sales Drawing

  • Tandemloc AT14A030-084-PA Sales Drawing

  • Tandemloc AT14A030-096-PA Sales Drawing

  • Tandemloc AT14A030-120-PA Sales Drawing

  • Tandemloc AT14A030-144-PA Sales Drawing

  • Tandemloc AT14A030-168-PA Sales Drawing

  • Tandemloc AT14A030-180-PA Sales Drawing

  • Tandemloc AT14A030-240-PA Sales Drawing

  • Tandemloc AT14A030-360-PA Sales Drawing

  • Tandemloc AT14A032-072-PA Sales Drawing

  • Tandemloc AT14A032-084-PA Sales Drawing

  • Tandemloc AT14A032-096-PA Sales Drawing

  • Tandemloc AT14A032-120-PA Sales Drawing

  • Tandemloc AT14A032-144-PA Sales Drawing

  • Tandemloc AT14A032-168-PA Sales Drawing

  • Tandemloc AT14A032-180-PA Sales Drawing

  • Tandemloc AT14A032-240-PA Sales Drawing

  • Tandemloc AT14A032-360-PA Sales Drawing

  • Tandemloc AT14A036-072-PA Sales Drawing

  • Tandemloc AT14A036-084-PA Sales Drawing

  • Tandemloc AT14A036-096-PA Sales Drawing

  • Tandemloc AT14A036-120-PA Sales Drawing

  • Tandemloc AT14A036-144-PA Sales Drawing

  • Tandemloc AT14A036-180-PA Sales Drawing

  • Tandemloc AT14A036-240-PA Sales Drawing

  • Tandemloc AT14A036-288-PA Sales Drawing

  • Tandemloc AT14A036-360-PA Sales Drawing

  • Tandemloc AT14A040-072-PA Sales Drawing

  • Tandemloc AT14A040-096-PA Sales Drawing

  • Tandemloc AT14A040-120-PA Sales Drawing

  • Tandemloc AT14A040-144-PA Sales Drawing

  • Tandemloc AT14A040-168-PA Sales Drawing

  • Tandemloc AT14A040-180-PA Sales Drawing

  • Tandemloc AT14A040-240-PA Sales Drawing

  • Tandemloc AT14A040-360-PA Sales Drawing

  • Tandemloc AT14A040-480-PA Sales Drawing

  • Tandemloc AT14A100-480-PA Sales Drawing

  • Tandemloc AT14A100-360-PA Sales Drawing

  • Tandemloc AT14A100-240-PA Sales Drawing

  • Tandemloc AT14A100-192-PA Sales Drawing

  • Tandemloc AT14A100-168-PA Sales Drawing

  • Tandemloc AT14A090-480-PA Sales Drawing

  • Tandemloc AT14A080-360-PA Sales Drawing

  • Tandemloc AT14A080-240-PA Sales Drawing

  • Tandemloc AT14A080-216-PA Sales Drawing

  • Tandemloc AT14A080-192-PA Sales Drawing

  • Tandemloc AT14A080-180-PA Sales Drawing

  • Tandemloc AT14A080-168-PA Sales Drawing

  • Tandemloc AT14A080-144-PA Sales Drawing

  • Tandemloc AT14A070-480-PA Sales Drawing

  • Tandemloc AT14A070-240-PA Sales Drawing

  • Tandemloc AT14A067-480-PA Sales Drawing

  • Tandemloc AT14A067-360-PA Sales Drawing

  • Tandemloc AT14A067-240-PA Sales Drawing

  • Tandemloc AT14A067-216-PA Sales Drawing

  • Tandemloc AT14A067-180-PA Sales Drawing

  • Tandemloc AT14A067-168-PA Sales Drawing

  • Tandemloc AT14A067-144-PA Sales Drawing

  • Tandemloc AT14A067-120-PA Sales Drawing

  • Tandemloc AT14A060-480-PA Sales Drawing

  • Tandemloc AT14A060-360-PA Sales Drawing

  • Tandemloc AT14A060-240-PA Sales Drawing

  • Tandemloc AT14A060-216-PA Sales Drawing

  • Tandemloc AT14A060-180-PA Sales Drawing

  • Tandemloc AT14A060-168-PA Sales Drawing

  • Tandemloc AT14A060-144-PA Sales Drawing

  • Tandemloc AT14A060-120-PA Sales Drawing

  • Tandemloc AT14A060-108-PA Sales Drawing

  • Tandemloc AT14A050-480-PA Sales Drawing

  • Tandemloc AT14A050-360-PA Sales Drawing

  • Tandemloc AT14A050-288-PA Sales Drawing

  • Tandemloc AT14A050-240-PA Sales Drawing

  • Tandemloc AT14A050-180-PA Sales Drawing

  • Tandemloc AT14A050-144-PA Sales Drawing

  • Tandemloc AT14A050-120-PA Sales Drawing

  • Tandemloc AT14A046-480-PA Sales Drawing

  • Tandemloc AT14A046-360-PA Sales Drawing

  • Tandemloc AT14A046-240-PA Sales Drawing

  • Tandemloc AT14A046-180-PA Sales Drawing

  • Tandemloc AT14A046-168-PA Sales Drawing

  • Tandemloc AT14A046-144-PA Sales Drawing

  • Tandemloc AT14A046-096-PA Sales Drawing

  • Tandemloc AT14A046-072-PA Sales Drawing

Page 1 of 19

Model WLL (lbs) Max Spread Min. Spread Sling Angle Weight (lbs.)
AT14A002-072-PA Telescopic Spreader Beam 2,000 72" 48" 45° 105
AT14A002-084-PA Telescopic Spreader Beam 2,000 84" 54" 45° 121
AT14A002-096-PA Telescopic Spreader Beam 2,000 96" 60" 45° 136
AT14A002-120-PA Telescopic Spreader Beam 2,000 120" 72" 45° 167
AT14A002-144-PA Telescopic Spreader Beam 2,000 144" 84" 45° 196
AT14A002-168-PA Telescopic Spreader Beam 2,000 168" 96" 45° 226
AT14A002-180-PA Telescopic Spreader Beam 2,000 180" 108" 45° 341
AT14A002-240-PA Telescopic Spreader Beam 2,000 240" 144" 45° 448

AT14A004-072-PA Telescopic Spreader Beam 4,000 72" 48" 45° 107
AT14A004-096-PA Telescopic Spreader Beam 4,000 96" 60" 45° 137
AT14A004-120-PA Telescopic Spreader Beam 4,000 120" 72" 45° 167
AT14A004-144-PA Telescopic Spreader Beam 4,000 144" 84" 45° 198
AT14A004-180-PA Telescopic Spreader Beam 4,000 180" 108" 45° 347
AT14A004-240-PA Telescopic Spreader Beam 4,000 240" 144" 45° 450

AT14A008-048-PA Telescopic Spreader Beam 8,000 48" 36" 45° 75
AT14A008-072-PA Telescopic Spreader Beam 8,000 72" 48" 45° 109
AT14A008-096-PA Telescopic Spreader Beam 8,000 96" 60" 45° 140
AT14A008-120-PA Telescopic Spreader Beam 8,000 120" 72" 45° 170
AT14A008-144-PA Telescopic Spreader Beam 8,000 144" 84" 45° 200
AT14A008-180-PA Telescopic Spreader Beam 8,000 180" 108" 45° 347
AT14A008-240-PA Telescopic Spreader Beam 8,000 240" 144" 45° 454

AT14A013-072-PA Telescopic Spreader Beam 13,000 72" 48" 45° 112
AT14A013-084-PA Telescopic Spreader Beam 13,000 84" 54" 48" 127
AT14A013-096-PA Telescopic Spreader Beam 13,000 96" 60" 45° 143
AT14A013-120-PA Telescopic Spreader Beam 13,000 120" 78" 45° 181
AT14A013-144-PA Telescopic Spreader Beam 13,000 144" 90" 45° 218
AT14A013-180-PA Telescopic Spreader Beam 13,000 180" 108" 45° 347
AT14A013-240-PA Telescopic Spreader Beam 13,000 240" 144" 45° 449
AT14A013-318-PA Telescopic Spreader Beam 13,000 318" 180" 45° 724

AT14A018-072-PA Telescopic Spreader Beam 18,000 72" 48" 45° 117
AT14A018-084-PA Telescopic Spreader Beam 18,000 84" 54" 45° 134
AT14A018-096-PA Telescopic Spreader Beam 18,000 96" 66" 45° 155
AT14A018-120-PA Telescopic Spreader Beam 18,000 120" 75" 45° 185
AT14A018-144-PA Telescopic Spreader Beam 18,000 144" 90" 45° 223
AT14A018-168-PA Telescopic Spreader Beam 18,000 168" 102" 45° 330
AT14A018-180-PA Telescopic Spreader Beam 18,000 180" 108" 45° 349
AT14A018-240-PA Telescopic Spreader Beam 18,000 240" 144" 45° 456
AT14A018-360-PA Telescopic Spreader Beam 18,000 360" 204" 45° 818

AT14A020-072-PA Telescopic Spreader Beam 20,000 72" 48" 45° 130
AT14A020-084-PA Telescopic Spreader Beam 20,000 84" 54" 45° 145
AT14A020-096-PA Telescopic Spreader Beam 20,000 96" 66" 45° 175
AT14A020-120-PA Telescopic Spreader Beam 20,000 120" 78" 45° 205
AT14A020-144-PA Telescopic Spreader Beam 20,000 144" 90" 45° 235
AT14A020-168-PA Telescopic Spreader Beam 20,000 168" 102" 45° 342
AT14A020-180-PA Telescopic Spreader Beam 20,000 180" 108" 45° 362
AT14A020-240-PA Telescopic Spreader Beam 20,000 240" 144" 45° 468
AT14A020-360-PA Telescopic Spreader Beam 20,000 360" 204" 45° 995

AT14A023-072-PA Telescopic Spreader Beam 23,000 72" 48" 45° 159
AT14A023-084-PA Telescopic Spreader Beam 23,000 84" 54" 45° 180
AT14A023-096-PA Telescopic Spreader Beam 23,000 96" 66" 45° 221
AT14A023-120-PA Telescopic Spreader Beam 23,000 120" 78" 45° 261
AT14A023-144-PA Telescopic Spreader Beam 23,000 144" 90" 45° 302
AT14A023-168-PA Telescopic Spreader Beam 23,000 168" 102" 45° 342
AT14A023-180-PA Telescopic Spreader Beam 23,000 180" 108" 45° 362
AT14A023-240-PA Telescopic Spreader Beam 23,000 240" 144" 45° 577
AT14A023-360-PA Telescopic Spreader Beam 23,000 360" 204" 45° 995

AT14A025-072-PA Telescopic Spreader Beam 25,000 72" 51" 45° 187
AT14A025-096-PA Telescopic Spreader Beam 25,000 96" 66" 45° 237
AT14A025-120-PA Telescopic Spreader Beam 25,000 120" 78" 45° 278
AT14A025-144-PA Telescopic Spreader Beam 25,000 144" 90" 45° 319
AT14A025-168-PA Telescopic Spreader Beam 25,000 168" 102" 45° 358
AT14A025-180-PA Telescopic Spreader Beam 25,000 180" 108" 45° 379
AT14A025-216-PA Telescopic Spreader Beam 25,000 216" 132" 45° 550
AT14A025-240-PA Telescopic Spreader Beam 25,000 240" 144" 45° 600
AT14A025-360-PA Telescopic Spreader Beam 25,000 360" 204" 45° 1016

AT14A030-072-PA Telescopic Spreader Beam 30,000 72" 51" 45° 220
AT14A030-084-PA Telescopic Spreader Beam 30,000 84" 60" 45° 257
AT14A030-096-PA Telescopic Spreader Beam 30,000 96" 66" 45° 282
AT14A030-120-PA Telescopic Spreader Beam 30,000 120" 78" 45° 334
AT14A030-144-PA Telescopic Spreader Beam 30,000 144" 90" 45° 383
AT14A030-168-PA Telescopic Spreader Beam 30,000 168" 102" 45° 434
AT14A030-180-PA Telescopic Spreader Beam 30,000 180" 108" 45° 460
AT14A030-240-PA Telescopic Spreader Beam 30,000 240" 144" 45° 600
AT14A030-360-PA Telescopic Spreader Beam 30,000 360" 204" 45° 1016

AT14A032-072-PA Telescopic Spreader Beam 32,000 72" 51" 45° 220
AT14A032-084-PA Telescopic Spreader Beam 32,000 84" 60" 45° 257
AT14A032-096-PA Telescopic Spreader Beam 32,000 96" 66" 45° 282
AT14A032-120-PA Telescopic Spreader Beam 32,000 120" 78" 45° 334
AT14A032-144-PA Telescopic Spreader Beam 32,000 144" 90" 45° 383
AT14A032-168-PA Telescopic Spreader Beam 32,000 168" 102" 45° 434
AT14A032-180-PA Telescopic Spreader Beam 32,000 180" 108" 45° 460
AT14A032-240-PA Telescopic Spreader Beam 32,000 240" 144" 45° 600
AT14A032-360-PA Telescopic Spreader Beam 32,000 360" 204" 45° 1016

AT14A036-072-PA Telescopic Spreader Beam 36,000 72" 51" 45° 228
AT14A036-084-PA Telescopic Spreader Beam 36,000 84" 60" 45° 267
AT14A036-096-PA Telescopic Spreader Beam 36,000 96" 66" 45° 292
AT14A036-120-PA Telescopic Spreader Beam 36,000 120" 78" 45° 343
AT14A036-144-PA Telescopic Spreader Beam 36,000 144" 90" 45° 528
AT14A036-180-PA Telescopic Spreader Beam 36,000 180" 108" 45° 469
AT14A036-240-PA Telescopic Spreader Beam 36,000 240" 144" 45° 608
AT14A036-288-PA Telescopic Spreader Beam 36,000 288" 168" 45° 843
AT14A036-360-PA Telescopic Spreader Beam 36,000 360" 204" 45° 1024

AT14A040-072-PA Telescopic Spreader Beam 40,000 72" 54" 45° 240
AT14A040-096-PA Telescopic Spreader Beam 40,000 96" 66" 45° 280
AT14A040-120-PA Telescopic Spreader Beam 40,000 120" 78" 45° 321
AT14A040-144-PA Telescopic Spreader Beam 40,000 144" 90" 45° 361
AT14A040-168-PA Telescopic Spreader Beam 40,000 168" 102" 45° 402
AT14A040-180-PA Telescopic Spreader Beam 40,000 180" 108" 45° 497
AT14A040-240-PA Telescopic Spreader Beam 40,000 240" 144" 45° 640
AT14A040-360-PA Telescopic Spreader Beam 40,000 360" 204" 45° 1216
AT14A040-480-PA Telescopic Spreader Beam 40,000 480" 276" 45° 1850

AT14A046-072-PA Telescopic Spreader Beam 46,000 72" 54" 50° 269
AT14A046-096-PA Telescopic Spreader Beam 46,000 96" 66" 45° 320
AT14A046-120-PA Telescopic Spreader Beam 46,000 120" 78" 45° 371
AT14A046-144-PA Telescopic Spreader Beam 46,000 144" 90" 45° 420
AT14A046-168-PA Telescopic Spreader Beam 46,000 168" 102" 45° 471
AT14A046-180-PA Telescopic Spreader Beam 46,000 180" 108" 45° 496
AT14A046-240-PA Telescopic Spreader Beam 46,000 240" 144" 45° 750
AT14A046-360-PA Telescopic Spreader Beam 46,000 360" 204" 45° 1216
AT14A046-480-PA Telescopic Spreader Beam 46,000 480" 276" 45° 1850

AT14A050-120-PA Telescopic Spreader Beam 50,000 120" 78" 45° 436
AT14A050-144-PA Telescopic Spreader Beam 50,000 144" 96" 45° 495
AT14A050-180-PA Telescopic Spreader Beam 50,000 180" 108" 45° 562
AT14A050-240-PA Telescopic Spreader Beam 50,000 240" 144"  45°
AT14A060-108-PA Telescopic Spreader Beam
60,000 108" 72" 45° 369
AT14A060-120-PA Telescopic Spreader Beam 60,000 120" 78" 45° 390
AT14A060-144-PA Telescopic Spreader Beam 60,000 144" 96" 45° 495
AT14A060-168-PA Telescopic Spreader Beam
60,000 168" 102" 45° 537
AT14A060-180-PA Telescopic Spreader Beam
60,000 180" 108" 45° 562
AT14A060-216-PA Telescopic Spreader Beam
60,000 216" 132" 45° 752
AT14A060-240-PA Telescopic Spreader Beam
60,000 240" 144" 45° 811
AT14A060-360-PA Telescopic Spreader Beam
60,000 360" 204" 45° 1448
AT14A060-480-PA Telescopic Spreader Beam
60,000 480" 276" 45° 2140
AT14A067-120-PA Telescopic Spreader Beam
67,000 120" 78" 45° 390
AT14A067-144-PA Telescopic Spreader Beam
67,000 144" 96" 45° 495
AT14A067-168-PA Telescopic Spreader Beam 67,000 168" 102" 45° 537
AT14A067-180-PA Telescopic Spreader Beam
67,000 180" 108" 45° 562
AT14A067-216-PA Telescopic Spreader Beam
67,000 216" 132" 45° 752
AT14A067-240-PA Telescopic Spreader Beam
67,000 240" 144" 45° 811
AT14A067-360-PA Telescopic Spreader Beam
67,000 360" 204" 45° 1448
AT14A067-480-PA Telescopic Spreader Beam
67,000 480" 276" 45° 2140
AT14A070-240-PA Telescopic Spreader Beam
70,000 240" 144" 45° 952
AT14A070-480-PA Telescopic Spreader Beam
70,000 480" 276" 45° 2270
AT14A080-144-PA Telescopic Spreader Beam 80,000 144" 96" 45° 711
AT14A080-168-PA Telescopic Spreader Beam
80,000 168" 108" 45° 771
AT14A080-180-PA Telescopic Spreader Beam
80,000 180" 114" 45° 785
AT14A080-192-PA Telescopic Spreader Beam
80,000 192" 120" 45° 882
AT14A080-216-PA Telescopic Spreader Beam
80,000 216" 132" 45° 890
AT14A080-240-PA Telescopic Spreader Beam
80,000 240" 144" 45° 1107
AT14A080-360-PA Telescopic Spreader Beam
80,000 360" 216" 45° 1633
AT14A090-480-PA Telescopic Spreader Beam
90,000 480" 276" 60° 2268
AT14A100-168-PA Telescopic Spreader Beam
100,000 168" 108" 45° 780
AT14A100-192-PA Telescopic Spreader Beam
100,000 192" 120" 45° 915
AT14A100-240-PA Telescopic Spreader Beam
100,000 240" 144" 45° 1060
AT14A100-360-PA Telescopic Spreader Beam
100,000 360" 216" 45° 1798
AT14A100-480-PA Telescopic Spreader Beam 100,000 480" 276" 60° 2266

Frequently Asked Questions

see all faqs

Can I order from outside of the US?

When will I get my goods?

Can I use a resale certificate?

Do I get a certificate with my item?

Can you price match or beat an existing quote?
