Tandemloc i-Beam Clamps
Tandemloc i-Beam Clamps
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- WLL from 2,000 to 10,000 lbs
- ASME B30.20 and BTH-1 compliant
- Four sizes available
Customers Also Bought

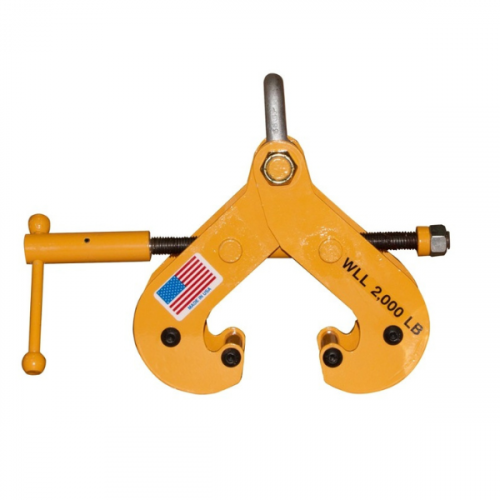

Designed to the most stringent design requirements (ASME B30.20 and BTH-1), Tandemloc’s range of I Beam Clamps have two principle uses – a below the hook lifting device and also a structural fixed point for hanging manual and powered hoists.

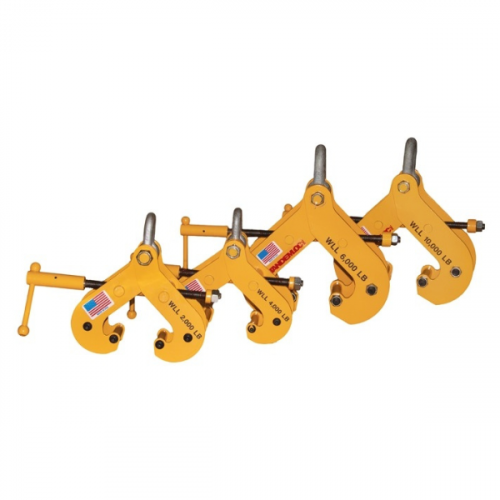

Structurally sound with function and safety at their core, this series of beam clamps comes in four varying sizes with working load limits ranging from 2,000 lbs to 10,000 lbs.
If used as an ASME B30.20 lifting devices, these Tandemloc Beam Clamps are suitable for lifting and transporting I shaped structural members and fabrications, including W-, M-, HP-, and S-shapes, in accordance to flange range and WLL.

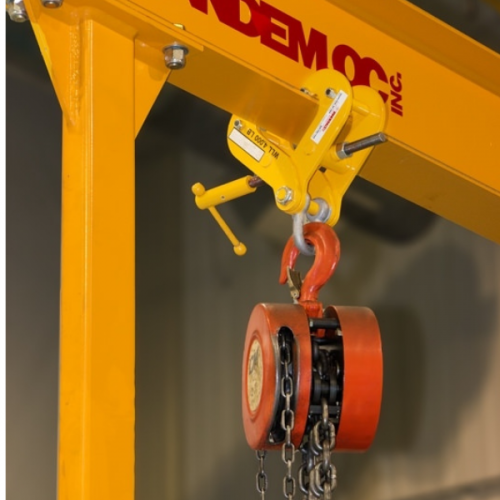

If choosing to use the Tandemloc Beam Clamp as a temporary hanging point for manual and powered hook-suspended hoists, you are limited to 90° vertical lifting. Each unit comes with a mechanical position lock for increased safety when in a closed position.
- WLL from 2,000 to 10,000 lbs
- ASME B30.20 and BTH-1 compliant
- Four sizes available
| Model | WLL | Min Flange Width | Max Flange Width | Max Flange Thinkness |
|---|---|---|---|---|
| AQ25A00-01C-PA Beam Clamp | 2,000 LBS | 3 inches | 9 inches | 0.83 inches |
| AQ25A00-02C-PA Beam Clamp | 4,000 LBS | 3 inches | 9 inches | 0.83 inches |
| AQ25A00-03C-PA Beam Clamp | 6,000 LBS | 4.5 inches | 12.5 inches | 1.15 inches |
| AQ25A00-05C-PA Beam Clamp | 10,000 LBS | 4.5 inches | 12.5 inches | 1.15 inches |
