Tandemloc ISO Container Spreader Beam
Tandemloc ISO Container Spreader Beam

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help
Quick Overview:
- AK24/25A Series
- For 20ft and 40ft ISO Containers
- Meets ISO 3874 standards
- Proof load tested to 125% of WLL
- Includes all slings and rigging required
- Made in the USA
Customers Also Bought

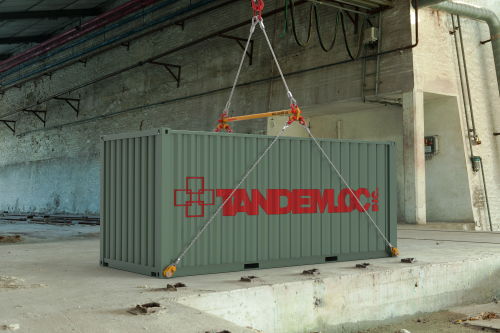

Tandemloc ISO Container Spreader Beams are suitable for both 20ft and 40ft ISO Shipping Containers weighing up to 67,200Lbs (please select correct model). Each beam is individually proof load tested to 125% and complete with load test certificate.
Includes slings and rigging.
MATERIAL AND FINISH:
- PC1 - Steel, Painted
- PC2 - Steel, Bright
- PC3 - Steel, Painted
Product Code | "L" Container Size | WLL | "S" Slack | Weight (lbs.) | "AA" Use Angle | "A" Use Angle | "D" Master Ring Diameter | "E" Master Ring Height | "F" Master Ring Width | "G" Master Ring to Container Bottom | PC1 - Lift Beam Part Number | PC2 - Wire Rope Legs & Shackle Part Numbers | PC3 - Lift Lug Part Numbers | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AK24A00-00A-PA Spreader Beam Lifter for ISO Containers | 20 ft | 52,900 LBS | 17 inches | 509 | 60 degrees | 45 degrees | 1.61 inches | 10.50 inches | 5.90 inches | 214 inches | AK24A01-00A-PA | AK24A03-00A | 416000C-LSTZ | ||||
AK25A00-00A-PA Spreader Beam Lifter for ISO Containers | 20 ft | 67,200 LBS | 17 inches | 667 | 60 degrees | 45 degrees | 1.75 inches | 12 inches | 6 inches | 216 inches | AK25A01-00A-PA | AK25A03-00A | 416000C-LSTZ | ||||
AK25A00-01A-PA Spreader Beam Lifter for ISO Containers | 40 ft / 20 ft | 67,200 LBS | 138 inches | 812 | 60 degrees | 45 degrees | 1.75 inches | 12 inches | 6 inches | 336 inches | AK25A01-00A-PA | AK25A03-00A/AK25A04-00A | 416000C-LSTZ |
