Tandemloc Lightweight Combination Lift Beams
Tandemloc Lightweight Combination Lift Beams
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- WLL 500lbs to 2000lbs
- Designed and manufactured to ASME B30.20. and BTH-1 standards
- Proof tested to 125% of WLL
- Each beams supplied with single top shackle and two bottom shackles
Customers Also Bought

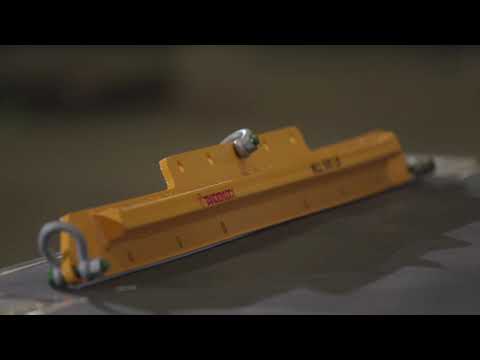

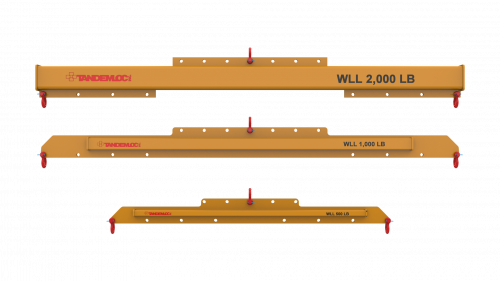

Often, if you need to lift heavy capacities, heavy equipment is necessary, but Tandemloc’s AU08A series of combination lifting beams have changed the landscape with an incredibly lightweight design.
Ideal for those who require a strong lifter without the heavy weight, each unit is designed with a top pad eye allowing for various locations on the beam to be utilised, offset CG situations and additional top rigging is required, while the bottom pad eyes provide a range of rigging locations.
WLL range from 500 lbs to 2000 lbs, with each beam fitted with a single top shackle (BTAS) and two bottom shackles (BTAS).
Designed and manufactured to the most recent ASME B30.20. and BTH-1 regulations, these beams have been proof tested to 125% of working load limit.
- WLL 500lbs to 2000lbs
- Designed and manufactured to ASME B30.20. and BTH-1 standards
- Proof tested to 125% of WLL
- Each beams supplied with single top shackle and two bottom shackles
-
AU08A02-048-PA Combination Lift Beam
-
AU08A02-072-PA Combination Lift Beam
-
AU08A02-096-PA Combination Lift Beam
-
AU08A02-120-PA Combination Lift Beam
-
AU08A005-048-PA Combination Lift Beam
-
AU08A010-048-PA Combination Lift Beam
-
AU08A010-072-PA Combination Lift Beam
-
AU08A010-096-PA Combination Lift Beam
-
AU08A010-120-PA Combination Lift Beam
Page 1 of 2
Model | WLL | Max Spread | Min. Spread | Top Lift Point Range | |
---|---|---|---|---|---|
AU08A005-048-PA Combination Lift Beam | 500 lbs | 48 inches | 12 inches | 16 inches |
|
AU08A010-048-PA Combination Lift Beam | 1000 lbs | 48 inches | 12 inches | 16 inches | |
AU08A010-072-PA Combination Lift Beam | 1000 lbs | 72 inches | 36 inches | 24 inches | |
AU08A010-096-PA Combination Lift Beam | 1000 lbs | 96 inches | 48 inches | 32 inches | |
AU08A010-120-PA Combination Lift Beam | 1000 lbs | 120 inches | 60 inches | 40 inches | |
AU08A02-048-PA Combination Lift Beam | 2000 lbs | 48 inches | 12 inches | 16 inches | |
AU08A02-072-PA Combination Lift Beam | 2000 lbs | 72 inches | 36 inches | 24 inches | |
AU08A02-096-PA Combination Lift Beam | 2000 lbs | 96 inches | 48 inches | 32 inches | |
AU08A02-120-PA Combination Lift Beam | 2000 lbs | 120 inches | 60 inches | 40 inches |
