Tandemloc Spreader Beam End Caps

Pipe Size Maximum Capacity (per pair) x Maximum Span:

$549.65

Typically Ships In: 1-2 Business Days

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Build your own Spreader Beam
Create custom lengths without custom costs and lead times
Secures with Safety Pin and Cotter Pin
Designed with mill tolerances in mind
Price per end cap
Capacity per pair
Made in the USA

Customers Also Bought

Description

Features & Specification

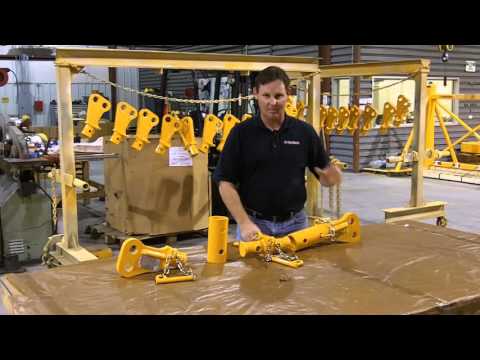

Tandemloc Spreader End Caps enable you to build your own custom spreader beams and modular spreader bars without the custom costs and heavy lead times associated with such builds. High capacities from 14,000Lb to 1,544,000Lb per end cap, enabling a complete Spreader Bar assembly capacity up to 3,088,000Lb provide even the most demanding loads a quick and cost-effective solution.

BEST USED IN COMBINATION WITH TANDEMLOC ADJUSTABLE SPREADER BAR KITS Purchase your end caps and the required size spreader beam kit for the ultimate fast field-adjustable solution.

Pipe Diameters: 3"-32"

We recommend that prior to purchasing Tandemloc Steel End Caps that you run your requirements through the Tandemloc End Cap App.

What You Get

1 x Tandemloc AC25C Series Steel End Cap (you'll need 2 so ensure you add 2pcs to your basket)

What You Will Need To Know

The span of your spread
Weight of the load
Weight of the assembled lifter

You should also consider any height restrictions that will dictate the lifting sling height above the load.

What You Will Need To Add

Appropriate sized pipe as per the below table 3"-8" End caps require schedule 80 pipe, whilst 10" End Caps and larger require schedule 60 pipe
Shackles and slings as per your requirements

Based On Primary Sling Angle For Maximum Spread 45 Degrees

Download Manuals

Spreader Beam End Cap Technical

End Cap Model

Maximum Capacity (per pair)

Maximum Spread

Capacity (per pair) @ Max. Spread

Spread @ Max. Capacity

AC25C-007030EH 3" Pipe

14tons (28,000Lbs)

19ft

4tons

11ft

AC25C-013030EH 3" Pipe

26tons (52,000Lbs)

19ft

4tons

8ft

AC25C-013040EH 4" Pipe

26tons (52,000Lbs)

24ft

7tons

12ft

AC25C-013050EH 5" Pipe

26tons (52,000Lbs)

30ft

10tons

18ft

AC25C-013060EH 6" Pipe

26tons (52,000Lbs)

36ft

13tons

26ft

AC25C-025040EH 4" Pipe

50tons (100,000Lbs)

24ft

7tons

9ft

AC25C-025050EH 5" Pipe

50tons (100,000Lbs)

30ft

10tons

13ft

AC25C-025060EH 6" Pipe

50tons (100,000Lbs)

36ft

13tons

19ft

AC25C-025080EH 8" Pipe

50tons (100,000Lbs)

48ft

19tons

30ft

AC25C-045060EH 6" Pipe

85tons (170,000Lbs)

36ft

13tons

14ft

AC25C-045080EH 8" Pipe

85tons (170,000Lbs)

48ft

19tons

23ft

AC25C-045100EH 10" Pipe

85tons (170,000Lbs)

60ft

25tons

19ft

AC25C-065100EH 10" Pipe

130tons (260,000Lbs)

60ft

24tons

27ft

AC25C-065120EH 12" Pipe

130tons (260,000Lbs)

72ft

29tons

35ft

AC25C-085140EH 14" Pipe

170tons (340,000Lbs)

79ft

58tons

47ft

AC25C-250260EH 26" Pipe

500tons (1,000,000Lbs)

100ft

249tons

71ft

AC25C-552320EH 32" Pipe

1104tons (2,208,000Lbs)

100ft

758tons

83ft

Painted with abrasion resistant, high gloss, two part epoxy finish in Safety Yellow
Assemblies can be proof tested and certified for the loads shown in the chart
Use two end caps- one on each end of a compatible pipe (see below for pipe specs)
All sizes over 8" feature one or two D-rings for easy handling of the end cap alone
Does not include central pipe section- can be supplied on request
Proof tested to 125% of the Working Load Limit
3"-8" End caps require schedule 80 pipe (found at almost all pipe dealers!), whilst 10" End Caps and larger require schedule 60 pipe

3-32" Pipe diameter
Minimum spread: 3ft
Maximum spread: 100ft
3"-8" End caps require schedule 80 pipe (found at almost all pipe dealers!), whilst 10" End Caps and larger require schedule 60 pipe
