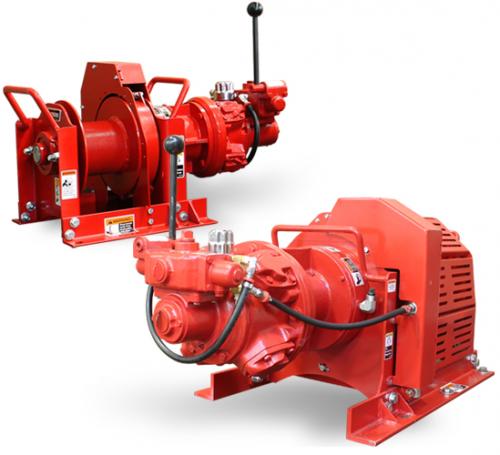

Thern Mini Series Radical Piston Air Winches
Thern Mini Series Radical Piston Air Winches
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Great for lifting, lowering, and positioning your heavy loads
- Strong and durable to withstand harsh environments
- Excellent accompaniment for sites where lifting and pulling is required
- Precise control valve
Customers Also Bought
Thern Mini-Series Radical Piston Air Winches
When you need to lift, lower, or position a heavy load, these dependable air winches that are part of the mini-series radical piston air winches from Thern Winches & Cranes are an ideal solution that can get the job done efficiently. From construction to maritime to manufacturing and more, these air winches are built tough to meet the demands of the job in any environment and a wide variety of applications.
The Thern mini-series radical piston air winches that are available at LES USA all have all of the might and dependability of the big red series air winches in a smaller package. The mini-series is a great accompaniment for sites where lifting and pulling is required and air power is readily available.
- Compact and portable
- High speed
- Radial piston motor
- Precise control valve
- Manual or automatic band brake
- Cycloidal drive
|
Model |
Capacity (Ibs) |
Line Speed |
Description |
Weight (Ibs) |
|
MTA1000-4M1 |
1000 |
42 |
1.3 hp with 4.5” drum, manual band brake |
124 |
|
MTA1000-4A1 |
1000 |
42 |
1.3 hp with 4.5” drum, auto band brake |
133 |
|
MTA1000-4A3 |
1000 |
42 |
1.3 hp with 4.5” drum, auto band brake, 20 ft pendant control with E-stop |
133 |
|
MTA2000-5M1 |
2000 |
55 |
3.5 hp with 5” drum, manual band brake |
282 |
|
MTA2000-13M1 |
2000 |
55 |
3.5 hp with 13” drum, manual band brake |
320 |
|
MTA2000-5A1 |
2000 |
55 |
3.5 hp with 5” drum, auto band brake |
294 |
|
MTA2000-13A1 |
2000 |
55 |
3.5 hp with 13” drum, auto band brake |
332 |
|
MTA2000-5A3 |
2000 |
55 |
3.5 hp with 5” drum, auto band brake, 20 ft pendant control wirh E-stop |
294 |
|
MTA2000-13A3 |
2000 |
55 |
3.5 hp with 13” drum, auto band brake, 20 ft pendant control with E-stop |
332 |
Mini TA Air Winch Series Performance Specs |
||||||||||||||||||
|
Load Rating |
Wire Rope Capacities |
Line Speed |
||||||||||||||||
|
Model No. |
1st Layer |
Mid Drum |
Top Layer |
1st Layer |
Mid Drum |
Top Layer |
1st Layer |
Mid Drum |
Top Layer |
|||||||||
|
(lb) |
(kg) |
(lb) |
(kg) |
(lb) |
(kg) |
(ft) |
(m) |
(ft) |
(m) |
(ft) |
(m) |
(fpm) |
(mpm) |
(fpm) |
(mpm) |
(fpm) |
(mpm) |
|
|
MTA1000 |
1400 |
635 |
1000 |
454 |
830 |
376 |
16 |
4.9 |
120 |
36.6 |
220 |
67.1 |
30 |
9.1 |
42 |
12.8 |
50 |
15.2 |
|
MTA2000 |
2700 |
1225 |
2000 |
907 |
1600 |
726 |
17 |
5.2 |
130 |
39.6 |
250 |
76.2 |
40 |
12.2 |
55 |
16.8 |
66 |
20.1 |
|
MTA2000L |
2700 |
1225 |
2000 |
907 |
1600 |
726 |
55 |
16.8 |
360 |
109.7 |
650 |
198.1 |
40 |
12.2 |
55 |
16.8 |
66 |
20.1 |
|
Model No. |
Motor HP |
Motor RPM |
Drum Diameter |
Drum Width |
Air Pressure |
Air Flow |
Flange Diameter |
Wire Rope Diameter |
Total Weight |
|||||||
|
(in) |
(cm) |
(in) |
(cm) |
(psi) |
(bar) |
(scfm) |
(m3m) |
(in) |
(cm) |
(in) |
(mm) |
(lb) |
(kg) |
|||
|
MTA1000 |
1.35 |
2100 |
4.5 |
11.4 |
4.5 |
11.4 |
90 |
6.3 |
60 |
1.7 |
8.5 |
21.6 |
1/4 |
6.4 |
130 |
59.0 |
|
MTA2000 |
3.50 |
1800 |
7 |
17.8 |
5 |
12.7 |
90 |
6.3 |
140 |
3.9 |
13.75 |
34.9 |
3/8 |
9.5 |
355 |
161.0 |
|
MTA2000L |
3.50 |
1800 |
7 |
17.8 |
13 |
33.0 |
90 |
6.3 |
140 |
3.9 |
13.75 |
34.9 |
3/8 |
9.5 |
355 |
161.0 |
