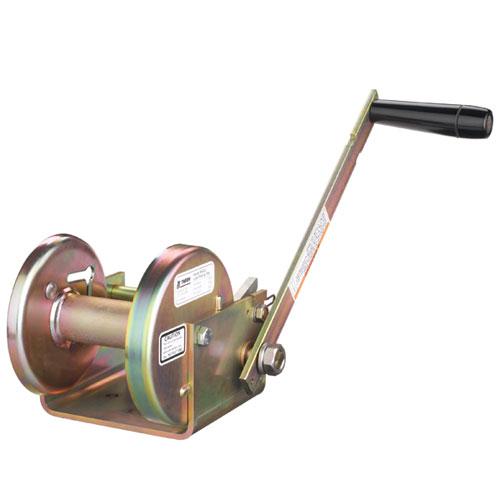

Thern Spur Gear Hand Winches - Single Reduction
Thern Spur Gear Hand Winches - Single Reduction
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Great for pulling, hoisting, and lowering applications
- Are equipped with a load pressure brake
- Incredibly reliable
- High-performance efficiency
- Available in a variety of configurations to meet your requirements
Customers Also Bought
Thern Spur Gear Hand Winches - Single Reduction
At LES USA we supply Spur Gear Hand Winches from Thern Winches & Cranes which are primarily used for hoisting loads. All the Spur Gear Winches that you can get from the store are equipped with a load pressure brake which holds the load at any required height during hoisting and lowering making it incredibly reliable. The hoisting capacities are calculated according to the first cable layer on the cable drum.
Due to the minimal friction loss in the transmission, the spur gear winches have a high-performance efficiency. Please make sure you check the specification for further details on which one suits your business.
Thern Spur Gear Hand Winches - Single Reduction
These Spur Gear Hand Winches (Single Reduction) are used for pulling, hoisting, or lowering applications. The maximum capacity for these products are 1000Ibs.
About the Thurn Spur Gear Hand Winch:
These products from Thern Winches & Cranes are manufactured with machine-cut spur gears for accurate long-lasting service and are available in a variety of configurations to meet the performance requirements of your manual pulling, hoisting, or lowering application.
- Machine-cut spur gears
- Variety of configurations
- Stainless steel models available
- Corrosion resistant
- Two-Year Limited Warranty
- Zinc plated to help avoid corrosion
- Bronze and radial ball bearings for smooth, efficient operation
- Spring-loaded ratchets provide positive engagement with gear
- Large diameter drums minimize wear to extend the life of winch wire rope assemblies (sold separately)
- Handle lengths are adjustable to change force required to move the load
- Steel gear covers protect gears and help prevent injuries
- Automatic Brake Models provide positive load control for lifting and lowering operations
- Brake models have P or PB suffix
- Quick Disconnect Anchor for quickly attaching or removing wire rope equipped with a swaged ball fitting
- Wire Rope Assemblies sold separately
| Model |
1 st layer loading capacity (Ibs) |
Mid drum loading capacity (Ibs) |
Full drum Loading capacity (Ibs) |
Wire rope Dia (in) |
1 st layer drum (ft) |
Mid drum (ft) |
Full drum (ft) |
Single gear ratio |
Force 3 to lift 1000 (Ibs) |
Weight (Ibs) |
|
M4022 |
1000 |
700 |
500 |
1/8 3/16 |
4 3 |
52 26 |
130 57 |
2.95.1 |
40 |
12 |
|
M4022PB |
1000 |
700 |
500 |
1/8 3/16 |
4 3 |
52 26 |
130 57 |
2.85.1 |
41 |
17 |
|
M4032 |
1000 |
700 |
500 |
1/8 3/16 |
11 7 |
110 51 |
250 110 |
2.85.1 |
40 |
14 |
|
M4032PB |
1000 |
700 |
500 |
1/8 3/16 |
11 7 |
110 51 |
250 110 |
2.85.1 |
41 |
18 |
