Home / Truck & Towing / Loading Dock / Vestil Aluminum Wheel Risers (ATWR)

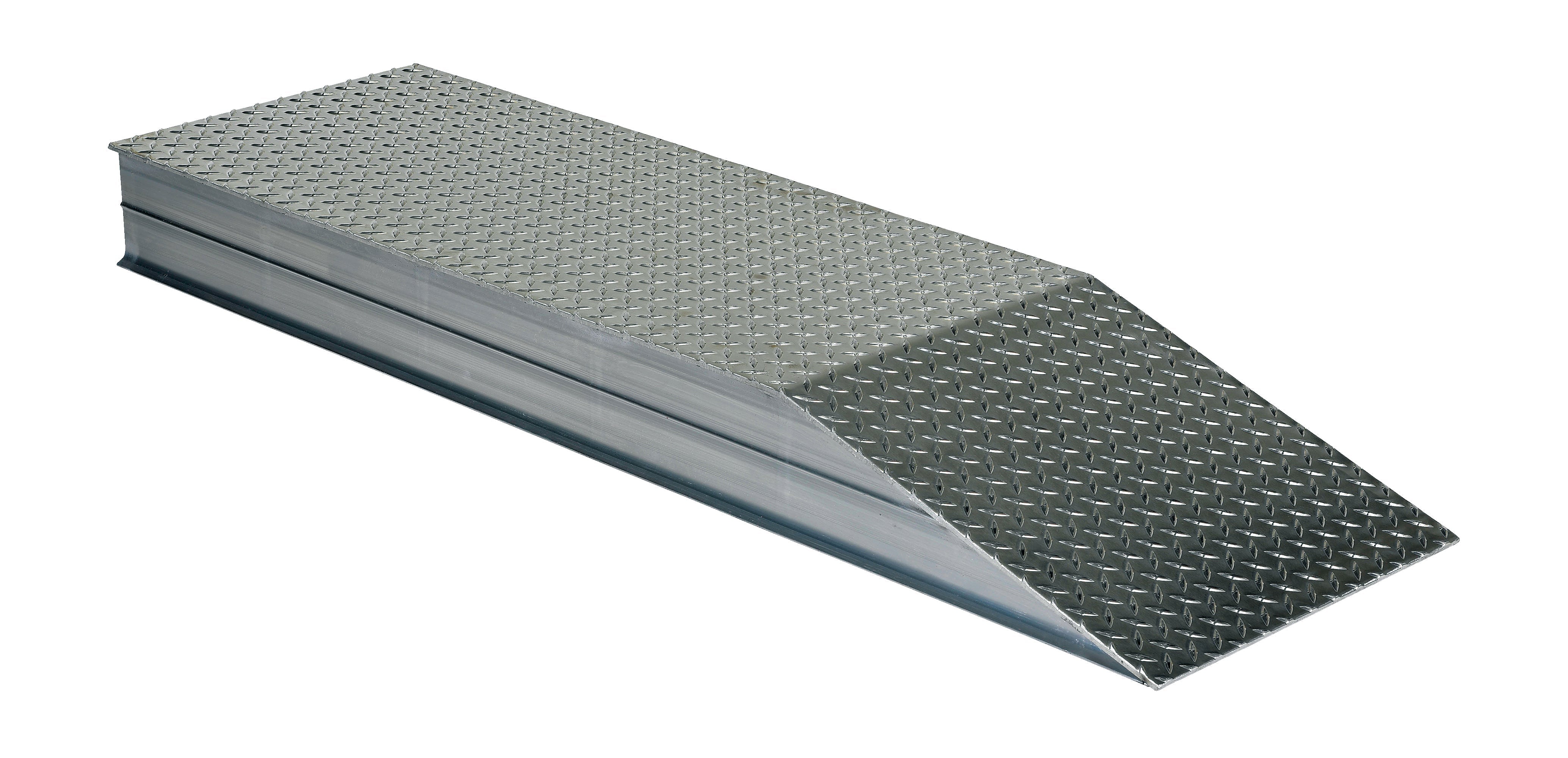

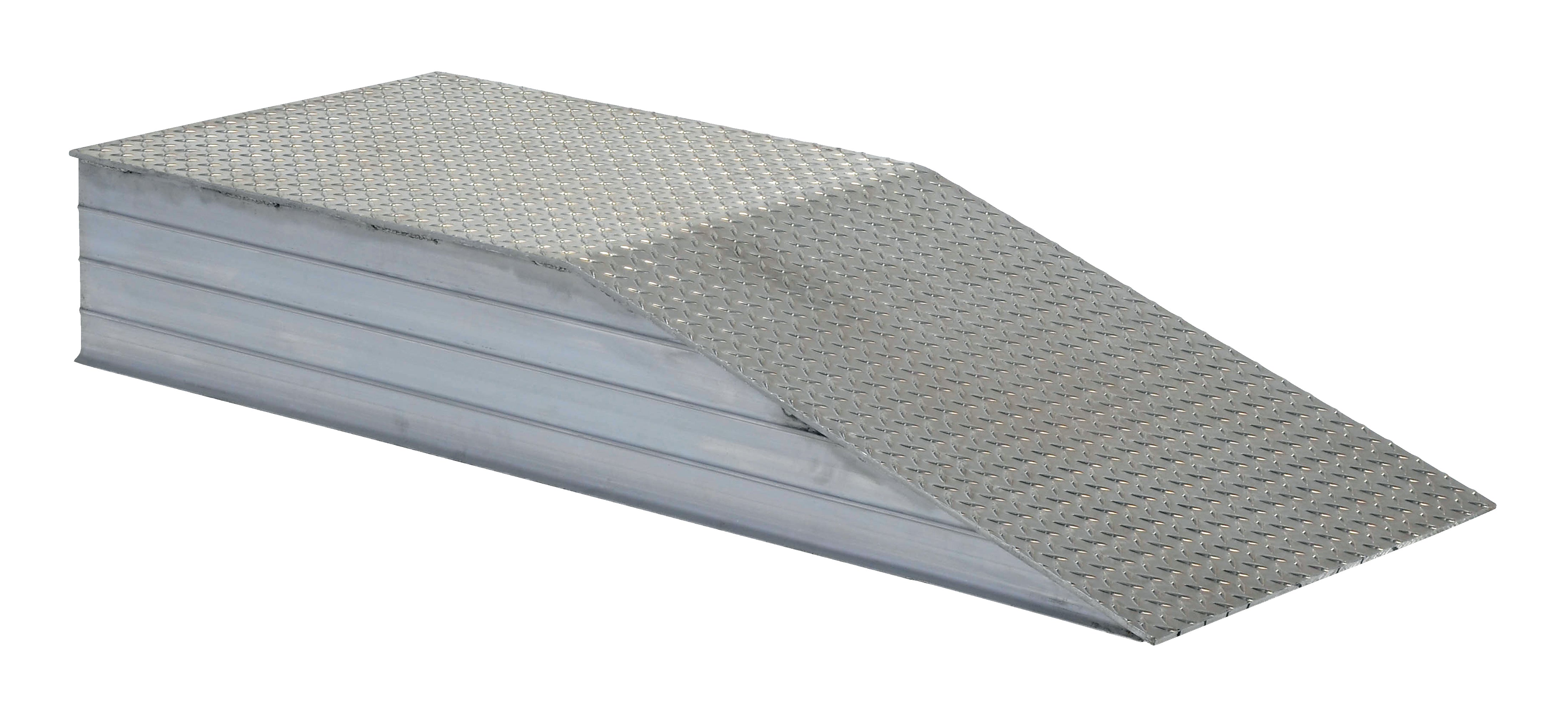

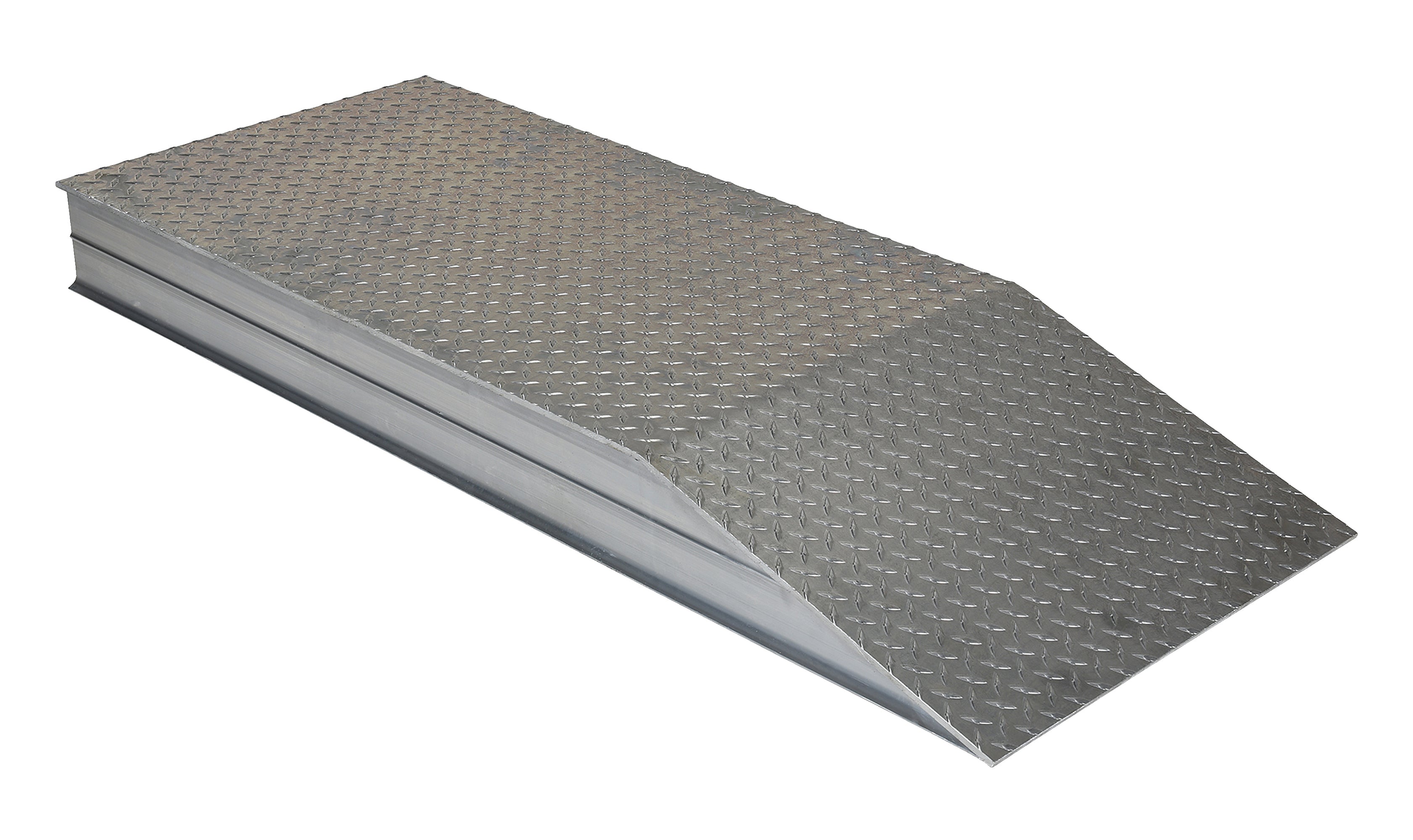

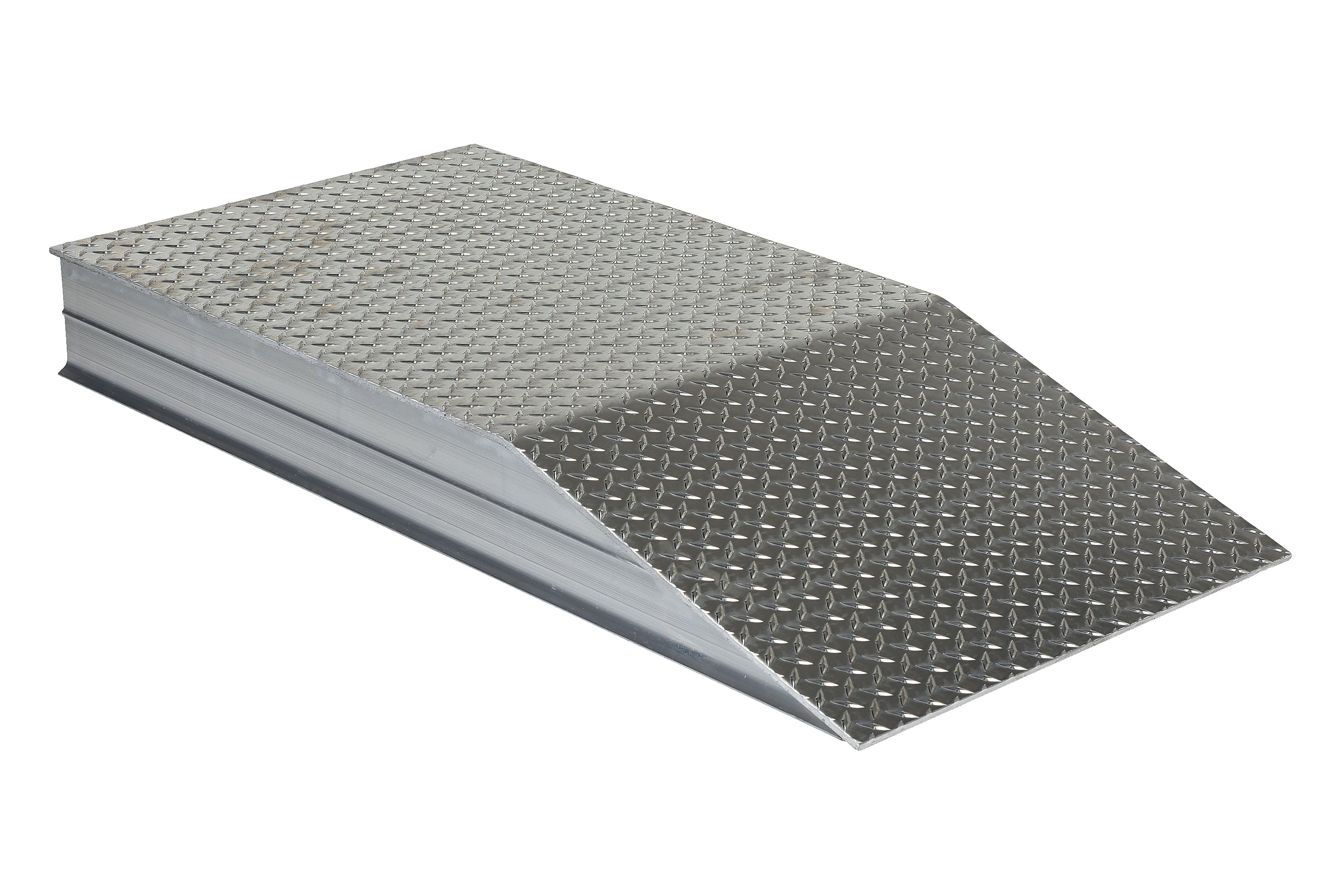

Vestil Aluminum Wheel Risers (ATWR)
Vestil Aluminum Wheel Risers (ATWR)
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
Elevate semi-trailers to loading docks for maximum serviceability during loading and unloading operations. Manufactured from heavy-duty aluminum tread plate for positive traction. Welded all aluminum construction. 30,000 lbs. capacity per pair (Sold Each). Wheel Risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for a maximum grade of ascending or descending loaded fork trucks.
-
Vestil ATWR-ROG-24-6-48 data sheet
-
Vestil ATWR-ROG-18-6-48 data sheet
-
Vestil ATWR-ABRK data sheet
-
Vestil ATWR-24-8-66 data sheet
-
Vestil ATWR-24-8-60 data sheet
-
Vestil ATWR-24-8-54 data sheet
-
Vestil ATWR-24-8-108 data sheet
-
Vestil ATWR-24-6-60 data sheet
-
Vestil ATWR-24-6-54 data sheet
-
Vestil ATWR-24-6-48 data sheet
-
Vestil ATWR-24-6-102 data sheet
-
Vestil ATWR-24-12-78 data sheet
-
Vestil ATWR-24-12-72 data sheet
-
Vestil ATWR-24-12-66 data sheet
-
Vestil ATWR-24-12-120 data sheet
-
Vestil ATWR-24-10-72 data sheet
-
Vestil ATWR-24-10-66 data sheet
-
Vestil ATWR-24-10-60 data sheet
-
Vestil ATWR-24-10-114 data sheet
-
Vestil ATWR-18-8-66 data sheet
-
Vestil ATWR-18-8-60 data sheet
-
Vestil ATWR-18-8-54 data sheet
-
Vestil ATWR-18-8-108 data sheet
-
Vestil ATWR-18-6-60 data sheet
-
Vestil ATWR-18-6-54 data sheet
-
Vestil ATWR-18-6-48 data sheet
-
Vestil ATWR-18-6-102 data sheet
-
Vestil ATWR-18-12-78 data sheet
-
Vestil ATWR-18-12-72 data sheet
-
Vestil ATWR-18-12-66 data sheet
-
Vestil ATWR-18-12-120 data sheet
-
Vestil ATWR-18-10-72 data sheet
-
Vestil ATWR-18-10-66 data sheet
-
Vestil ATWR-18-10-60 data sheet
-
Vestil ATWR-18-10-114 data sheet
Page 1 of 5
| Aluminum Wheel Risers 18" Usable Width | ||||
| Model | Height | Overall Length |
Level Length |
Wt. (lbs.) |
| ATWR-18-6-48* | 6" | 48" | 30" | 41 |
| ATWR-18-6-54* | 6" | 54" | 36" | 46 |
| ATWR-18-6-60* | 6" | 60" | 42" | 87 |
| ATWR-18-6-102 | 6" | 102" | 84" | 122 |
| ATWR-18-8-54* | 8" | 54" | 30" | 56 |
| ATWR-18-8-60* | 8" | 60" | 36" | 98 |
| ATWR-18-8-66* | 8" | 66" | 42" | 109 |
| ATWR-18-8-108 | 8" | 108" | 84" | 148 |
| ATWR-18-10-60* | 10" | 60" | 30" | 108 |
| ATWR-18-10-66* | 10" | 66" | 36" | 111 |
| ATWR-18-10-72* | 10" | 72" | 42" | 121 |
| ATWR-18-10-114 | 10" | 114" | 84" | 175 |
| ATWR-18-12-66* | 12" | 66" | 30" | 125 |
| ATWR-18-12-72* | 12" | 72" | 36" | 231 |
| ATWR-18-12-78 | 12" | 78" | 42" | 144 |
| ATWR-18-12-120 | 12" | 120" | 84" | 208 |
| Aluminum Wheel Risers 24" Usable Width | ||||
| Model | Height | Overall Length |
Level Length |
Wt. (lbs.) |
| ATWR-24-6-48* | 6" | 48" | 30" | 59 |
| ATWR-24-6-54* | 6" | 54" | 36" | 60 |
| ATWR-24-6-60* | 6" | 60" | 42" | 110 |
| ATWR-24-6-102 | 6" | 102" | 84" | 162 |
| ATWR-24-8-54* | 8" | 54" | 30" | 112 |
| ATWR-24-8-60* | 8" | 60" | 36" | 122 |
| ATWR-24-8-66* | 8" | 66" | 42" | 135 |
| ATWR-24-8-108 | 8" | 108" | 84" | 194 |
| ATWR-24-10-60* | 10" | 60" | 30" | 133 |
| ATWR-24-10-66* | 10" | 66" | 36" | 142 |
| ATWR-24-10-72* | 10" | 72" | 42" | 156 |
| ATWR-24-10-114 | 10" | 114" | 84" | 229 |
| ATWR-24-12-66* | 12" | 66" | 30" | 160 |
| ATWR-24-12-72* | 12" | 72" | 36" | 169 |
| ATWR-24-12-78 | 12" | 78" | 42" | 191 |
| ATWR-24-12-120 | 12" | 120" | 84" | 270 |

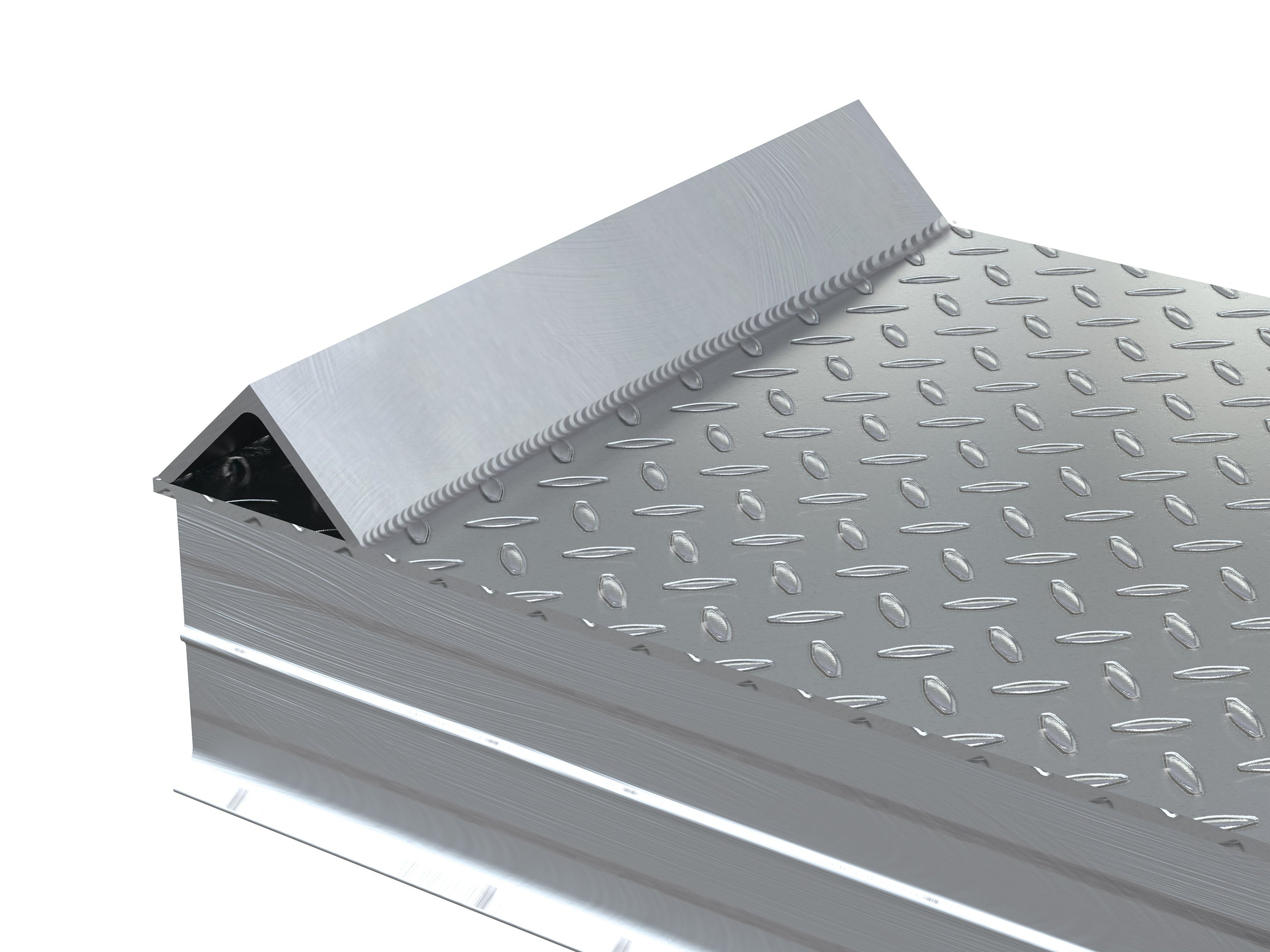

| Aluminum Tread Plate Wheel Riser with Roll Off Guard | ||||
| Model | Height | Length | Width | Wt. (lbs.) |
| ATWR-ROG-18-6-48 | 6" | 48" | 18" | 43 |
| ATWR-ROG-18-6-54 | 6" | 54" | 18" | 48 |
| ATWR-ROG-18-6-60 | 6" | 60" | 18" | 55 |
| ATWR-ROG-18-6-102 | 6" | 102" | 18" | 124 |
| ATWR-ROG-18-8-54 | 8" | 54" | 18" | 58 |
| ATWR-ROG-18-8-60 | 8" | 60" | 18" | 100 |
| ATWR-ROG-18-8-66 | 8" | 66" | 18" | 111 |
| ATWR-ROG-18-8-108 | 8" | 108" | 18" | 150 |
| ATWR-ROG-18-10-60 | 10" | 60" | 18" | 110 |
| ATWR-ROG-18-10-66 | 10" | 66" | 18" | 113 |
| ATWR-ROG-18-10-72 | 10" | 72" | 18" | 123 |
| ATWR-ROG-18-10-114 | 10" | 114" | 18" | 177 |
| ATWR-ROG-18-12-66 | 12" | 66" | 18" | 127 |
| ATWR-ROG-18-12-72 | 12" | 72" | 18" | 133 |
| ATWR-ROG-18-12-78 | 12" | 78" | 18" | 146 |
| ATWR-ROG-18-12-120 | 12" | 120" | 18" | 210 |
| ATWR-ROG-24-6-48 | 6" | 48" | 24" | 61 |
| ATWR-ROG-24-6-54 | 6" | 54" | 24" | 69 |
| ATWR-ROG-24-6-60 | 6" | 60" | 24" | 112 |
| ATWR-ROG-24-6-102 | 6" | 102" | 24" | 164 |
| ATWR-ROG-24-8-54 | 8" | 54" | 24" | 114 |
| ATWR-ROG-24-8-60 | 8" | 60" | 24" | 124 |
| ATWR-ROG-24-8-66 | 8" | 66" | 24" | 137 |
| ATWR-ROG-24-8-108 | 8" | 108" | 24" | 196 |
| ATWR-ROG-24-10-60 | 10" | 60" | 24" | 135 |
| ATWR-ROG-24-10-66 | 10" | 66" | 24" | 144 |
| ATWR-ROG-24-10-72 | 10" | 72" | 24" | 158 |
| ATWR-ROG-24-10-114 | 10" | 114" | 24" | 231 |
| ATWR-ROG-24-12-66 | 12" | 66" | 24" | 162 |
| ATWR-ROG-24-12-72 | 12" | 72" | 24" | 171 |
| ATWR-ROG-24-12-78 | 12" | 78" | 24" | 193 |
| ATWR-ROG-24-12-120 | 12" | 120" | 24" | 272 |
