Quick Overview:
  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge
  • Tread plate design offers a positive non-slip gripping action
  • Product design conveniently does not require a concrete recess
  • Solid steel construction offers long lasting reliable use

Customers Also Bought

Description

Reviews

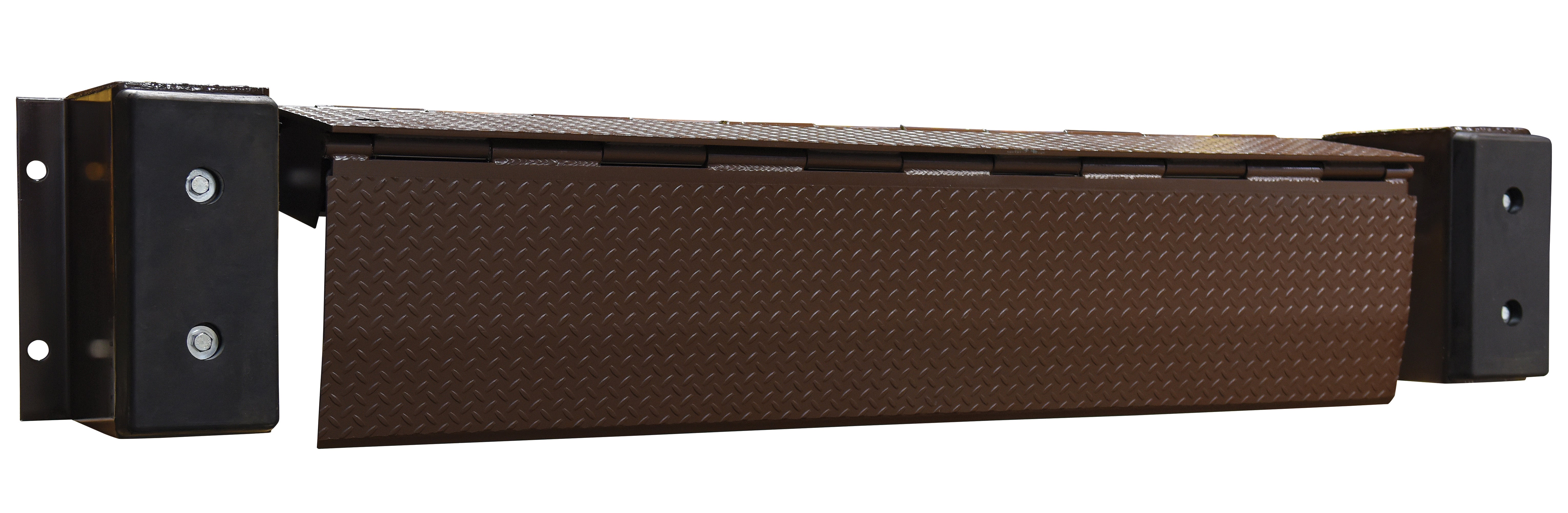

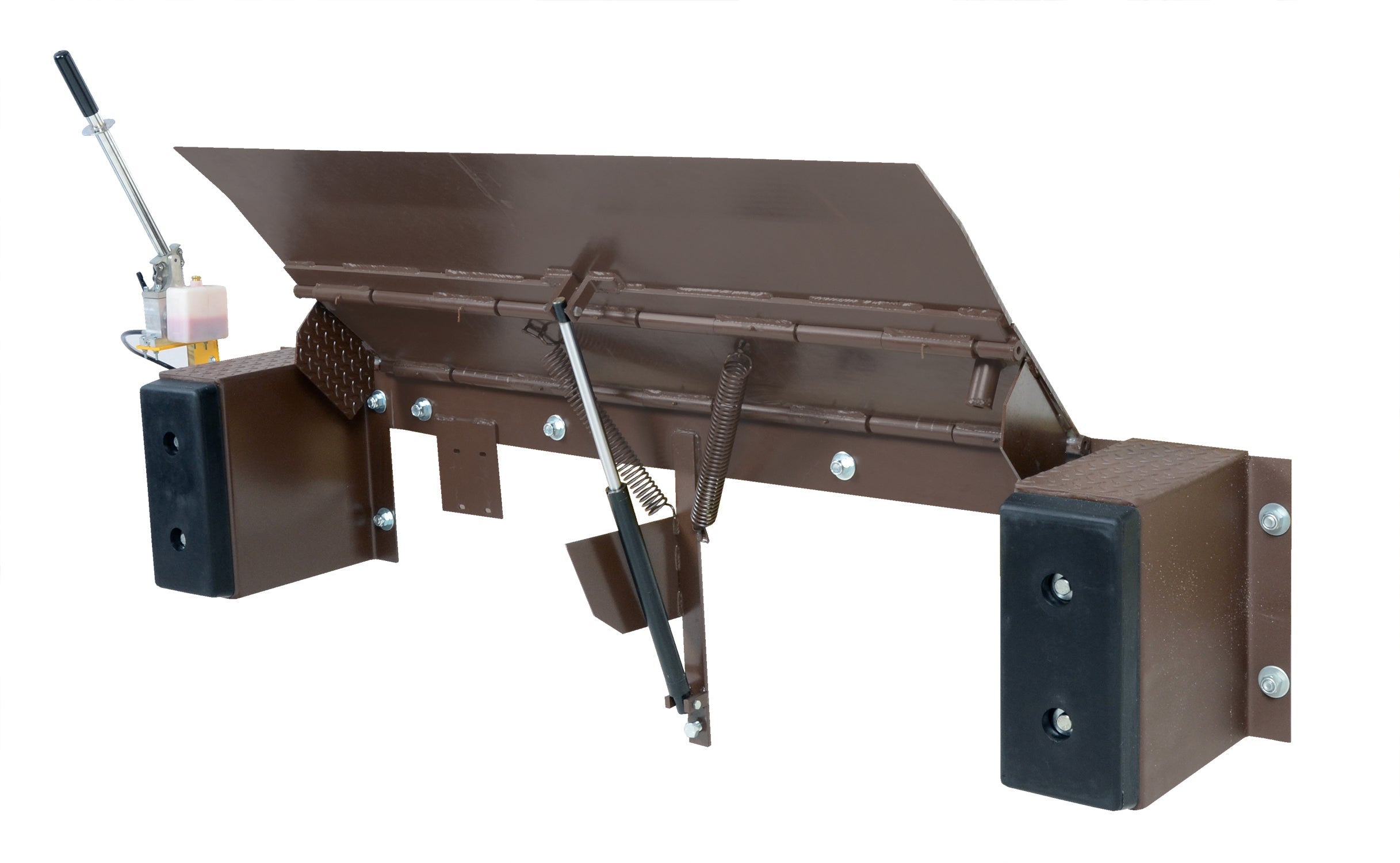

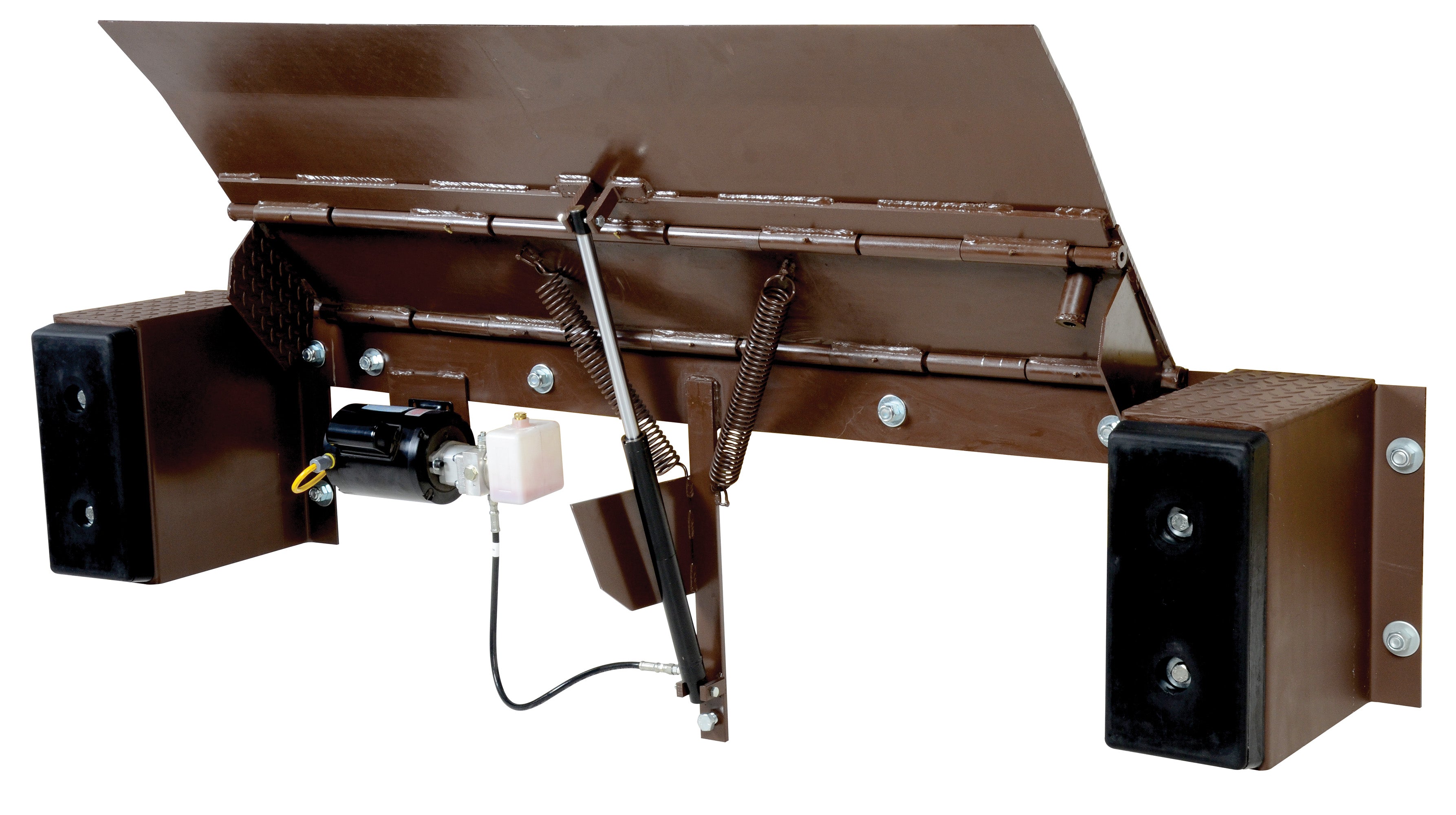

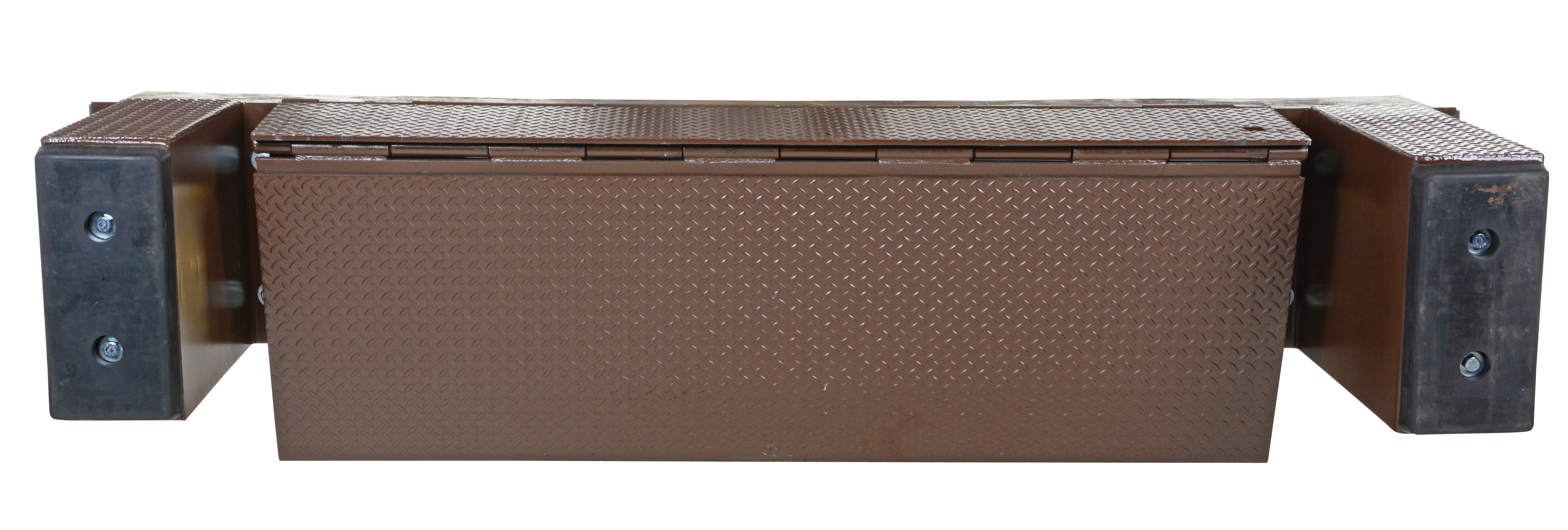

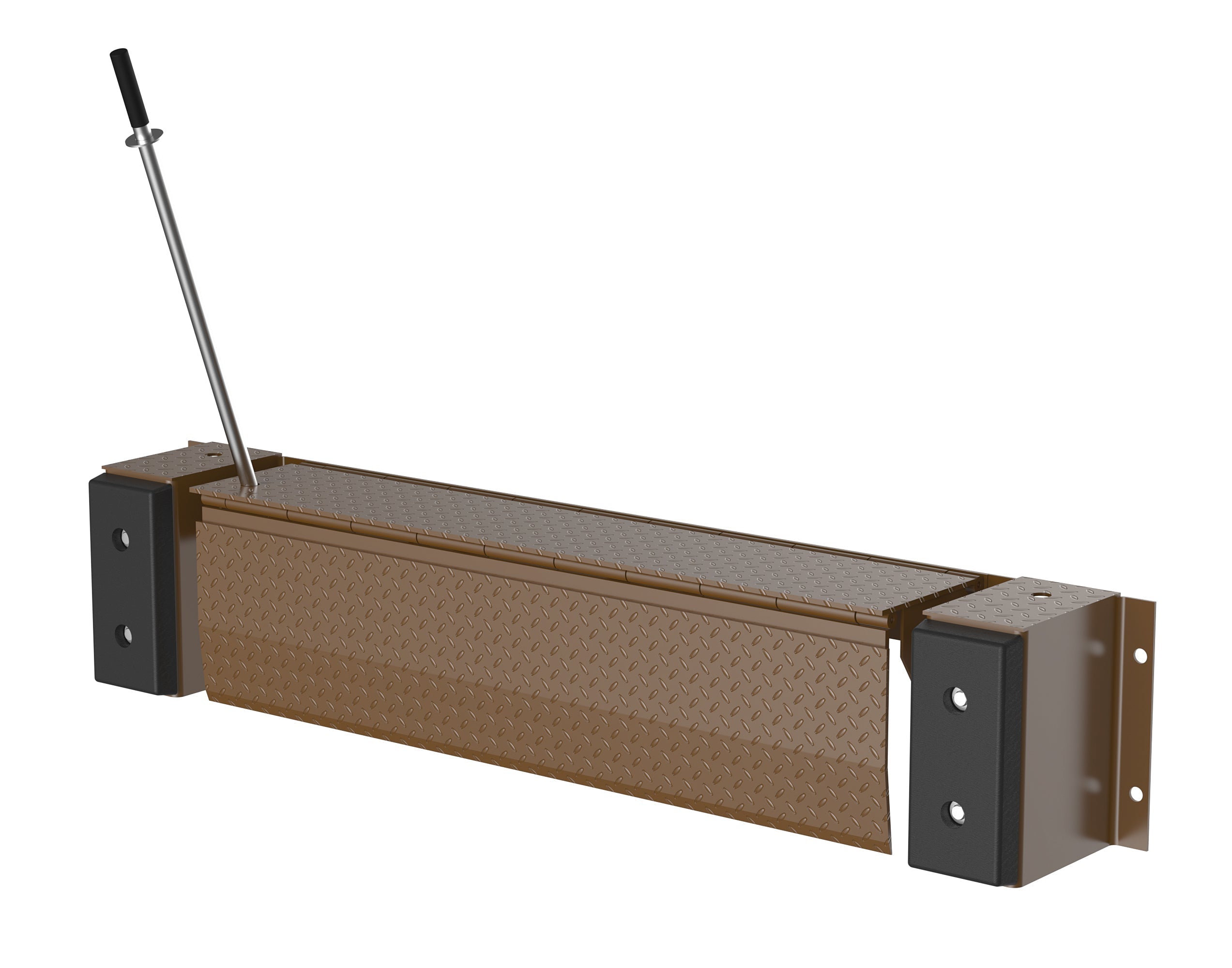

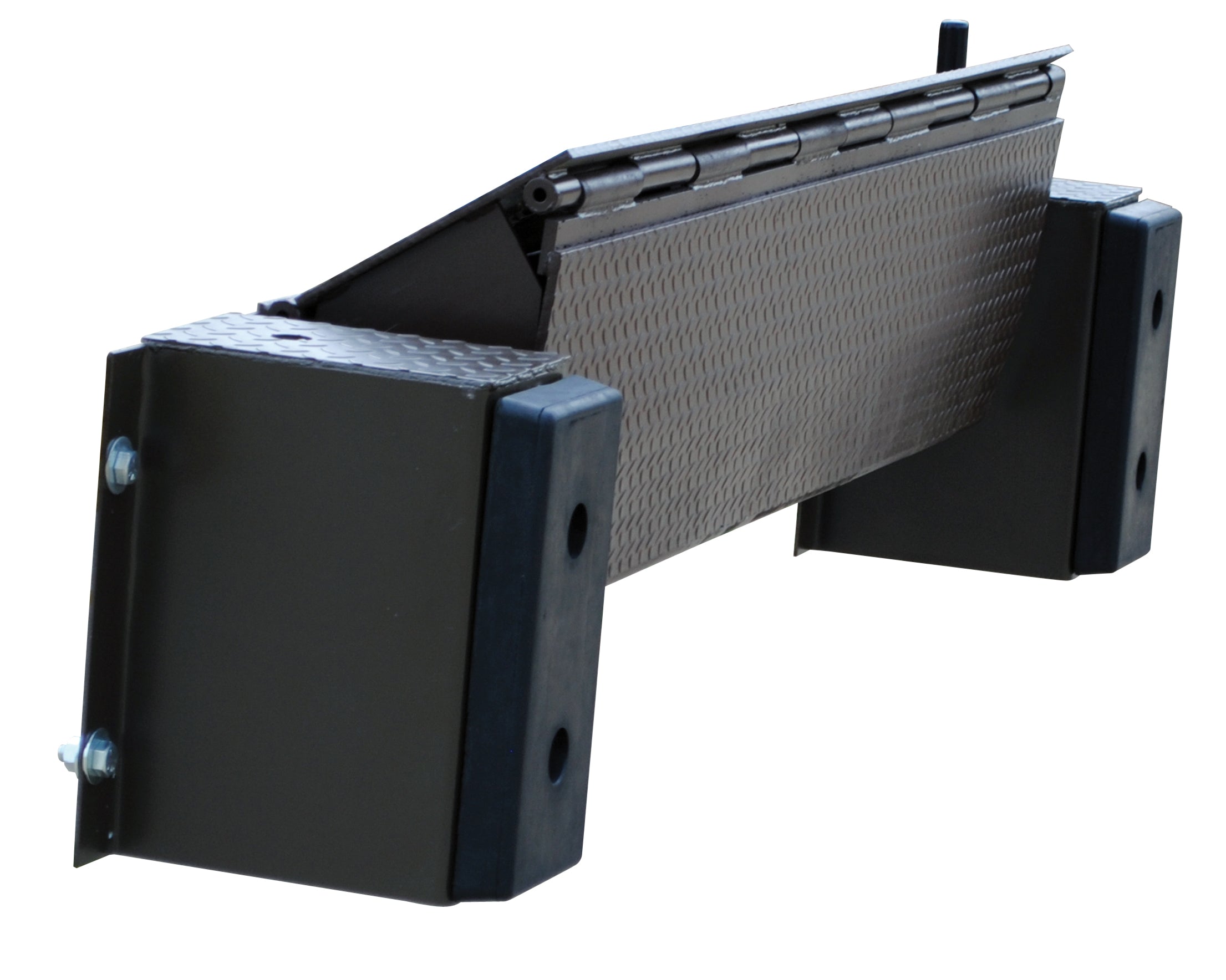

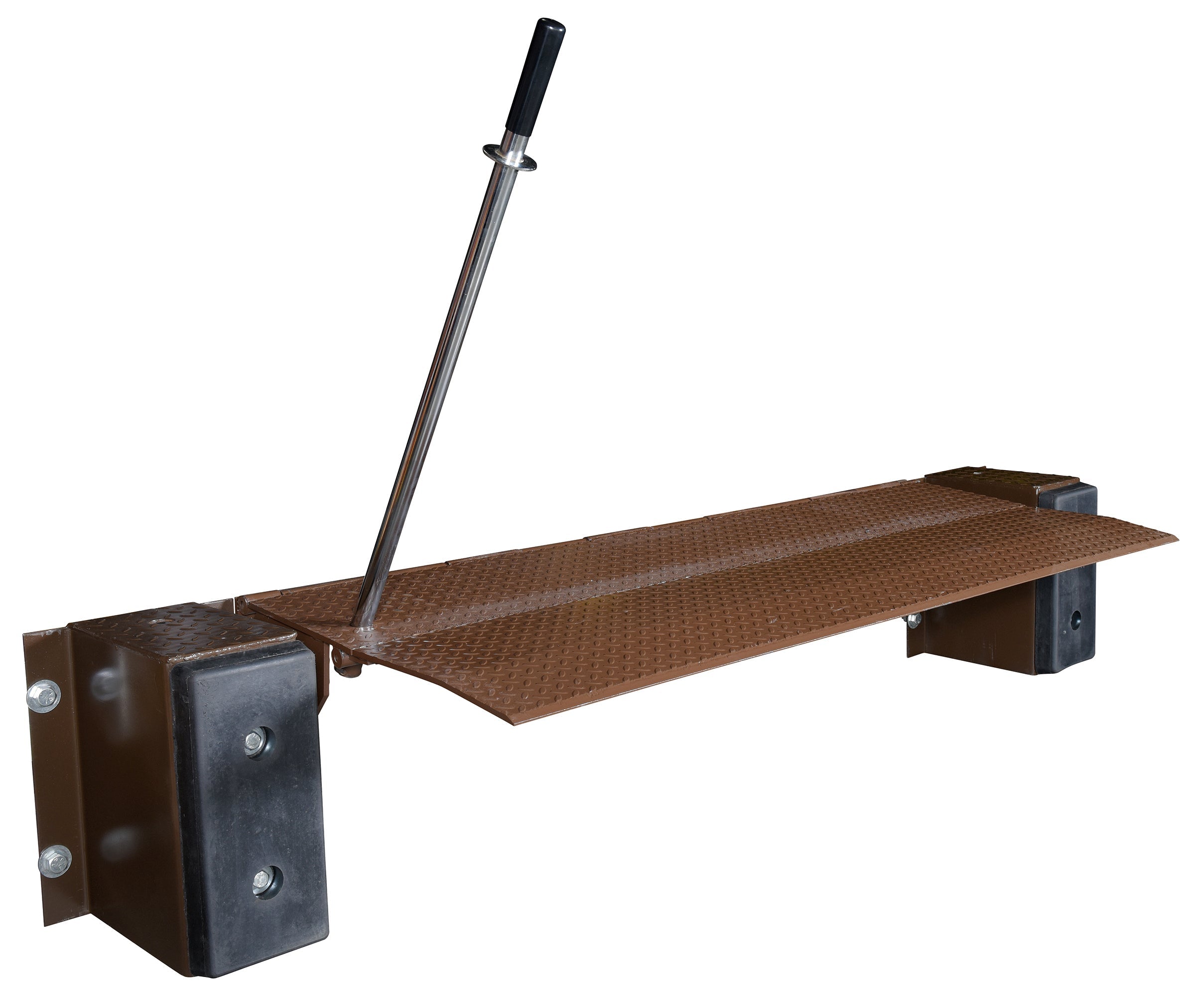

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. The leveler comes complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping is twenty-nine (29) inches (29-13/16" with 30,000 lb. capacity) with a (36-5/8") long ramping length available for smaller grade. A steel dock edge, approach ramp, or approach plate is necessary on the dock face, and a continuous weld (completely across the top, and down both sides of the mounting plate) is required for proper installation. Additionally, the mounting plate must be bolted to the dock face, via the anchor holes provided on the mounting plate. The Mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically. The Manual Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator actuates the lowering valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil. Truck must pull out for leveler to return to stored position. The Electric Hydraulic Edge-O-Dock is the easiest to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend. 115V, 1-phase power standard. Unit comes complete with motor, pump, control box, cylinder, lines, and oil. Truck must pull out for leveler to return to stored position.

Downloads
  • Vestil FM-3072 data sheet

  • Vestil FM-3066 data sheet

  • Vestil FM-2572 data sheet

  • Vestil FM-2566 data sheet

  • Vestil FM-2078 data sheet

  • Vestil FM-2072 data sheet

  • Vestil FM-2066 data sheet

  • Vestil FM-0648 data sheet

  • Vestil FM Instruction Manual

  • Vestil PE-3072 data sheet

  • Vestil PE-3066 data sheet

  • Vestil PE-2572 data sheet

  • Vestil PE-2572-36 data sheet

  • Vestil PE-2566 data sheet

  • Vestil PE-2078 data sheet

  • Vestil PE-2072 data sheet

  • Vestil PE-2066 data sheet

  • Vestil PE-1572-36 data sheet

  • Vestil PE Instruction Manual

  • Vestil PP-3072 data sheet

  • Vestil PP-3066 data sheet

  • Vestil PP-2572 data sheet

  • Vestil PP-2572-36 data sheet

  • Vestil PP-2078 data sheet

  • Vestil PP-2566 data sheet

  • Vestil PP-2072 data sheet

  • Vestil PP-2066 data sheet

  • Vestil PP-1572-36 data sheet

  • Vestil PP Instruction Manual
