Home / Vestil Lightweight Winch Stacker Truck

Vestil

Vestil Lightweight Winch Stacker Truck

Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck
Vestil Lightweight Winch Stacker Truck

Vestil Lightweight Winch Stacker Truck

$1,181.54

Ships In: 2 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Customers Also Bought

Description

Features & Specification

Videos

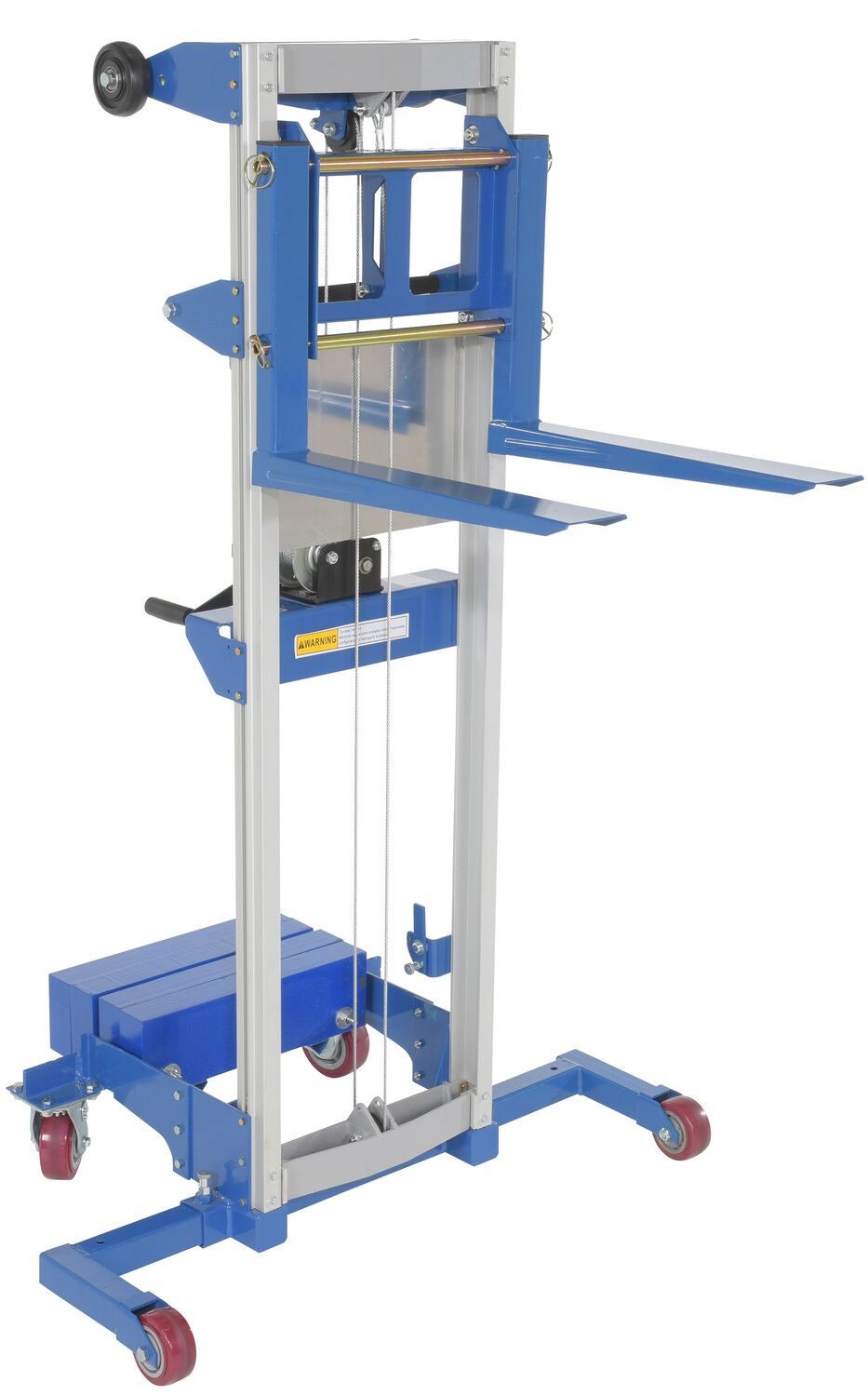

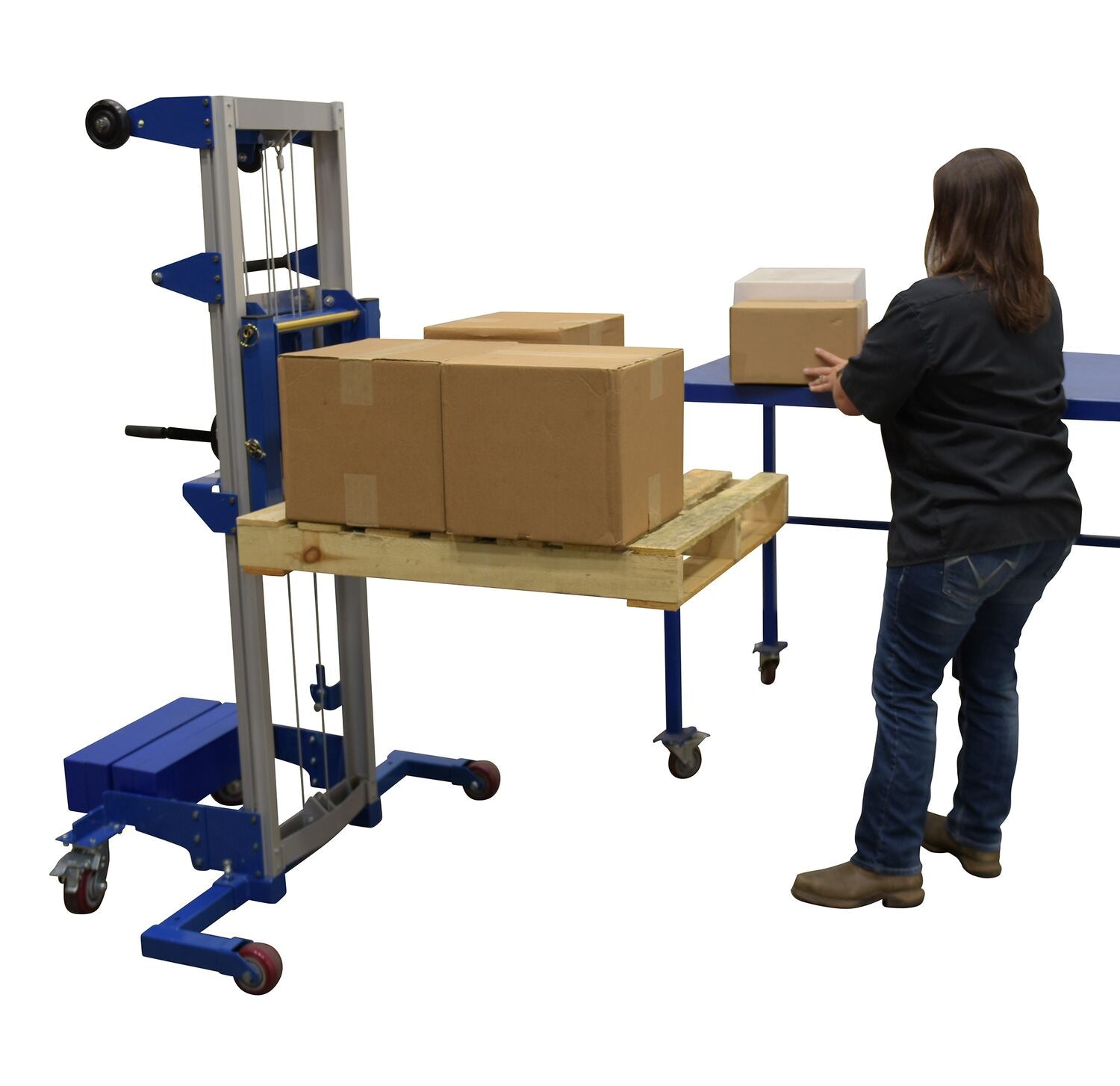

The Vestil Lightweight Winch Stacker Truck is designed to make lifting heavy items easier and safer. It features a winch that provides controlled lifting and lowering, thanks to an integrated brake system, a lightweight frame for maneuverability, and a 500-lb. maximum capacity (depending on the model). This stacker truck is suitable for a variety of lifting and transporting applications for palletized items.

Downloads
  • A-LIFT-CB Drawing

  • A-LIFT-CB-EHP Drawing

  • A-LIFT-CB-HP Drawing

  • A-LIFT-R Drawing

  • A-LIFT-R-HP Drawing

  • A-LIFT-S Drawing

  • A-LIFT-S-EHP Drawing

  • A-LIFT-S-HP Drawing

Hand Winch Lift Trucks
Model Image Capacity (lbs) Lowered Height Raised Height Forks Down/Up Overall Size
(WxLxH)
Wt.
(lbs)
Standard Design (Fixed Straddle Width: 12-3/4" (I.D.) and 21" (O.D.))

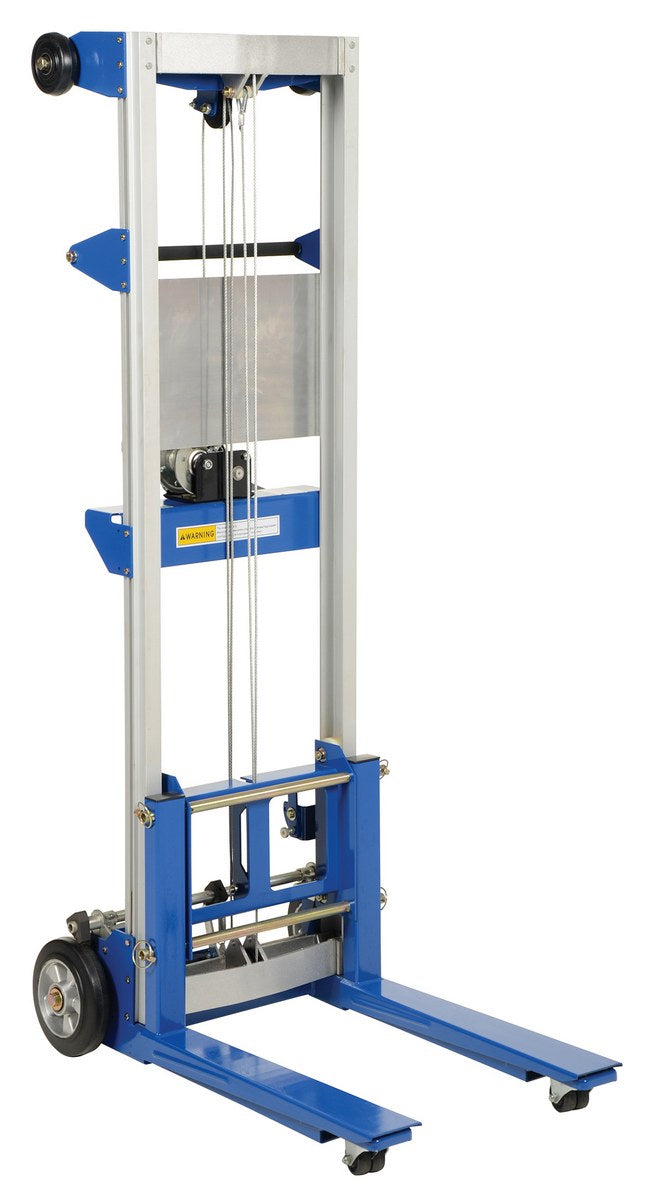

A-LIFT-R 500 3-1/2"/23-1/2" 47"/67" 24"x35"x 68-3/4" 191

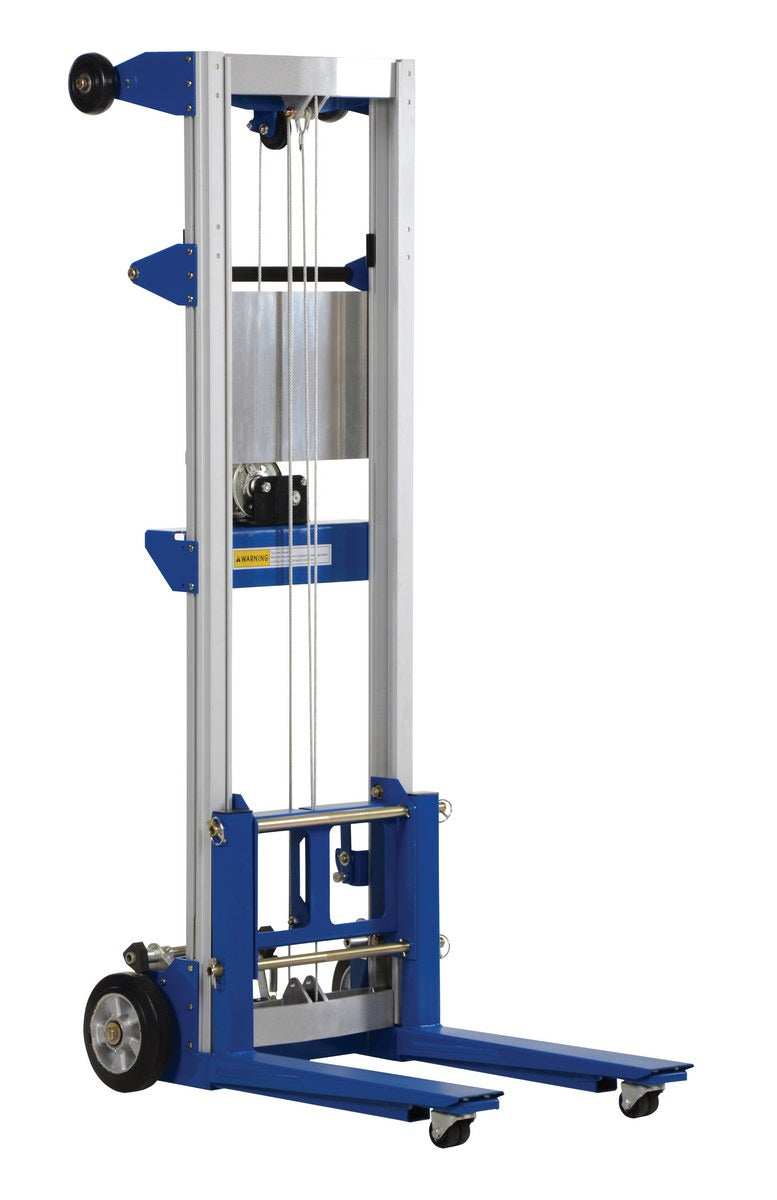

A-LIFT-R-HP 400 3-1/2"/23-1/2" 97"/117" 25"x35"x 67-5/16" 203

Straddle Design (Adjustable Straddle Width: 21-3/4" to 36-1/4" (I.D.) and 29"to43-7/8" (O.D.))

A-LIFT-S 500 1-1/4"/21-1/4" 47-1/4"/68-7/8" 43-7/8"x 42-1/2"x 67-5/16" 200

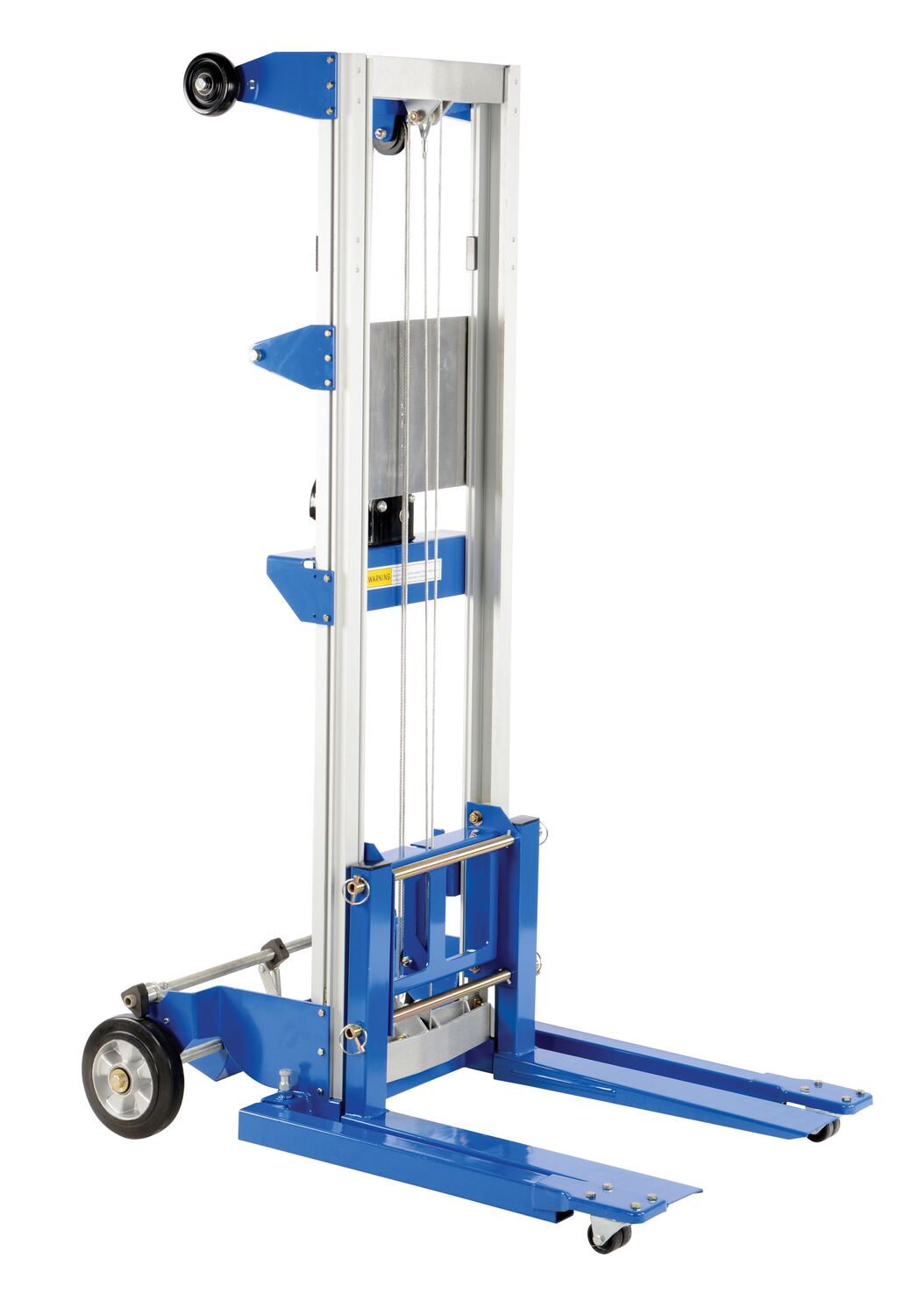

A-LIFT-S-HP 400 1-1/4"/21-1/4" 98-7/16"/120" 43-7/8"x42-1/2"x67-5/16" 219

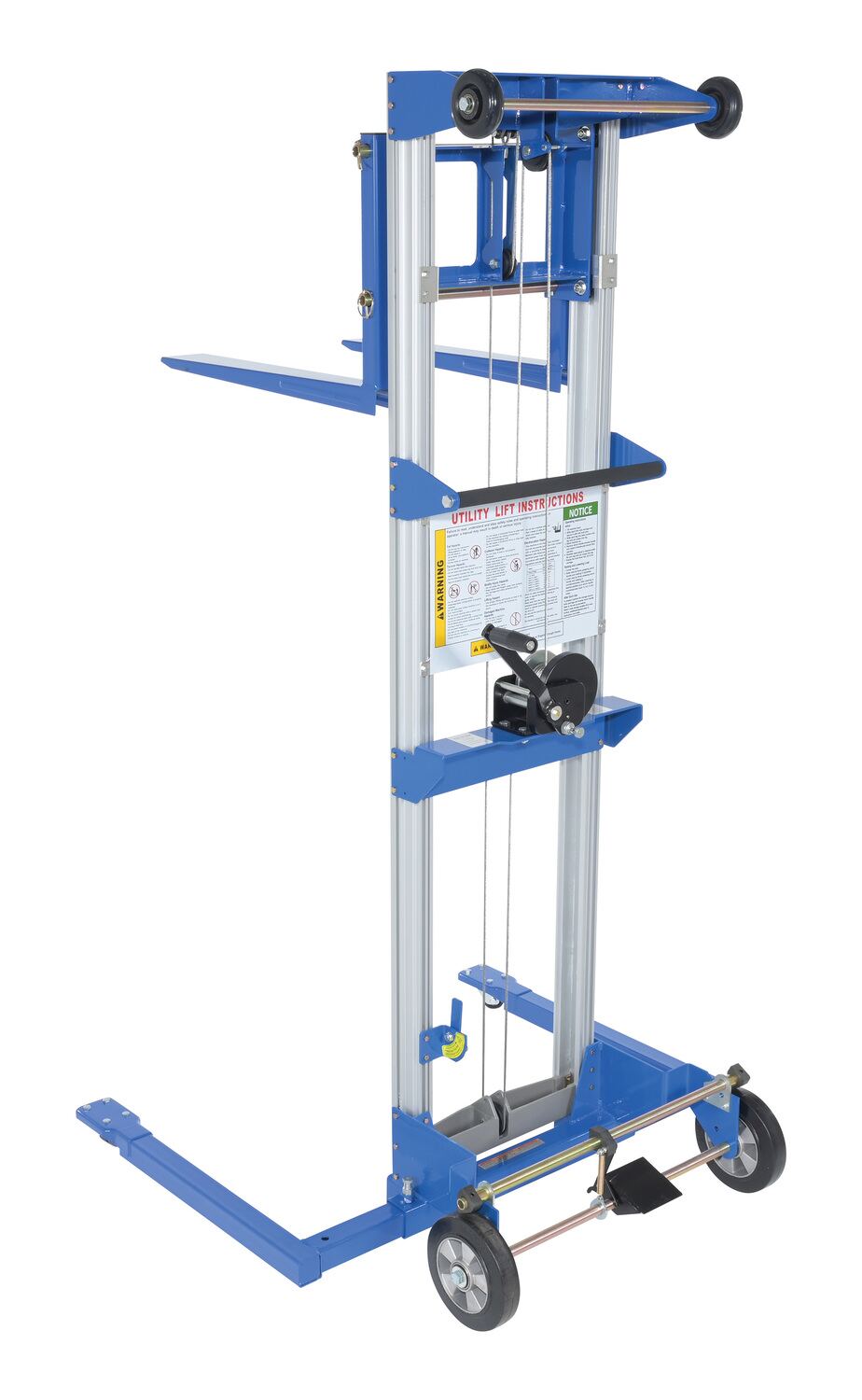

A-LIFT-S-EHP 350 1-1/4"/21-1/4" 122"/143-11/16" 43-7/8"x42-1/2"x79-1/8" 226

Counter-Balance Design (Adjustable Straddle Width:21-1/2"to 36-1/2 (I.D.) and 28-1/4 to 43-1/4 (O.D.))

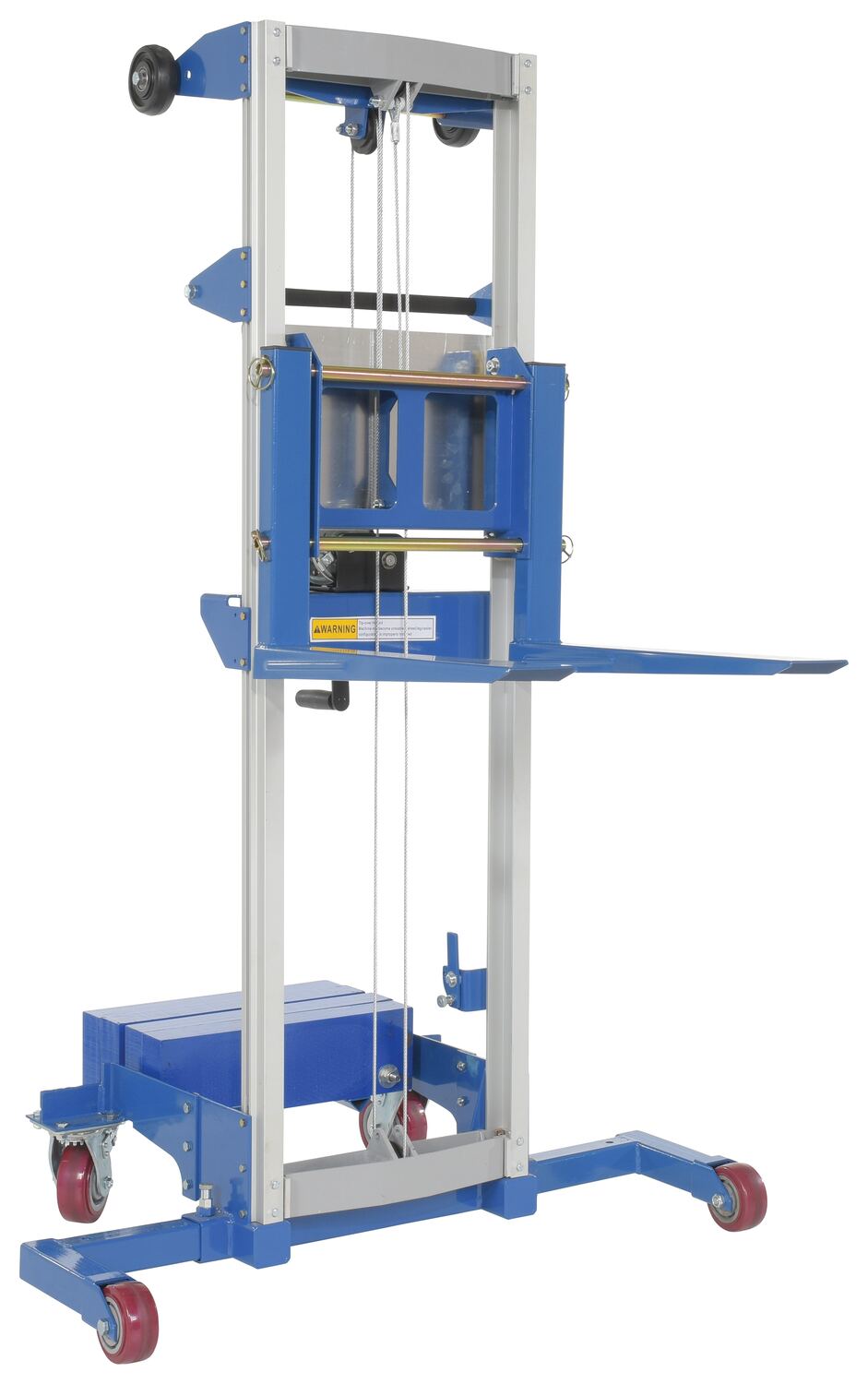

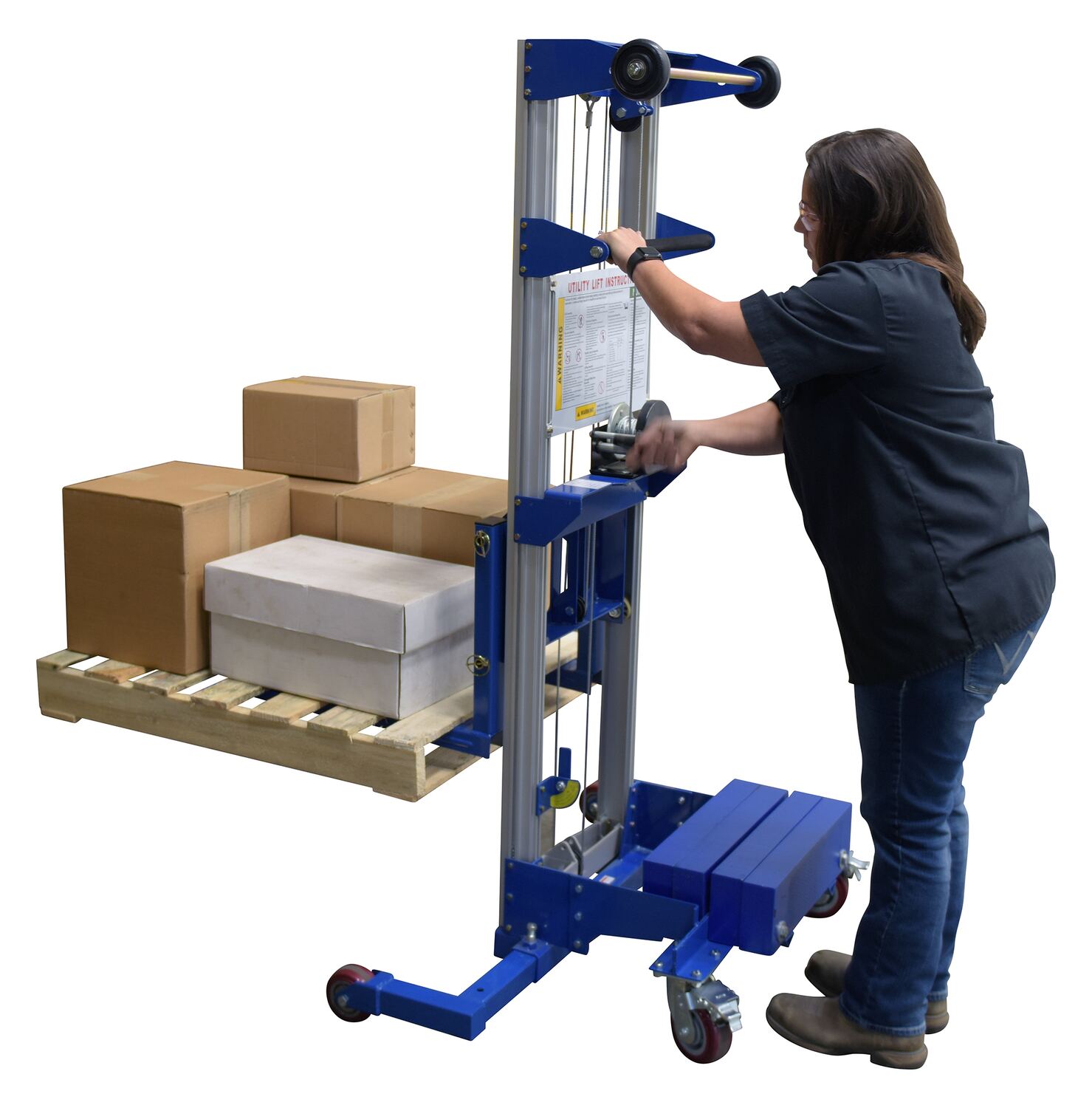

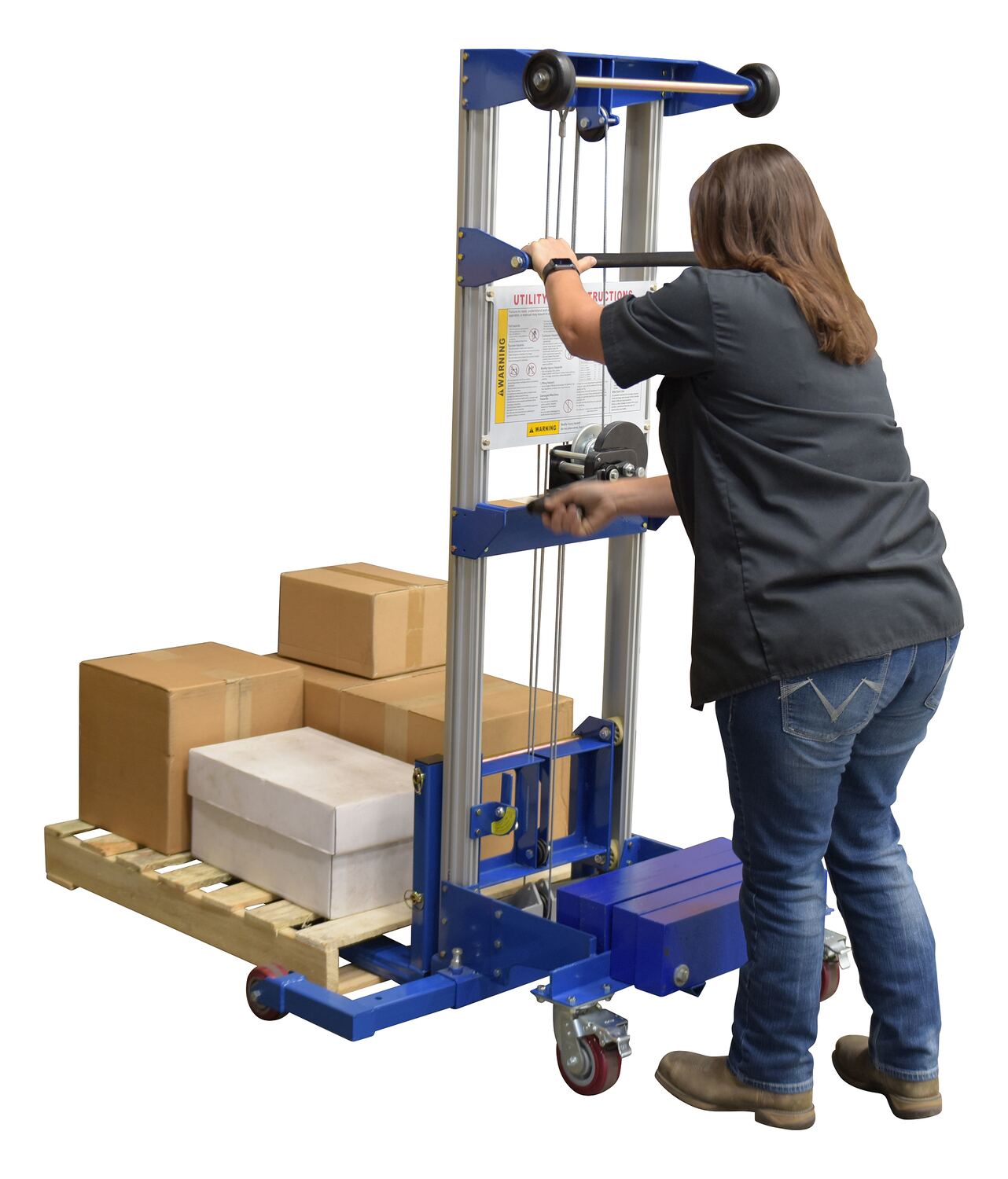

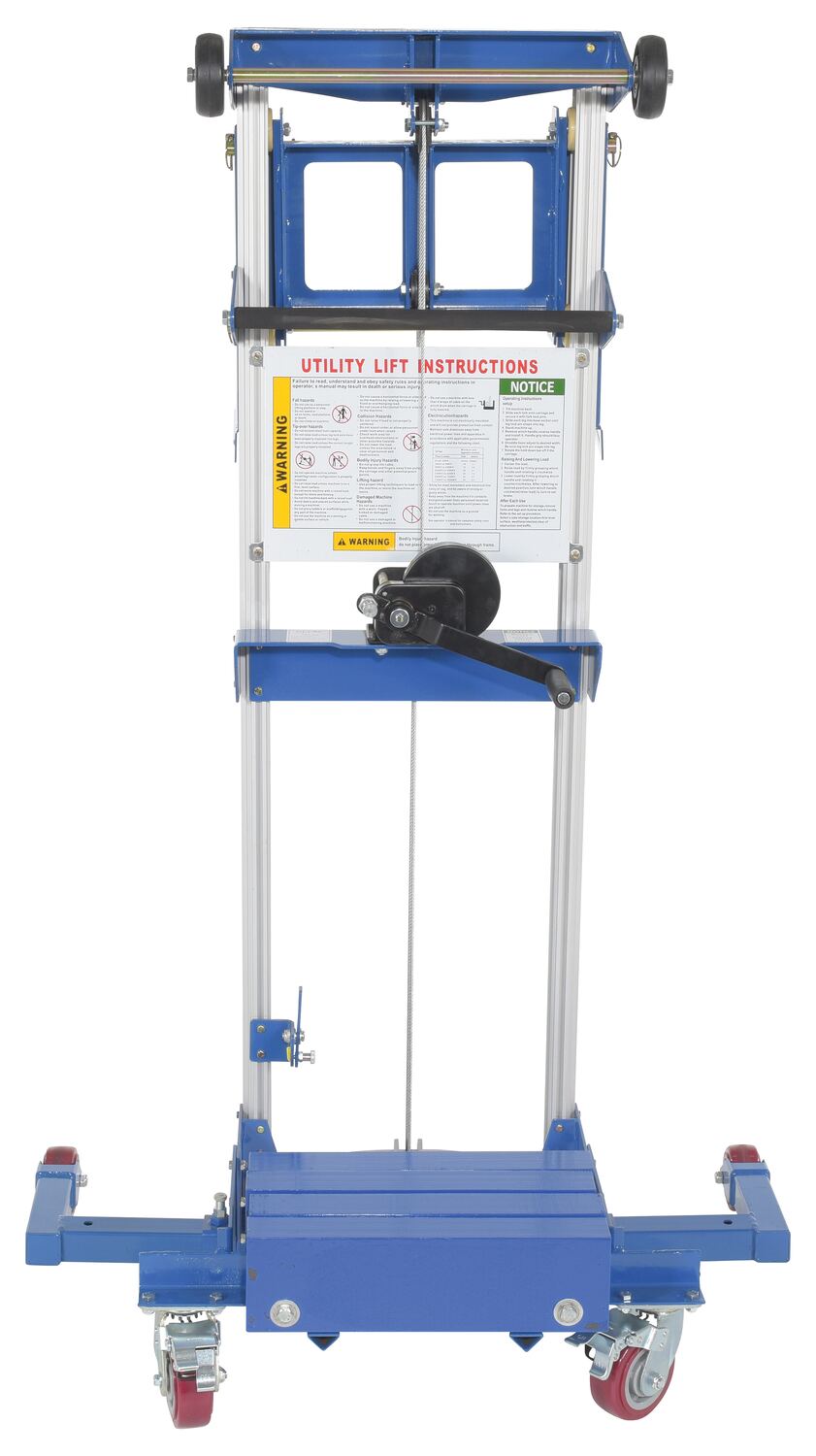

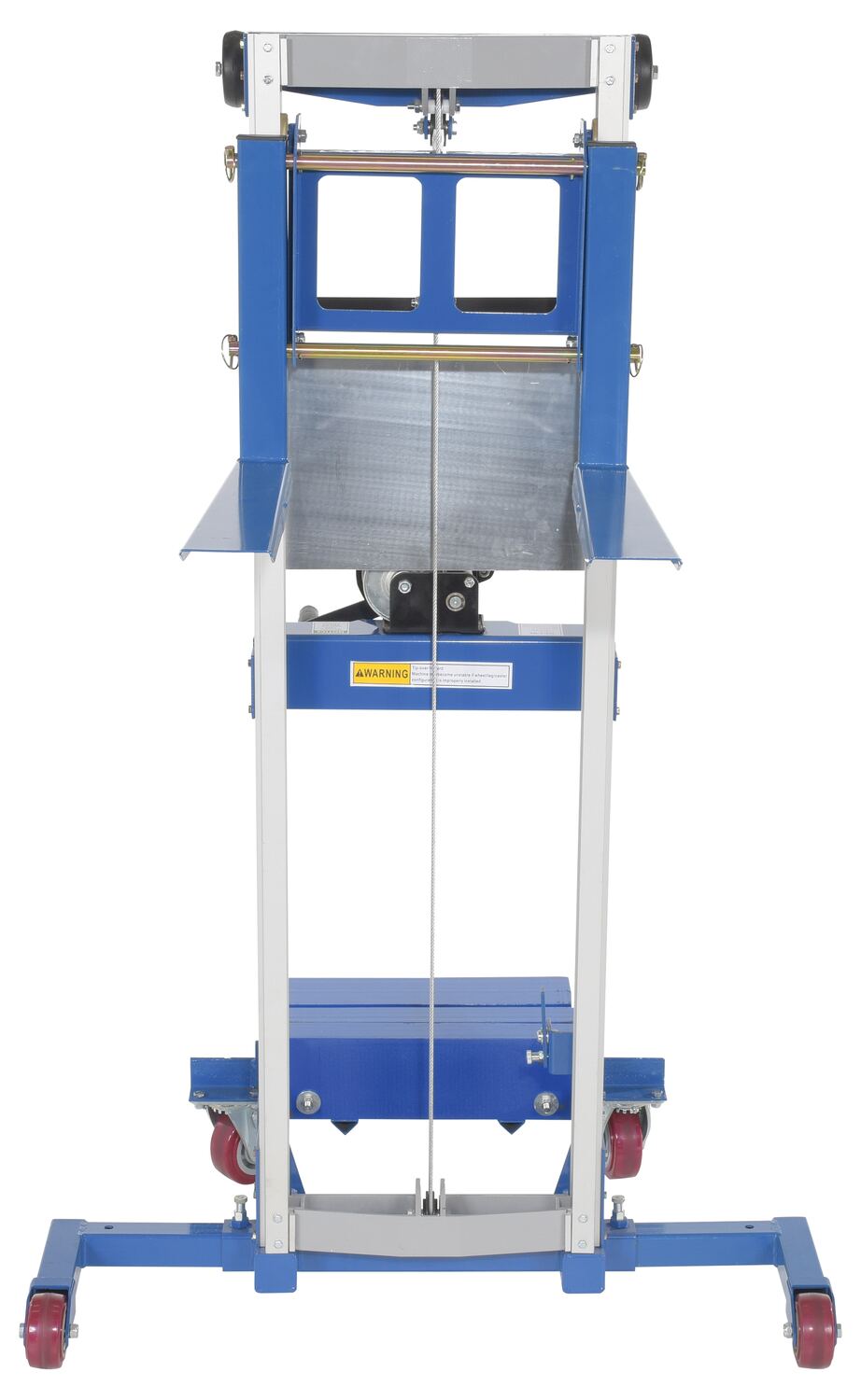

A-LIFT-CB 500 2"/21-1/4" 47-1/4"/68-7/8" 43-1/4"x 45-7/8"x 67-5/16" 437

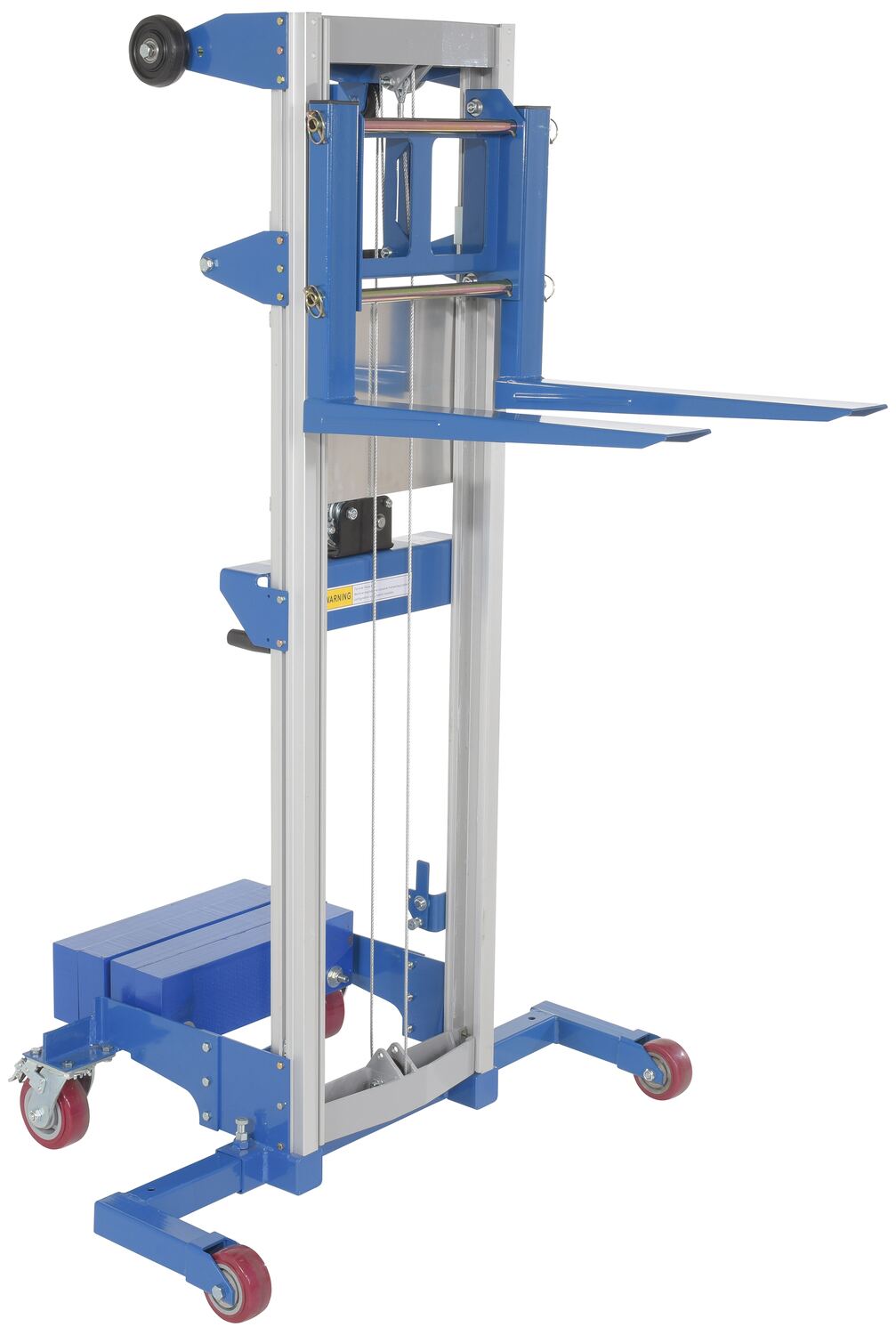

A-LIFT-CB-HP 400 2"/21-1/4" 98-7/16"/ 120" 43-1/4"x 45-7/8"x 67-5/16" 445

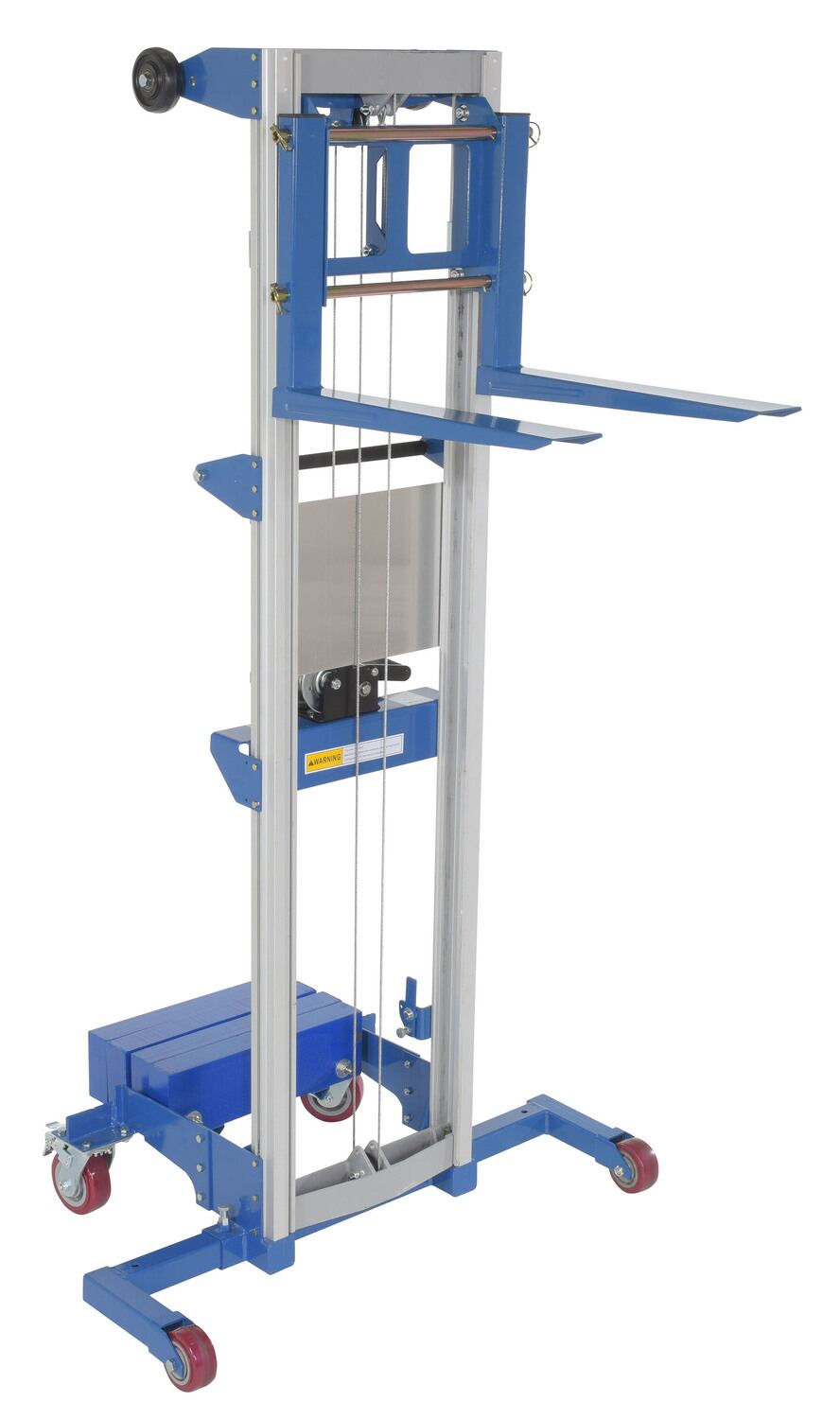

A-LIFT-CB-EHP 350 2"/21-1/4" 122"/143-11/16" 43-1/4"x 46"x 79-1/8" 454
