Home / Vestil Vertical Clamps with Chain

Vestil

Vestil Vertical Clamps with Chain

Vestil Vertical Clamps with Chain
Vestil Vertical Clamps with Chain
Vestil Vertical Clamps with Chain
Vestil Vertical Clamps with Chain
Vestil Vertical Clamps with Chain
Vestil Vertical Clamps with Chain
Vestil Vertical Clamps with Chain
Vestil Vertical Clamps with Chain

Vestil Vertical Clamps with Chain

$207.90

Typically Ships In: 1-2 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

  • Designed for vertical lifting
  • Versatile – lifting eye included
  • Reliable – heavy-duty steel construction

Customers Also Bought

Description

Features & Specification

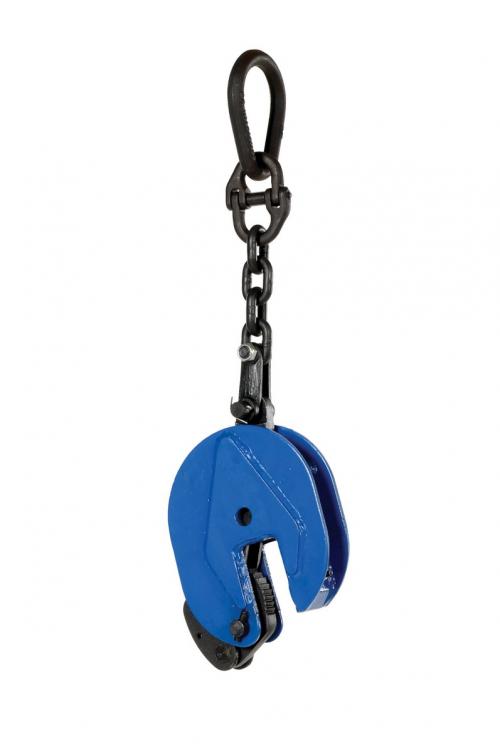

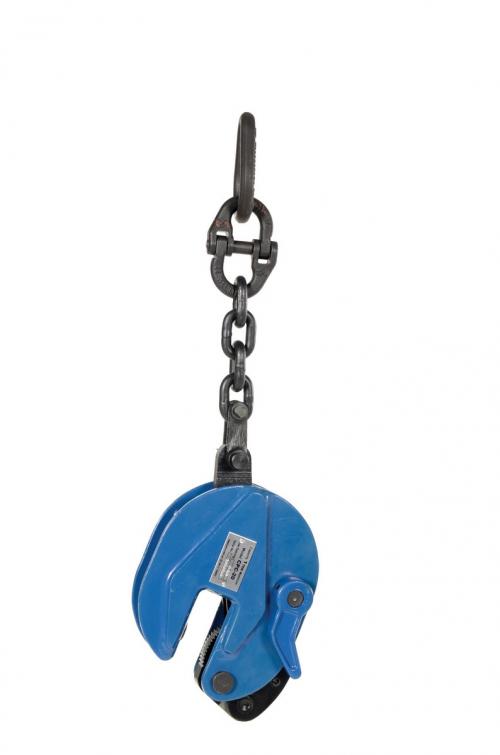

Vestil’s CPC vertical clamp series has been specifically designed to lift plate material easily in a vertical position.

Complete with a lifting eye with chain for greater versatility, reliable use over the coming years is guaranteed through the heavy-duty steel construction. Each piece in the series is meets ASME B30.20 specifications.

*NOTE: Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plates must be clear of oil. Not designed for use on stainless steel or aluminium plates.

  • Designed for vertical lifting
  • Versatile – lifting eye included
  • Reliable – heavy-duty steel construction
  • Meets MSME B30.20 specs
  • For use with materials with a surface hardness to 30 RC (300 HB)
Downloads
  • Vestil Vertical Plate Clamp CPC-10 Drawing

  • Vestil Vertical Plate Clamp User Manual

  • Vestil Vertical Plate Clamp CPC-10 Test Certificate

  • Vestil Vertical Plate Clamp CPC-20 Test Certificate

  • Vestil Vertical Plate Clamp CPC-40 Test Certificate

  • Vestil Vertical Plate Clamp CPC-80 Test Certificate

Model Image Description Attributes Net Wt.
(lbs)
CPC-10 Steel Vertical Plate Clamp with Chain 4 In. x 1-31/32 In. x 16-7/8 In. 1000 Lb. Capacity Blue Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
6
CPC-20 Steel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity Blue Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
14
CPC-40 Steel Vertical Plate Clamp with Chain 7 In. x 2-3/4 In. x 23-1/2 In. 4000 Lb. Capacity Blue Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
17
CPC-80 Steel Vertical Plate Clamp with Chain 9-3/4 In. x 4-3/4 In. x 27-1/2 In. 8000 Lb. Capacity Blue Min Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
33
