Home / William Hackett HA Lifting Point (UNC) Extended Bolt

William Hackett

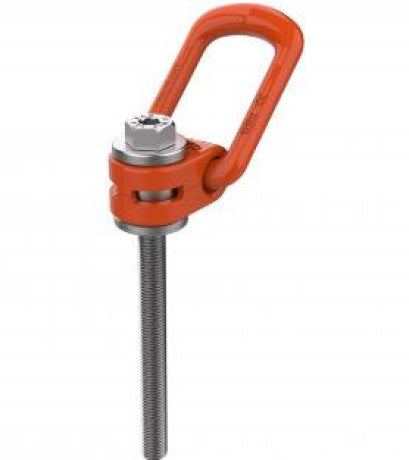

William Hackett HA Lifting Point (UNC) Extended Bolt

William Hackett HA Lifting Point (UNC) Extended Bolt
William Hackett HA Lifting Point (UNC) Extended Bolt

William Hackett HA Lifting Point (UNC) Extended Bolt

Price on Application

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Sizes: 3/8" - 2"
  • WLL: 0.63t - 20t
  • Alloy Steel
  • EN1677-1 & ASME B30.26
  • UNC Thread with Extended Bolt

Customers Also Bought

Description

William Hackett's HA Lifting Point (UNC Thread) with Extended Bolt has been specifically designed for use with loads that incorporate through holes and a nut fixing. Available in working load limits from 0.63t (3/8") right up to 20t (2"), these lifting points can rotate 360-degrees around the bolt axis, as well as pivoting 90-degrees, allowing these lifting points to orientate to the appropriate angle of lift, mitigating the risk of load damage. Engineered from strong alloy steel, the HA Lifting point boasts an operational temperature range of - 40°C to + 200°C without reduction in working load limit. Finally, load rated parts have been subject ot 100% magnaflux crack detection following heat treatment, with these units proof tested to 2.5 times the stated WLL and fatigue rated to 20,000 cycles at 1.5 times WLL.

Downloads
  • William Hackett HA Lifting Point (UNC) Extended Bolt Cut Sheet
