William Hackett HA Swivel Hoist Ring (UNC) Extended Bolt
William Hackett HA Swivel Hoist Ring (UNC) Extended Bolt
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought

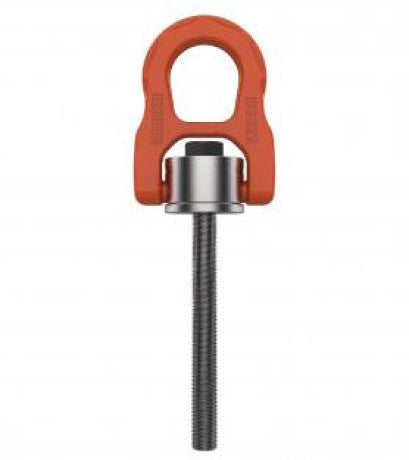

The HA Swivel Hoist Ring (UNC) Extended Bolt from William Hackett is a load attachment that has been designed for use with loads that incorporate through holes and nut fixing. They can rotate 360-degrees around the bolt axis, as well as pivot 180-degrees, allowing the hoist ring to orientate to the appropriate angle of lift, mitigating the risk of load damage. This extended bolt UNC thread model is suitable for both top and side mounting and maintains full WLL even when pulled at 90-degrees. Available in working load limits from 2200lbs (1/2") to 49500lbs (2-1/2"), these alloy steel extended bolt swivel hoist rings have been proof tested to 2.5 times the stated working load limit and have an operational temperature range of - 40°C to + 200°C without reduction in working load limit.
| Part Code | WLL lbs | Thread inch | A inch | B inch | C inch | D inch | E inch | F inch | G inch | H inch | I Inch | J inch | K inch | L inch | Torque Nm | Mass lbs |
| 8-H20-UNC12G/162L | 2200 | 1/2 | 1.97 | 2.17 | 1.85 | 5.06 | 5.94 | 3.23 | 0.51 | 0.50 | 0.55 | 2.13 | 0.39 | 0.94 | 100 | 2.87 |
| 8-H20-UNC16G/185L | 4400 | 5/8 | 1.97 | 2.17 | 1.85 | 5.94 | 6.10 | 3.23 | 0.51 | 0.62 | 0.55 | 2.13 | 0.39 | 0.94 | 150 | 2.95 |
| 8-H20-UNC20G230L | 6600 | 3/4 | 2.56 | 2.60 | 2.30 | 7.34 | 7.60 | 4.13 | 0.63 | 0.75 | 0.71 | 2.72 | 0.47 | 1.18 | 250 | 6.61 |
| 8-H20-UNC22G/265L | 8250 | 7/8 | 2.56 | 2.60 | 2.30 | 8.72 | 7.83 | 4.13 | 0.63 | 0.88 | 0.71 | 2.72 | 0.55 | 1.42 | 300 | 7.28 |
| 8-H20-UNC26G/265L | 11000 | 1 | 2.56 | 2.60 | 2.30 | 8.76 | 7.83 | 4.13 | 0.63 | 1.00 | 0.71 | 2.72 | 0.55 | 1.42 | 420 | 7.50 |
| 8-H20-UNC32G/340L | 17200 | 1-1/4 | 3.43 | 3.15 | 3.25 | 11.10 | 10.49 | 5.71 | 0.98 | 1.25 | 1.06 | 3.58 | 0.67 | 1.81 | 500 | 15.43 |
| 8-H20-UNC36G/360L | 27500 | 1-1/2 | 4.33 | 3.94 | 3.70 | 11.24 | 12.48 | 7.32 | 1.30 | 1.50 | 1.42 | 3.46 | 0.75 | 2.76 | 800 | 29.98 |
| 8-H20-UNC48G/385L | 44000 | 2 | 4.33 | 3.94 | 3.86 | 12.22 | 13.03 | 7.32 | 1.30 | 2.00 | 1.89 | 3.46 | 0.75 | 2.76 | 800 | 35.27 |
| 8-H20-UNC56G/400L | 48400 | 2-1/4 | 4.84 | 4.33 | 4.33 | 12.42 | 14.29 | 7.83 | 1.38 | 2.25 | 2.20 | 3.82 | 0.75 | 3.15 | 800 | 45.19 |
| 8-H20-UNC64G/410L | 49500 | 2-1/2 | 4.84 | 4.33 | 4.33 | 12.81 | 14.72 | 7.83 | 1.38 | 2.50 | 2.52 | 3.82 | 0.75 | 3.15 | 800 | 48.72 |
