Quick Overview:
  • Working Load Capacities: 3.2T / 5T / 10T
  • ASME B30.20
  • Suitable for pulling and lifting at angles
  • Built-in suspension point for low headroom
  • Lightweight design
  • Quick clamping and unclamping

Customers Also Bought

Description

Features & Specification

LIMITED OFFER: WHEN THEY'RE GONE, THEY'RE GONE!

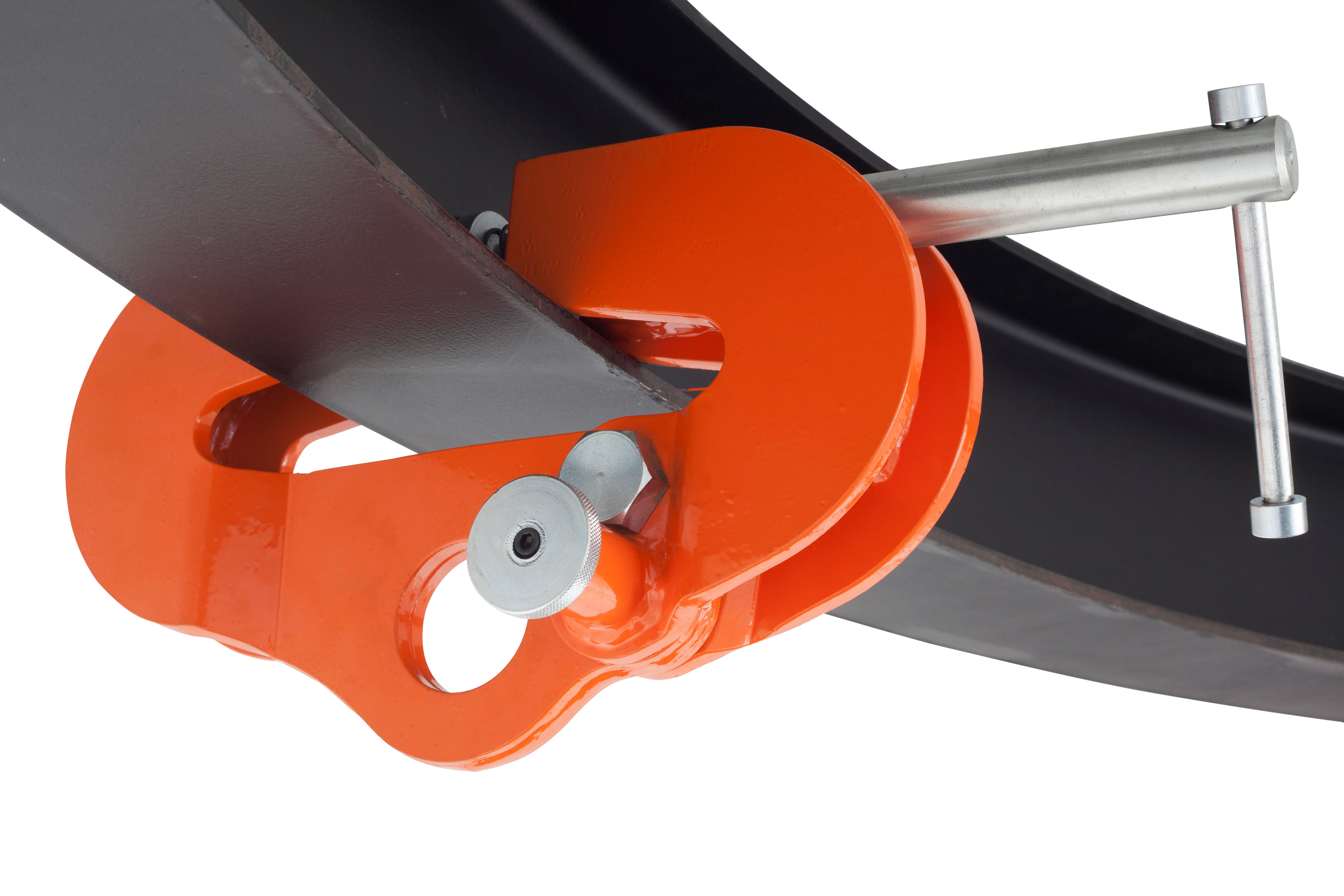

William Hacketts WH-UBC Universal Beam Clamp range has been designed for both vertical and side loading applications - ideally suited for situations where a traditional clamp isn't a feasible option.

Available in working load limits of 3.2t, 5t, and 10t, the WH-UBC is highly suitable to both pulling and lifting at angles across your beam, and can be loaded at any angle, eliminating the need for spreader beams.

Lightweight in design, with easy clamping and unclamping, these Beam Clamp units are fitted with adjustable locking mechanisms, and feature a built-in suspension point for low headroom applications.

Downloads
  • William Hackett UBC Universal Beam Clamp Data Sheet

Part Code WLL (lbs) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) G (in.) Beam Thickness (in.) Beam Width (in.) Mass (lbs)
028.320 7054
21.65
9.25
1.10
ø2.36 1.30
5.24
0.70
1.00 4.92-8.03
32.41
028.500 11023
24.35 10.63 1.47 ø2.95 1.42 6.18 0.94 1.00 4.92-12.01 62.39
028.1000 22046 24.35 10.63 1.38 ø3.15 1.42 8.86 1.73 1.00 4.92-12.01 83.33



WH-UBC Dimensional Diagram
