Home / RUD VRS Starpoint, UNC/UN Thread

RUD

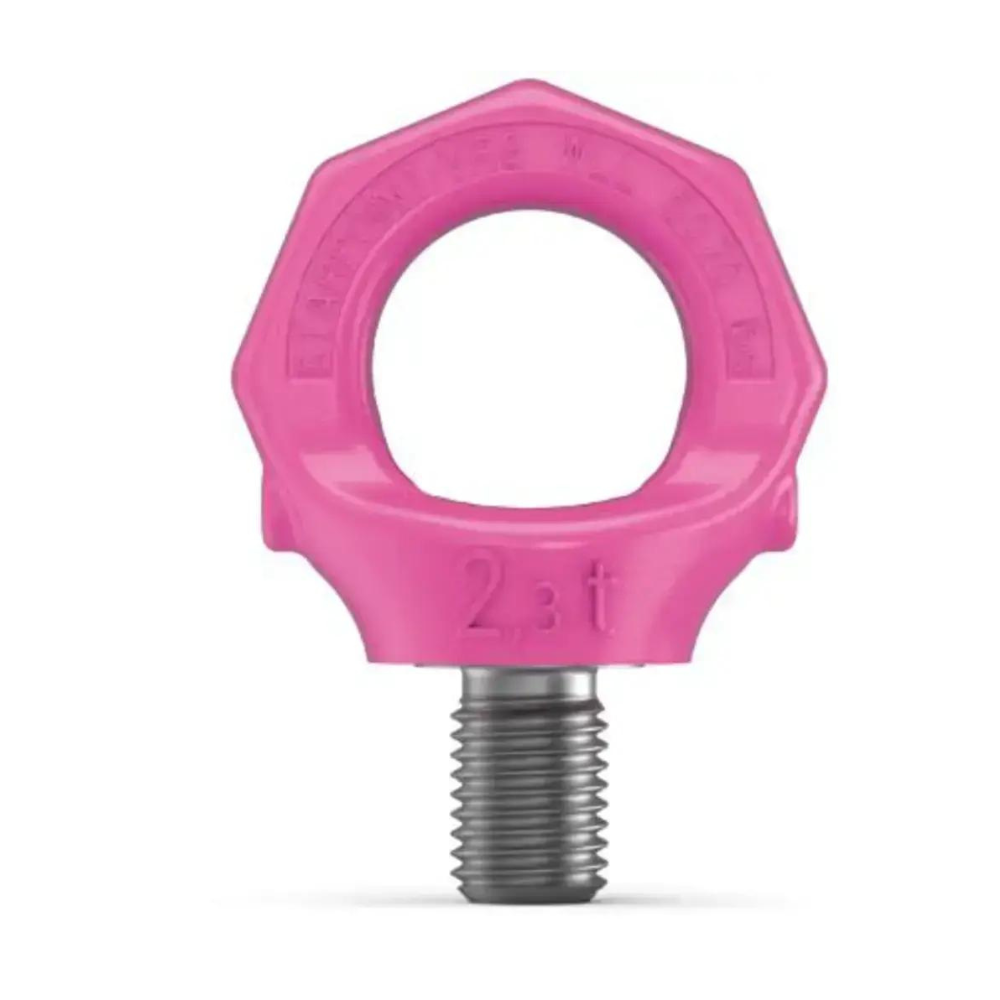

RUD VRS Starpoint, UNC/UN Thread

RUD VRS Starpoint, UNC/UN Thread
RUD VRS Starpoint, UNC/UN Thread

RUD VRS Starpoint, UNC/UN Thread

$89.00

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 0.1t - 9t
  • UNC Thread
  • Non-detachable ICE Bolt
  • Variable Bolt Lengths
  • 360° adjustable in force direction

Customers Also Bought

Description

Features & Specification

RUD's VRS Starpoint, UNC Thread, boltable lifting point comes in a comprehensive range of thread sizes and working load limits - from 0.1t - 9t.

Featuring a non-detachable ICE-Bolt to reduce the risk of using unsuitable standard bolts,  each unit has clear marking of minimum WLL for all loading directions, as well as markings of thread size and batch numbers on the bolt head.

Components have been tested to the criterias of BG/DGUV "GS-HM 36".

Quick and easy installation via just one bolt connection.

Downloads
  • RUD VRS Starpoint Data Sheet

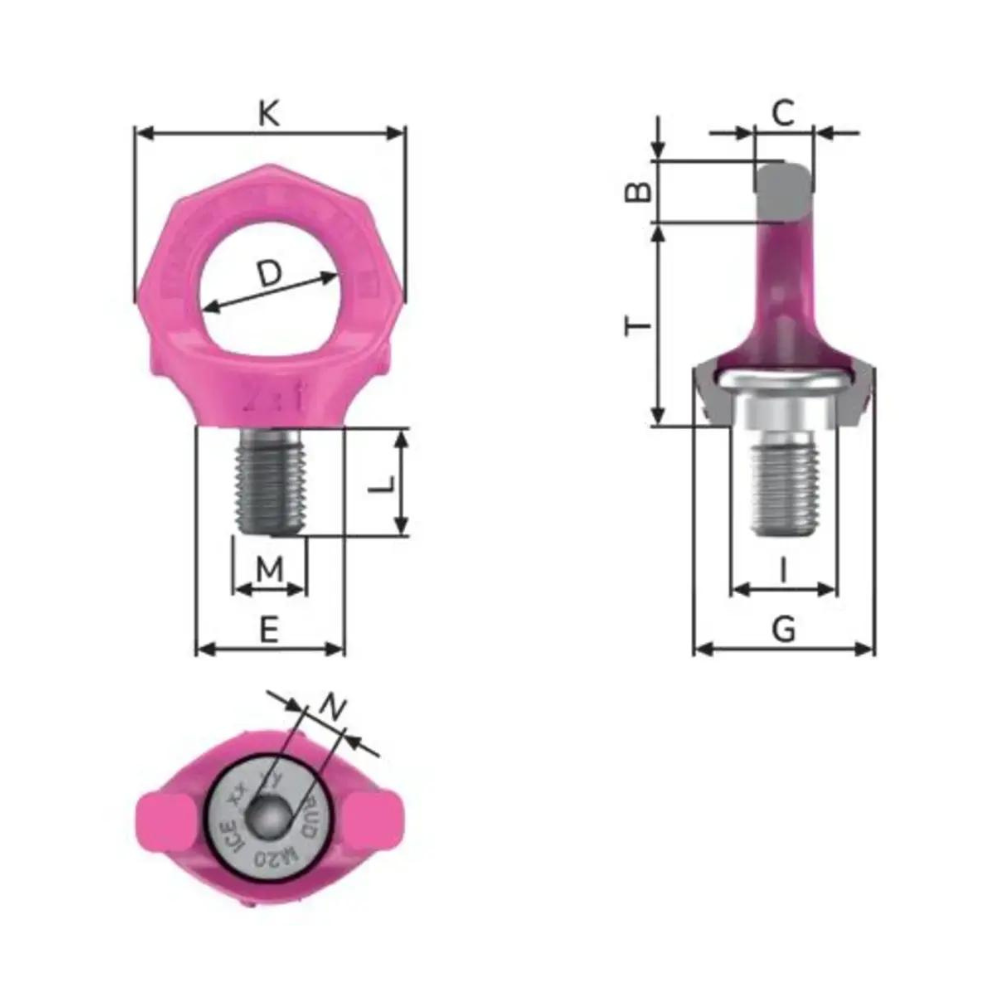

SKU

WLL

(lbs)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

G

(mm)

I

(mm)

K

(mm)

L

(mm)

M

N

(in.)

T

(mm)

7999105

220

9

7

20

23

28

13

37

9

1/4"-20UNC

0.25

28

7103959

880

11

9

25

25

30

16.3

47

15

3/8"-16UNC

0.25

35

7103960

1650

13

10

30

30

34

19.8

56

18

1/2"-13UNC

0.3125

42

7103965

9920

26

24

60

66

75

44

114

45

1 1/4"-7UNC

0.625

87

7991917

15430

32

29

73

76

98

53

135

65

1 1/2"-8UN

0.875

104

7103966

15430

32

29

73

76

98

53

135

65

1 1/2"-6UNC

0.875

104

7103967

19840

36

34

85

86

109

62

157

43

1 3/4"-5UNC

1

122
