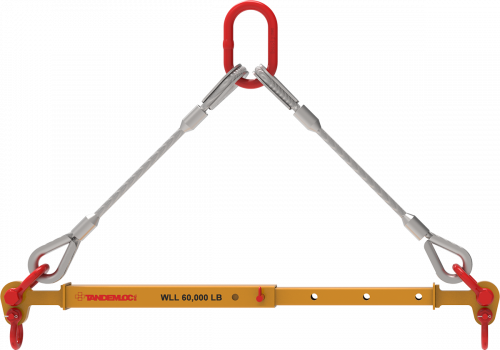

Tandemloc AT 14 Series Telescopic Spreader Beams (With Top Sling)
Tandemloc AT 14 Series Telescopic Spreader Beams (With Top Sling)
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
The AT14 Series Adjustable Telescopic Spreader Beams continue to showcase the quality American manufacturing associated with Tandemloc.
Offering an extensive range of minimum and maximum spread widths in convenient increments of only a few inches, in fact, there are 146 options available, therefore we're positive that we'll have a solution to suit most, if not all, requirements.
Available in safe working load limits from 2,000lbs right up to 100,00lbs, these versatile spreader beams are designed and manufactured to meet/exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0, and are all proof tested to 125% of the stated WLL.
Sandblasted, primed, and painted in a signature safety yellow for high visibility, these fully certified adjustable spreader bars include top and bottom shackles, with optional wire rope rigging available ensuring that you're ready to hook and lift.
| Model | WLL | Max. Spread |
Min. Spread |
Sling Angle | Weight |
| AT14A002-072SPA | 2,000lbs | 72" | 48" | 45° | 109lbs |
| AT14A002-084SPA | 2,000lbs | 84" | 54" | 45° | 125lbs |
| AT14A002-096SPA | 2,000lbs | 96" | 60" | 45° | 145lbs |
| AT14A002-120SPA | 2,000lbs | 120" | 72" | 45° | 177lbs |
| AT14A002-144SPA | 2,000lbs | 144" | 84" | 45° | 212lbs |
| AT14A002-168SPA | 2,000lbs | 168" | 96" | 45° | 230lbs |
| AT14A002-180SPA | 2,000lbs | 180" | 108" | 45° | 353lbs |
| AT14A002-240SPA | 2,000lbs | 240" | 144" | 45° | 462lbs |
| AT14A004-096SPA | 4,000lbs | 96" | 60" | 45° | 147lbs |
| AT14A004-120SPA | 4,000lbs | 120" | 72" | 45° | 177lbs |
| AT14A004-180SPA | 4,000lbs | 180" | 108" | 45° | 359lbs |
| AT14A004-072SPA | 4,000lbs | 72" | 48" | 45° | 116lbs |
| AT14A004-240SPA | 4,000lbs | 240" | 144" | 45° | 465lbs |
| AT14A008-048SPA | 8,000lbs | 48" | 36" | 45° | 80lbs |
| AT14A008-072SPA | 8,000lbs | 72" | 48" | 45° | 120lbs |
| AT14A008-096SPA | 8,000lbs | 96" | 60" | 45° | 153lbs |
| AT14A008-120SPA | 8,000lbs | 120" | 72" | 45° | 184lbs |
| AT14A008-144SPA | 8,000lbs | 144" | 84" | 45° | 216lbs |
| AT14A008-180SPA | 8,000lbs | 180" | 108" | 45° | 365lbs |
| AT14A008-240SPA | 8,000lbs | 240" | 144" | 45° | 475lbs |
| AT14A013-072SPA | 13,000lbs | 72" | 48" | 45° | 137lbs |
| AT14A013-084SPA | 13,000lbs | 84" | 54" | 45° | 154lbs |
| AT14A013-096SPA | 13,000lbs | 96" | 60" | 45° | 171lbs |
| AT14A013-120SPA | 13,000lbs | 120" | 72" | 45° | 212lbs |
| AT14A013-144SPA | 13,000lbs | 144" | 90" | 45° | 252lbs |
| AT14A013-180SPA | 13,000lbs | 180" | 108" | 45° | 385lbs |
| AT14A013-240SPA | 13,000lbs | 240" | 144" | 45° | 495lbs |
| AT14A013-318SPA | 13,000lbs | 318" | 180" | 45° | 779lbs |
| AT14A018-072SPA | 18,000lbs | 72" | 48" | 45° | 154lbs |
| AT14A018-084SPA | 18,000lbs | 84" | 54" | 45° | 173lbs |
| AT14A018-096SPA | 18,000lbs | 96" | 66" | 45° | 196lbs |
| AT14A018-120SPA | 18,000lbs | 120" | 75" | 45° | 230lbs |
| AT14A018-144SPA | 18,000lbs | 144" | 90" | 45° | 272lbs |
| AT14A018-168SPA | 18,000lbs | 168" | 102" | 45° | 393lbs |
| AT14A018-180SPA | 18,000lbs | 180" | 108" | 45° | 404lbs |
| AT14A018-240SPA | 18,000lbs | 240" | 144" | 45° | 523lbs |
| AT14A018-360SPA | 18,000lbs | 360" | 204" | 45° | 903lbs |
| AT14A020-072SPA | 20,000lbs | 72" | 48" | 45° | 178lbs |
| AT14A020-084SPA | 20,000lbs | 84" | 54" | 45° | 195lbs |
| AT14A020-096SPA | 20,000lbs | 96" | 66" | 45° | 227lbs |
| AT14A020-120SPA | 20,000lbs | 120" | 78" | 45° | 260lbs |
| AT14A020-144SPA | 20,000lbs | 144" | 90" | 45° | 294lbs |
| AT14A020-168SPA | 20,000lbs | 168" | 102" | 45° | 406lbs |
| AT14A020-180SPA | 20,000lbs | 180" | 108" | 45° | 428lbs |
| AT14A020-240SPA | 20,000lbs | 240" | 144" | 45° | 545lbs |
| AT14A020-360SPA | 20,000lbs | 360" | 204" | 45° | 1103lbs |
| AT14A023-072SPA | 23,000lbs | 72" | 48" | 45° | 202lbs |
| AT14A023-084SPA | 23,000lbs | 84" | 54" | 45° | 227lbs |
| AT14A023-096SPA | 23,000lbs | 96" | 66" | 45° | 272lbs |
| AT14A023-120SPA | 23,000lbs | 120" | 78" | 45° | 315lbs |
| AT14A023-144SPA | 23,000lbs | 144" | 90" | 45° | 361lbs |
| AT14A023-168SPA | 23,000lbs | 168" | 102" | 45° | 406lbs |
| AT14A023-180SPA | 23,000lbs | 180" | 108" | 45° | 428lbs |
| AT14A023-240SPA | 23,000lbs | 240" | 144" | 45° | 660lbs |
| AT14A023-360SPA | 23,000lbs | 360" | 204" | 45° | 1103lbs |
| AT14A025-072SPA | 25,000lbs | 72" | 51" | 45° | 252lbs |
| AT14A025-096SPA | 25,000lbs | 96" | 66" | 45° | 307lbs |
| AT14A025-120SPA | 25,000lbs | 120" | 78" | 45° | 352lbs |
| AT14A025-144SPA | 25,000lbs | 144" | 90" | 45° | 398lbs |
| AT14A025-168SPA | 25,000lbs | 168" | 102" | 45° | 442lbs |
| AT14A025-180SPA | 25,000lbs | 180" | 108" | 45° | 465lbs |
| AT14A025-216SPA | 25,000lbs | 216" | 132" | 45° | 626lbs |
| AT14A025-240SPA | 25,000lbs | 240" | 144" | 45° | 698lbs |
| AT14A025-360SPA | 25,000lbs | 360" | 204" | 45° | 1138lbs |
| AT14A030-072SPA | 30,000lbs | 72" | 51" | 45° | 287lbs |
| AT14A030-084SPA | 30,000lbs | 84" | 60" | 45° | 330lbs |
| AT14A030-096SPA | 30,000lbs | 96" | 66" | 45° | 358lbs |
| AT14A030-120SPA | 30,000lbs | 120" | 78" | 45° | 418lbs |
| AT14A030-144SPA | 30,000lbs | 144" | 90" | 45° | 475lbs |
| AT14A030-168SPA | 30,000lbs | 168" | 102" | 45° | 534lbs |
| AT14A030-180SPA | 30,000lbs | 180" | 108" | 45° | 564lbs |
| AT14A030-240SPA | 30,000lbs | 240" | 144" | 45° | 724lbs |
| AT14A030-360SPA | 30,000lbs | 360" | 204" | 45° | 1180lbs |
| AT14A032-072SPA | 32,000lbs | 72" | 51" | 45° | 287lbs |
| AT14A032-084SPA | 32,000lbs | 84" | 60" | 45° | 330lbs |
| AT14A032-096SPA | 32,000lbs | 96" | 66" | 45° | 358lbs |
| AT14A032-120SPA | 32,000lbs | 120" | 78" | 45° | 418lbs |
| AT14A032-144SPA | 32,000lbs | 144" | 90" | 45° | 475lbs |
| AT14A032-168SPA | 32,000lbs | 168" | 102" | 45° | 534lbs |
| AT14A032-180SPA | 32,000lbs | 180" | 108" | 45° | 564lbs |
| AT14A032-240SPA | 32,000lbs | 240" | 144" | 45° | 724lbs |
| AT14A032-360SPA | 32,000lbs | 360" | 204" | 45° | 1180lbs |
| AT14A036-072SPA | 36,000lbs | 72" | 51" | 45° | 333lbs |
| AT14A036-084SPA | 36,000lbs | 84" | 60" | 45° | 376lbs |
| AT14A036-096SPA | 36,000lbs | 96" | 66" | 45° | 406lbs |
| AT14A036-120SPA | 36,000lbs | 120" | 78" | 45° | 468lbs |
| AT14A036-144SPA | 36,000lbs | 144" | 90" | 45° | 528lbs |
| AT14A036-180SPA | 36,000lbs | 180" | 108" | 45° | 618lbs |
| AT14A036-240SPA | 36,000lbs | 240" | 144" | 45° | 782lbs |
| AT14A036-288SPA | 36,000lbs | 288" | 168" | 45° | 1037lbs |
| AT14A036-360SPA | 36,000lbs | 360" | 204" | 45° | 1248lbs |
| AT14A040-072SPA | 40,000lbs | 72" | 54" | 45° | 395lbs |
| AT14A040-096SPA | 40,000lbs | 96" | 66" | 45° | 439lbs |
| AT14A040-120SPA | 40,000lbs | 120" | 78" | 45° | 587lbs |
| AT14A040-144SPA | 40,000lbs | 144" | 90" | 45° | 534lbs |
| AT14A040-168SPA | 40,000lbs | 168" | 102" | 45° | 583lbs |
| AT14A040-180SPA | 40,000lbs | 180" | 108" | 45° | 682lbs |
| AT14A040-240SPA | 40,000lbs | 240" | 144" | 45° | 843lbs |
| AT14A040-360SPA | 40,000lbs | 360" | 204" | 45° | 1456lbs |
| AT14A040-480SPA | 40,000lbs | 480" | 276" | 45° | 2187lbs |
| AT14A046-072SPA | 46,000lbs | 72" | 54" | 45° | 374lbs |
| AT14A046-096SPA | 46,000lbs | 96" | 66" | 45° | 431lbs |
| AT14A046-120SPA | 46,000lbs | 120" | 78" | 45° | 573lbs |
| AT14A046-144SPA | 46,000lbs | 144" | 90" | 45° | 631lbs |
| AT14A046-168SPA | 46,000lbs | 168" | 102" | 45° | 691lbs |
| AT14A046-180SPA | 46,000lbs | 180" | 108" | 45° | 721lbs |
| AT14A046-240SPA | 46,000lbs | 240" | 144" | 45° | 997lbs |
| AT14A046-360SPA | 46,000lbs | 360" | 204" | 45° | 1508lbs |
| AT14A046-480SPA | 46,000lbs | 480" | 276" | 45° | 2187lbs |
| AT14A050-120SPA | 50,000lbs | 120" | 78" | 45° | 597lbs |
| AT14A050-144SPA | 50,000lbs | 144" | 96" | 45° | 730lbs |
| AT14A050-180SPA | 50,000lbs | 180" | 108" | 45° | 814lbs |
| AT14A050-240SPA | 50,000lbs | 240" | 144" | 45° | 1033lbs |
| AT14A050-288SPA | 50,000lbs | 288" | 168" | 45° | 1190lbs |
| AT14A050-360SPA | 50,000lbs | 360" | 204" | 45° | 1618lbs |
| AT14A050-480SPA | 50,000lbs | 480" | 276" | 45° | 2525lbs |
| AT14A060-108SPA | 60,000lbs | 108" | 72" | 45° | 710lbs |
| AT14A060-120SPA | 60,000lbs | 120" | 78" | 45° | 738lbs |
| AT14A060-144SPA | 60,000lbs | 144" | 96" | 45° | 858lbs |
| AT14A060-168SPA | 60,000lbs | 168" | 102" | 45° | 800lbs |
| AT14A060-180SPA | 60,000lbs | 180" | 108" | 45° | 947lbs |
| AT14A060-216SPA | 60,000lbs | 216" | 132" | 45° | 1160lbs |
| AT14A060-240SPA | 60,000lbs | 240" | 144" | 45° | 1232lbs |
| AT14A060-360SPA | 60,000lbs | 360" | 204" | 45° | 1942lbs |
| AT14A060-480SPA | 60,000lbs | 480" | 276" | 45° | 2707lbs |
| AT14A067-120SPA | 67,000lbs | 120" | 78" | 45° | 738lbs |
| AT14A067-144SPA | 67,000lbs | 144" | 96" | 45° | 858lbs |
| AT14A067-168SPA | 67,000lbs | 168" | 102" | 45° | 800lbs |
| AT14A067-180SPA | 67,000lbs | 180" | 108" | 45° | 947lbs |
| AT14A067-216SPA | 67,000lbs | 216" | 132" | 45° | 1160lbs |
| AT14A067-240SPA | 67,000lbs | 240" | 144" | 45° | 1232lbs |
| AT14A067-360SPA | 67,000lbs | 360" | 204" | 45° | 1942lbs |
| AT14A067-480SPA | 67,000lbs | 480" | 276" | 45° | 2707lbs |
| AT14A070-240SPA | 70,000lbs | 240" | 144" | 45° | 1373lbs |
| AT14A070-480SPA | 70,000lbs | 480" | 276" | 45° | 2837lbs |
| AT14A080-144SPA | 80,000lbs | 144" | 96" | 45° | 1229lbs |
| AT14A080-168SPA | 80,000lbs | 168" | 108" | 45° | 1308lbs |
| AT14A080-180SPA | 80,000lbs | 180" | 114" | 45° | 1332lbs |
| AT14A080-192SPA | 80,000lbs | 192" | 120" | 45° | 1438lbs |
| AT14A080-216SPA | 80,000lbs | 216" | 132" | 45° | 1466lbs |
| AT14A080-240SPA | 80,000lbs | 240" | 144" | 45° | 1702lbs |
| AT14A080-360SPA | 80,000lbs | 360" | 216" | 45° | 2323lbs |
| AT14A090-480SPA | 90,000lbs | 480" | 276" | 60° | 2956lbs |
| AT14A100-168SPA | 100,000lbs | 168" | 108" | 45° | 1317lbs |
| AT14A100-192SPA | 100,000lbs | 192" | 120" | 45° | 1455lbs |
| AT14A100-240SPA | 100,000lbs | 240" | 144" | 45° | 1875lbs |
| AT14A100-360SPA | 100,000lbs | 360" | 216" | 45° | 2733lbs |
| AT14A100-480SPA | 100,000lbs | 480" | 276" | 60° | 3176lbs |
