Thern 5PA10 Series 1200lbs Portable Davit Crane with Winch

Configuration (Capacity, Finish, Winch)

Winch Cable Size, Length & Type

Thern Base Extension for 5PA10 / 5PT10 Portable Davit Cranes

Thern Pedestal Base for 5PA10 / 5PT10 Portable Davit Cranes

Thern Socket Base for 5PA10 / 5PT10 Portable Davit Cranes

Thern Wall-Mount Base for 5PA10 / 5PT10 Portable Davit Cranes

$2,505.00

Contact Sales For Current Lead Times

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Increased vertical height making it great for clearing tall objects
Simple set-up
Specially designed for clearance, lift height, and ergonomic operation
Sheave easily adjusts without tools to 4 different positions
Wide range of height and reach combinations

Customers Also Bought

Description

Features & Specification

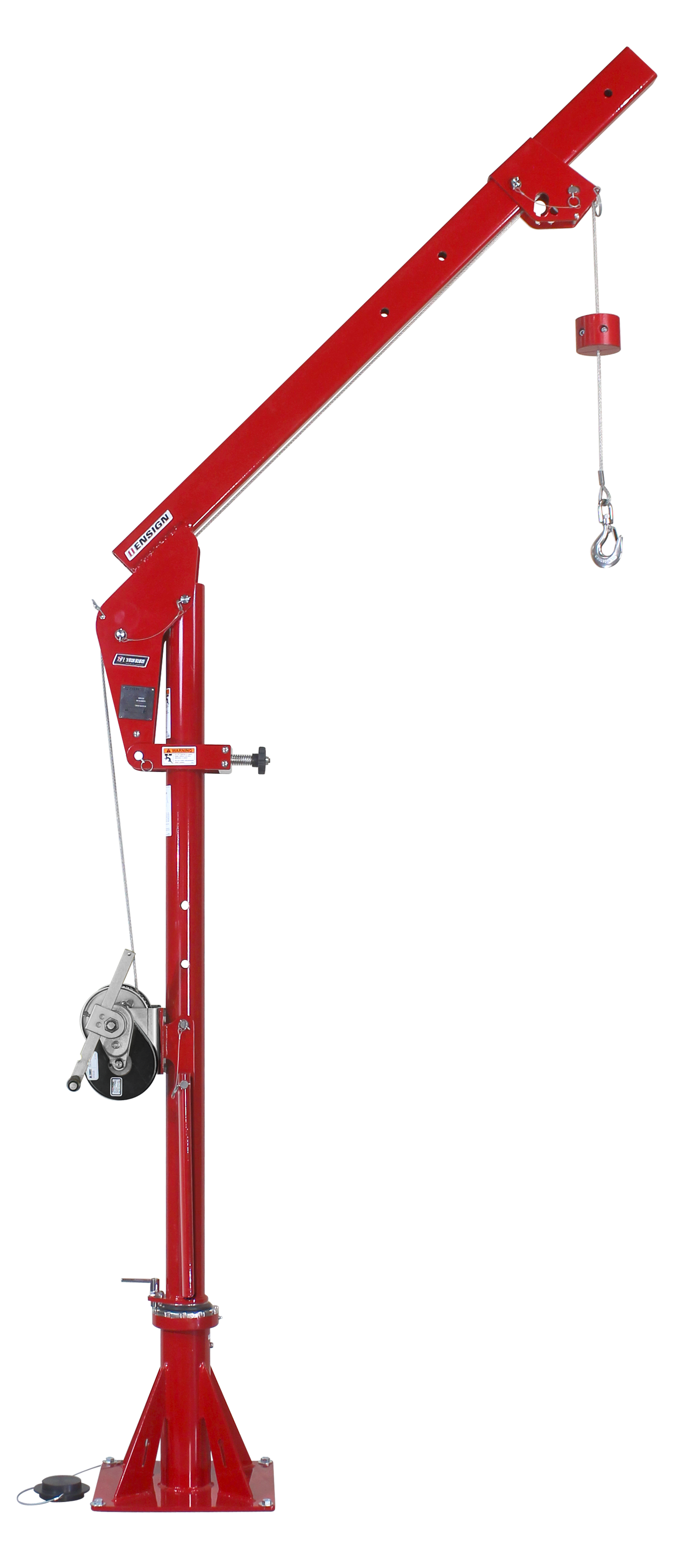

Thern 5PA10 SERIES - Portable Davit Crane

This portable davit crane supplied by Thern Winches & Cranes has a shorter horizontal reach than the Commander Series. The Ensign 1000 features increased vertical hook height for if you need to be clearing tall objects, such as handrails or lifting tall loads.

The Ensign series portable davit cranes from Thern Winches & Cranes are ideal for a range of applications you might have in your workspace. Simple set-up and easy for you and your team to use make this product from Thern a great option for your lifting challenges. This economical series is specially designed for clearance, lift height, and ergonomic operation. Sheave easily adjusts without tools to 4 different positions giving you a wide range of height and reach combinations in your workplace.

Rugged and Affordable
Quick-Mount Winch Bracket
360° Rotation • Manual or Power Winch Operation
Five Corrosion-Resistant Finishes
Easy, No-Tools Assembly/Disassembly
Variety of Bases
2-Year Warranty

Download Manuals

Thern 5PA10 Manual
Thern 5PA10 Data Sheet

Model	Description	Weight (Ibs)
5PA10-M1	up to 1200 lb capacity with M4312PB-K spur gear hand winch - powder coat crane	160
5PA10G-M1	up to 1200 lb capacity with M4312PB-K spur gear hand winch – galvanized crane	160
5PA10-M2	up to 1200 lb capacity with 4WM2V-K worm gear hand winch - powder coat crane	185
5PA10G-M2	up to 1200 lb capacity with 4WM2V-K worm gear hand winch - galvanized crane	185
5PA10S-M3	up to 1200 lb capacity with M4312PBSS-K spur gear hand winch – stainless steel crane	167
5PA10-E2	up to 1200 lb capacity with 4WP2V-K electric winch - powder coat crane	228
5PA10	up to 1200 lb capacity - base model - powder coat finish	143
5PA10G	up to 1200 lb capacity - base model - galvanized finish	143

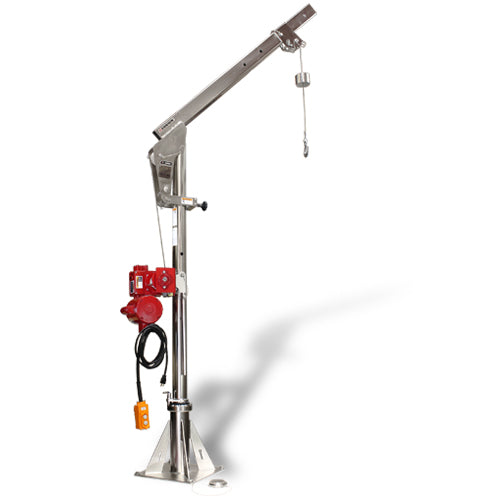

5PA10S	up to 1200 lb capacity - base model - 304 stainless steel finish	143
5PA10S316	up to 1200 lb capacity - base model - 316 stainless steel finish	143
5PA10X	up to 1200 lb capacity - base model - epoxy gray finish	143
M1	M4312PB-K – spur gear hand winch only – zinc plated	17
M2	4WM2V-K – worm gear hand winch only – powder coat	42
M2X	4WM2VEGRA-K – worm gear hand winch only - epoxy gray	42
M3	M4312PBSS-K – spur gear hand winch only – stainless steel	24
E2	4WP2V-K electric winch – 115/1/60 VAC with 6 ft pendant control – enamel	85
E2X	4WP2VEGRA-K electric winch – 115/1/60 VAC with 6 ft pendant control – epoxy gray	85
E4	4777-K electric winch – 115/1/60 VAC with 6 ft pendant control – ename	110
E4X	4777EGRA-K electric winch – 115/1/60 VAC with 6 ft pendant control – epoxy gray	110
E4DC	4777DC-K electric winch – 12 volt DC with 10 ft pendant control – enamel	105
E4DCX	4777DCEGRA-K electric winch – 12 volt DC with 10 ft pendant control – epoxy gray	105
58P10	pedestal base - powder coat finish - upright mount	52
5BP10G	pedestal base - galvanized finish - upright mount	52
5BP10S	pedestal base - 304 stainless steel finish - upright mount	52
5BP10S316	pedestal base - 316 stainless steel finish - upright mount	52
5BP10X	pedestal base - gray epoxy finish - upright mount	52
5BF10	socket base - powder coat finish - flush mount	44
5BF10G	socket base - galvanized finish - flush mount	44
5BF10S	socket base - 304 stainless steel finish - flush mount	44
5BF10S316	socket base - 316 stainless steel finish - flush mount	44
5BF10X	socket base - gray epoxy finish - flush mount	44
5BW10	wall mount base - powder coat finish	48
5BW10G	wall mount base - galvanized finish	48
5BW10S	wall mount base - 304 stainless steel finish	48
5BW10S316	wall mount base - 316 stainless steel finish	48
5BW10X	wall mount base - gray epoxy finish	48
5BE10-15	base extension - powder coat finish	33
5BE10-15G	base extension - galvanized finish	33
5BE10-15S	base extension - 304 stainless steel finish	33
5BE10-15S316	base extension - 316 stainless steel finish	33
5BE10-15X	base extension - gray epoxy finish	33
5PA10LS-EL	limit switch electric	5
