Thern 5PT5 SERIES 650lbs Portable Davit Crane with Winch

Configuration (Capacity, Finish, Winch) | Product Code:

Winch Cable Size, Length & Type

Thern Socket Base for 5PF5 / 5PT5 / 5PA5 Series Portable Davit Cranes

Thern Wall-Mount Base for 5PF5 / 5PT5 / 5PA5 Series Portable Davit Cranes

Thern Pedestal Base for 5PF5 / 5PT5 / 5PA5 Series Portable Davit Cranes

$1,706.00

Contact Sales For Current Lead Times

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Great for a variety of lifting applications
Can operate via electric, hydraulic, and pneumatic
360 ° rotation
Easy to use with no tools required
Quick assembly and disassembly
Choose crane finish and winch type
Choose from a variety of bases
Choose winch cable size, length, and type
2-Year standard warranty

Customers Also Bought

Description

Features & Specification

Thern 5PT5 SERIES - Portable Davit Crane

Portable davit cranes are ideal for a number of lifting applications thanks to the adjustable boom angle and sheave block. You can use this product in a number of ways that include electric, hydraulic, and pneumatic operation. For the winch, you have the option to operate the winch manually or through power. The roller bearing allows for the portable davit crane to give you easy 360° rotation when using.

Thanks to the design of the Thern portable davit crane it's easy to use with no tools and quick assembly/disassembly once the base is in place. You can get the product with a variety of bases to support what you need the portable davit crane to do.

How to Buy a Thern Commander 5PT5 Davit Crane:

Choose your crane finish (Powder Coat, Galvanized or Stainless Steel 304) and winch-type
Choose your base type (this features the same finish as the crane)
Choose your cable size, length, and type

Winch Types:

M1 = Spur Gear Hand Winch (M4022PB-K)

M2 = Worm Gear Hand Winch (4WM4-K)

M3 = Stainless Steel Hand Winch (M4042PBSS-K)

E2 = 115v-1ph-60hz Electric Winch With 6ft Pendant Control (enamel finish) (4WP2-K)

Light and portable
Adjustable Boom Angle
Adjustable Sheave Block
Optional Upgrade: Roller Bearing for Easy 360° Rotation
Manual or Power Winch Operation
Choose your desired finish- Powder Coat, Galvanized or Stainless Steel 304 (call for 316)
Easy, Assembly/Disassembly
Choose from a variety of base types
2-Year Warranty

Download Manuals

Thern 5PT5 Commander 500 Cut Sheet

Model	Description	Weight (Ibs)

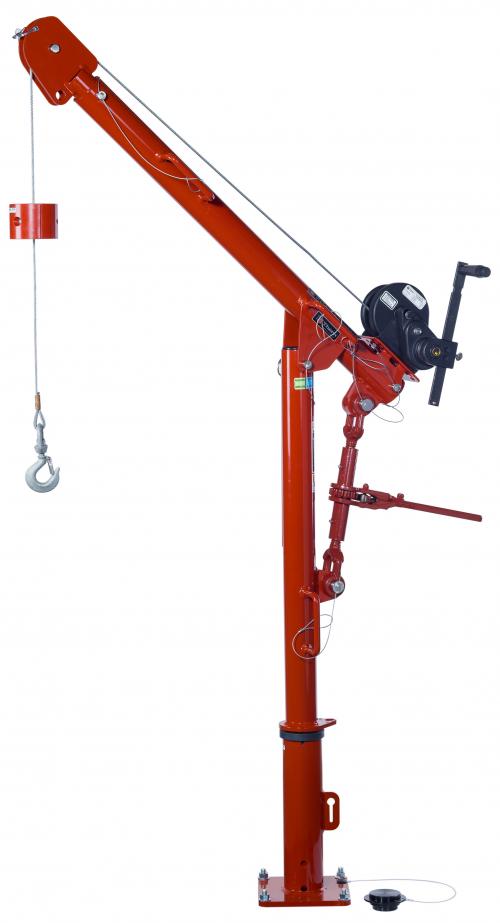

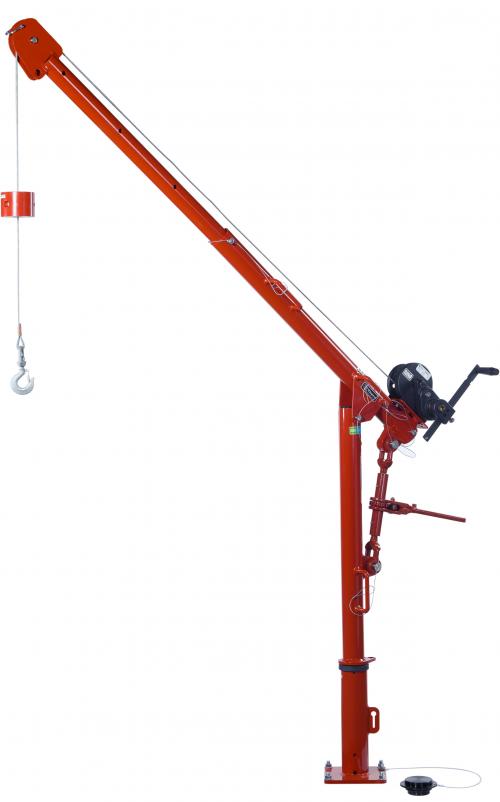

5PT5-M1	up to 650 lb capacity with M4022PB-K spur gear hand winch - powder coat crane	102
5PT5G-M1	up to 650 lb capacity with M4022PB-K spur gear hand winch – galvanized crane	102

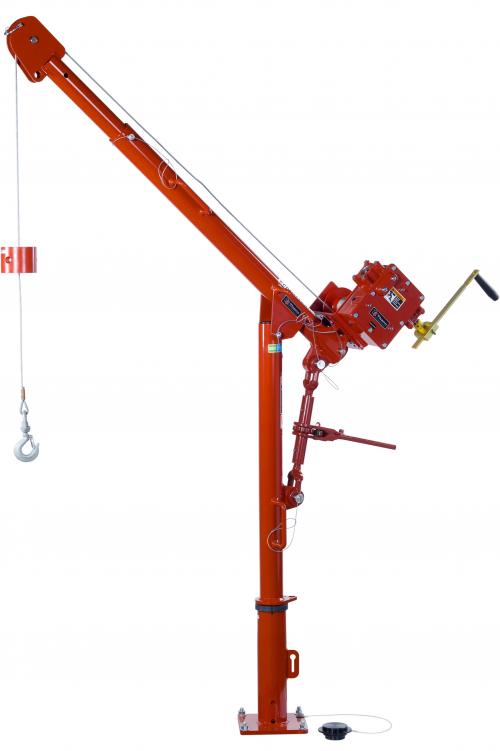

5PT5-M2	up to 650 lb capacity with 4WM2-K worm gear hand winch - powder coat crane	123
5PT5G-M2	up to 650 lb capacity with 4WM2-K worm gear hand winch - galvanized crane	123
5PT5S-M3	up to 650 lb capacity with M4042PBSS-K spur gear hand winch – stainless steel crane	110

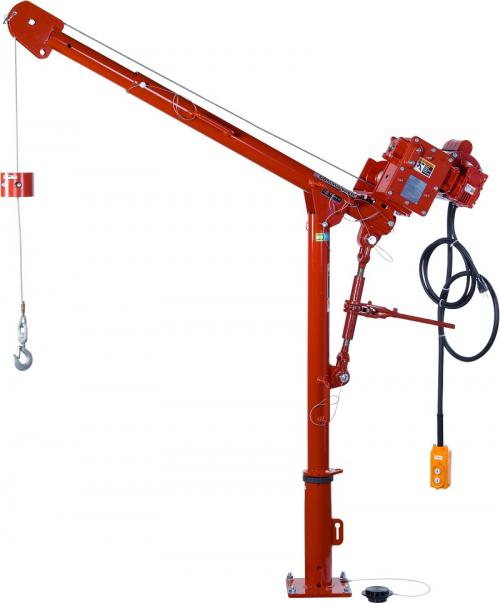

5PT5-E2	up to 650 lb capacity with 4WP2-K electric winch - powder coat crane	158
5PT5	up to 650 lb capacity - base model - powder coat finish	86
5PT5G	up to 650 lb capacity - base model - galvanized finish	86
5PT5S	up to 650 lb capacity - base model - 304 stainless steel finish	86
5PT5S316	up to 650 lb capacity - base model - 316 stainless steel finish	86
5PT5X	up to 650 lb capacity - base model - epoxy gray finish	86
M1	M4022PB-K – spur gear hand winch only – black defender coating	16
M2	4WM2-K – worm gear hand winch only – powder coat	37
M2X	4WM2EGRA-K – worm gear hand winch only - epoxy gray	37
M3	M4042PBSS-K – spur gear hand winch only – stainless steel	24
E2	4WP2-K electric winch – 115/1/60 VAC with 6 ft pendant control – enamel	72
E2X	4WP2EGRA-K electric winch – 115/1/60 VAC with 6 ft pendant control – epoxy gray	72
E4	4777-K electric winch – 115/1/60 VAC with 6 ft pendant control – ename	96
E4X	4777EGRA-K electric winch – 115/1/60 VAC with 6 ft pendant control – epoxy gray	96
E4DC	4777DC-K electric winch – 12 volt DC with 10 ft pendant control – enamel	114
E4DCX	4777DCEGRA-K electric winch – 12 volt DC with 10 ft pendant control – epoxy gray	114
5BP5	pedestal base - powder coat finish - upright mount	20
5BP5G	pedestal base - galvanized finish - upright mount	20
5BP5S	pedestal base - 304 stainless steel finish - upright mount	20
5BP5S316	pedestal base - 316 stainless steel finish - upright mount	20
5BP5X	pedestal base - gray epoxy finish - upright mount	20
5BF5	socket base - powder coat finish - flush mount	20
5BF5G	socket base - galvanized finish - flush mount	20
5BF5S	socket base - 304 stainless steel finish - flush mount	20
5BF5S316	socket base - 316 stainless steel finish - flush mount	20
5BF5X	socket base - gray epoxy finish - flush mount	20
5BW5	wall mount base - powder coat finish	22
5BW5G	wall mount base - galvanized finish	22
5BW5S	wall mount base - 304 stainless steel finish	22
5BW5S316	wall mount base - 316 stainless steel finish	22
5BW5X	wall mount base - gray epoxy finish	22
5BR5	wheel base – powder coat finish	80
5BR5X	wheel base - epoxy gray finish	80
