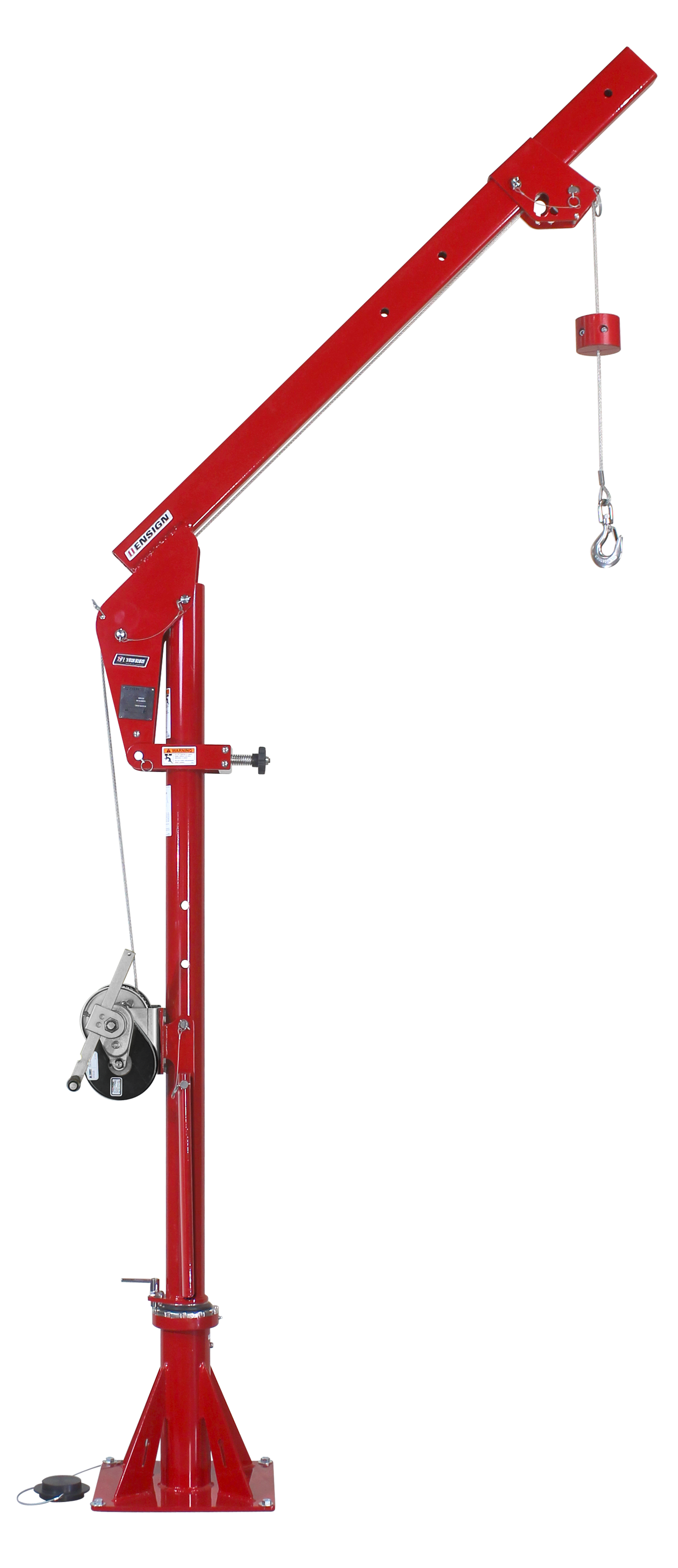

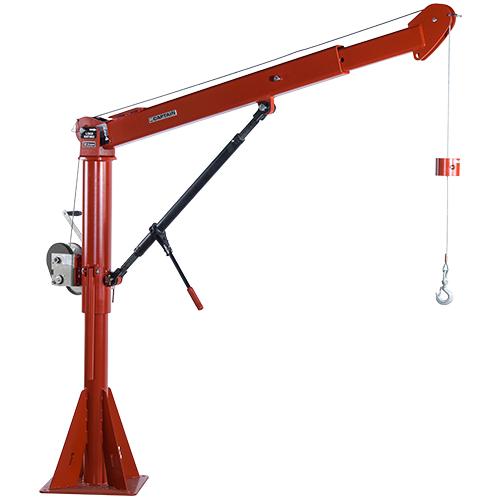

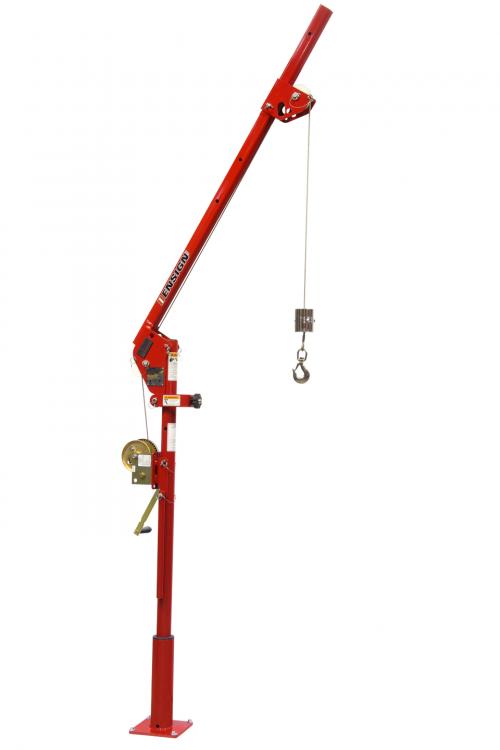

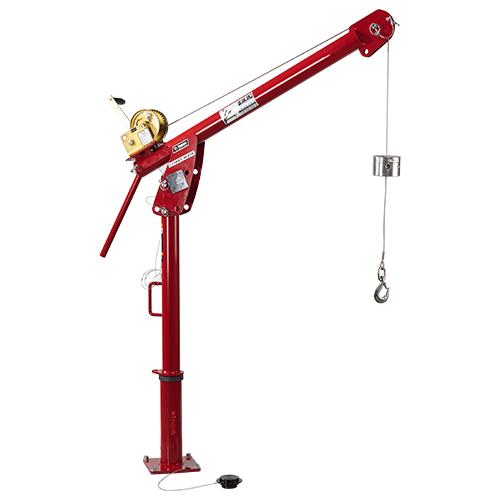

Thern 5PA5 Series 500lbs Portable Davit Crane with Winch

Configuration (Capacity, Finish, Winch) | Product Code:

Winch Cable Size, Length & Type

Thern Pedestal Base for 5PF5 / 5PT5 / 5PA5 Series Portable Davit Cranes

Thern Socket Base for 5PF5 / 5PT5 / 5PA5 Series Portable Davit Cranes

Thern Wall-Mount Base for 5PF5 / 5PT5 / 5PA5 Series Portable Davit Cranes

$1,501.00

Contact Sales For Current Lead Times

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Quick mount winch bracket
Includes spur gear manual winch with brake
500Lbs Capacity
Powder-Coated
Choose base type in the drop-down menu

Customers Also Bought

Description

Features & Specification

The Thern 5PA5 Series is a great portable crane that is ideal for a number of various applications. You can get set-up with the product with ease thanks to its simple set-up. Once you have it set-up it's easy to use similar to the other series of Portable Davit Cranes we have available by Thern on the LES USA store. Simply select your desired base type from the drop-down menu, choose your winch cable type here and you're set!

This economical series from Thern is specially designed for clearance, lift height, and ergonomic operation. It comes with an adjustable boom angle and sheave block that allows it to be a versatile product. You can expect to have easy 360° rotation with this version of the Thern portable davit crane.

With a 2 year warranty, you can be assured you'll have a high-quality portable davit crane to handle all your lifting and heavy moving challenges.

*Does not include wire rope- see 'Customers Also Bought' products below. Use 3/16" or 1/4" wire rope depending on the application- see the cut sheet page 6 in the 'Downloads' tab above.

Maximum reach 36", Maximum height 101"

Winch Cable Specifications

Download Manuals

Thern 5PA5 Cutsheet

Ensign® 500 Lift Below Floor Level2
Lift Below Floor Level1				Wire Rope Diameter		Wire Rope Length3		Winch Configurations
Min Pos B4		Max Pos B1						M1 (this model)	M2	M3	E2
(ft)	(m)	(ft)	(m)	(in)	(mm)	(ft)	(m)
0	0	5	1.5	3/16	4.8	20	6.0	•	—	•	—
8	2.4	13	3.9	3/16	4.8	28	8.5	•	—	•	—
16	4.8	21	6.4	3/16	4.8	36	10.9	•	—	•	—
25	7.6	30	9.1	3/16	4.8	45	13.7	•	—	•	—
40	12.1	45	13.7	3/16	4.8	60	18.2	—	—	•	—
55	16.7	60	18.2	3/16	4.8	75	22.8	—	—	•	—
0	0	5	1.5	1/4	6.4	20	6.0	—	•	•	•
8	2.4	13	3.9	1/4	6.4	28	8.5	—	•	•	•
16	4.8	21	6.4	1/4	6.4	36	10.9	—	•	•	•
25	7.6	30	9.1	1/4	6.4	45	13.7	—	•	•	•
1 Lift below floor level varies depending on boom position and base configuration. For longer lifts, please contact factory. 2 Performance Characteristics are for standard products referred to in the owner’s manual. Non-standard products may vary from the original design. Contact Thern, Inc. for this information. 3 Wire rope assemblies include a hood and swaged ball fitting to work with quick-disconnect anchor on winches, cable spooler and wire rope keeper. 316SS wire rope is also available. Please contact the factory.

Pedestal Mount Performance Ratings2
Boom Position	Load Rating		Hook Reach		Hook Height
	(lb)	(kg)	(in)	(mm)	(in)	(mm)
A-1	500	226	17	431	74	1879
A-2	400	181	22	558	79	2006
A-3	300	136	28	711	87	2209
A-4	250	113	36	914	96	2438
B-1	500	226	14	355	76	1930
B-2	400	181	17	431	83	2108
B-3	300	136	22	558	91	2311
B-4	250	113	28	711	101	2565

1 Lift below floor level varies depending on boom position and base configuration. For longer lifts, please contact factory. 2 Performance Characteristics are for standard products. Non-standard products may vary from the original design. Contact Thern, Inc. for this information.

Flush/Wall Mount Performance Ratings2
Boom Position	Load Rating		Hook Reach		Hook Height
	(lb)	(kg)	(in)	(mm)	(in)	(mm)
A-1	500	226	17	431	60	1524
A-2	400	181	22	558	65	1651
A-3	300	136	28	711	73	1854
A-4	250	113	36	914	82	2082
B-1	500	226	14	355	62	1574
B-2	400	181	17	431	69	1752
B-3	300	136	22	558	77	1955
B-4	250	113	28	711	87	2209

1 Lift below floor level varies depending on boom position and base configuration. For longer lifts, please contact factory. 2 Performance Characteristics are for standard products. Non-standard products may vary from the original design. Contact Thern, Inc. for this information.

Light and portable
Adjustable Boom Angle
Adjustable Sheave Block
Quick-Mount Winch Bracket
Roller Bearing for Easy 360° Rotation
Manual winch included
Powder-coated finish
Easy, No-Tools Assembly/Disassembly
Variety of Bases to choose from (use the drop-down menu)
Roller Bearing for Easy 360° Rotation
Easy to assemble and dissemble
2-Year Warranty

Note : You must purchase the wire rope separately via the 'Customers Also Bought' area below. The wire rope specification can be determined by using the cut sheet in the 'Downloads' area above.

Model

Description

Weight (Ibs)

5PA5-M1

up to 500 lb capacity with M4022PB-K spur gear hand winch - powder coat crane

*Does not include winch cable

82
